Power Module Overview
Adopting advanced power module design, the H3C S5800-60C-PWR Ethernet switch features the
following:
Adopting hot swappable power module design, each switch providing two hot swappable power
module slots, as shown in
Supporting different models of hot swappable power modules. For details, see
Supporting combination of different hot swappable power modules. Users can select them as
needed. For details, see

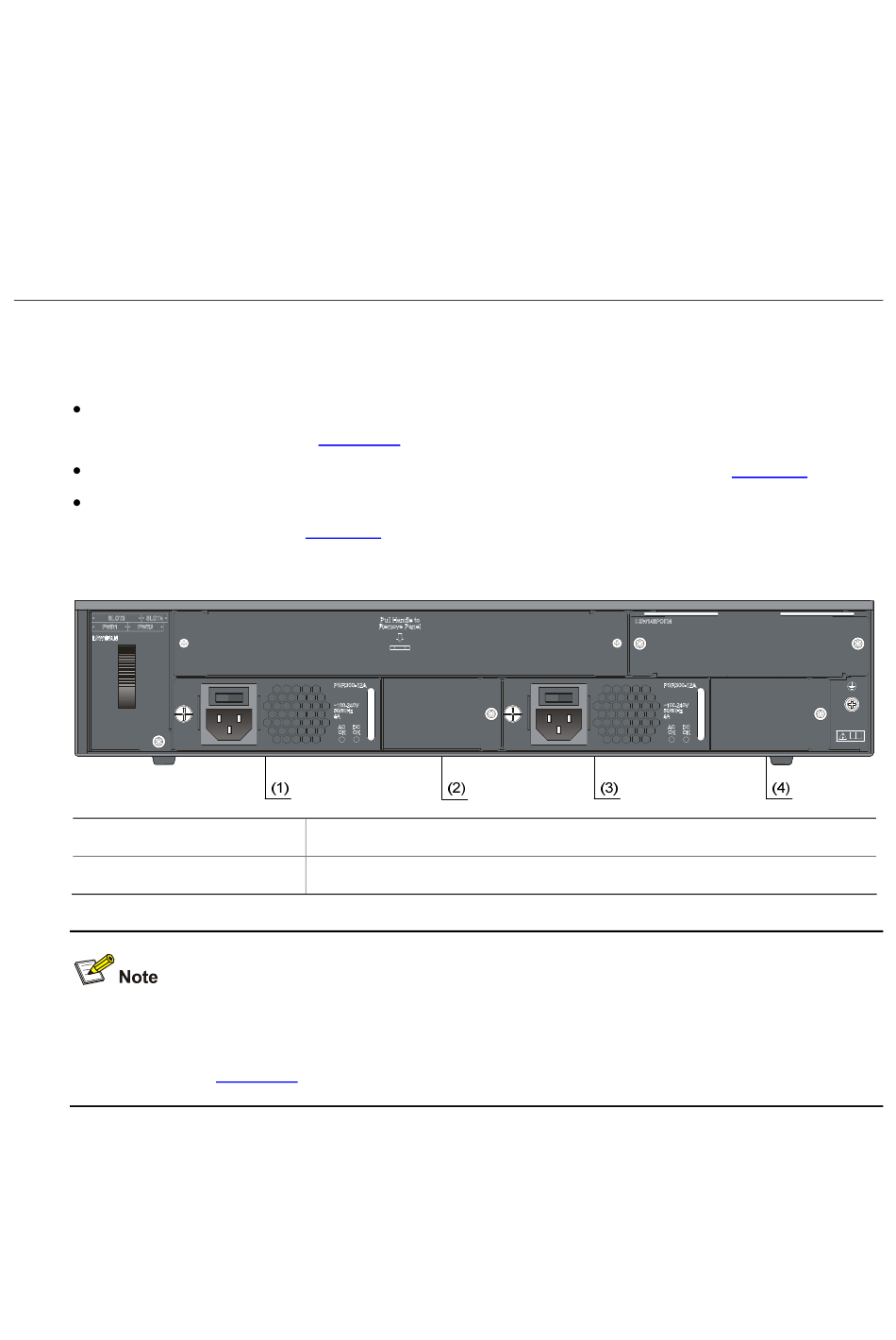

Figure 1-1 Location of power modules on an S5800-60C-PWR switch (rear panel)
(1) Hot swappable power
module 1
(3) Hot swappable power
module 2
The S5800-60C-PWR provides two power module slots on its rear panel. Hot swappable power
module slot 1 is empty when the switch is shipped, and hot swappable power module slot 2 is installed
with a filler panel.
Module Ordering Guide
Figure 1-1.
Table 2-1.
(2) Filler module (Remove the module when hot swappable power module 1
is a 750 W power module.)
(4) Filler module (Remove the module when hot swappable power module 2
is a 750 W power module.)
Figure 1-1 illustrates a switch with two PSR300-12A AC power modules.
