Webasto 5012145 Manual

Webasto 5012145 Manual

Promaster city oakland standard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ProMaster City
Standard

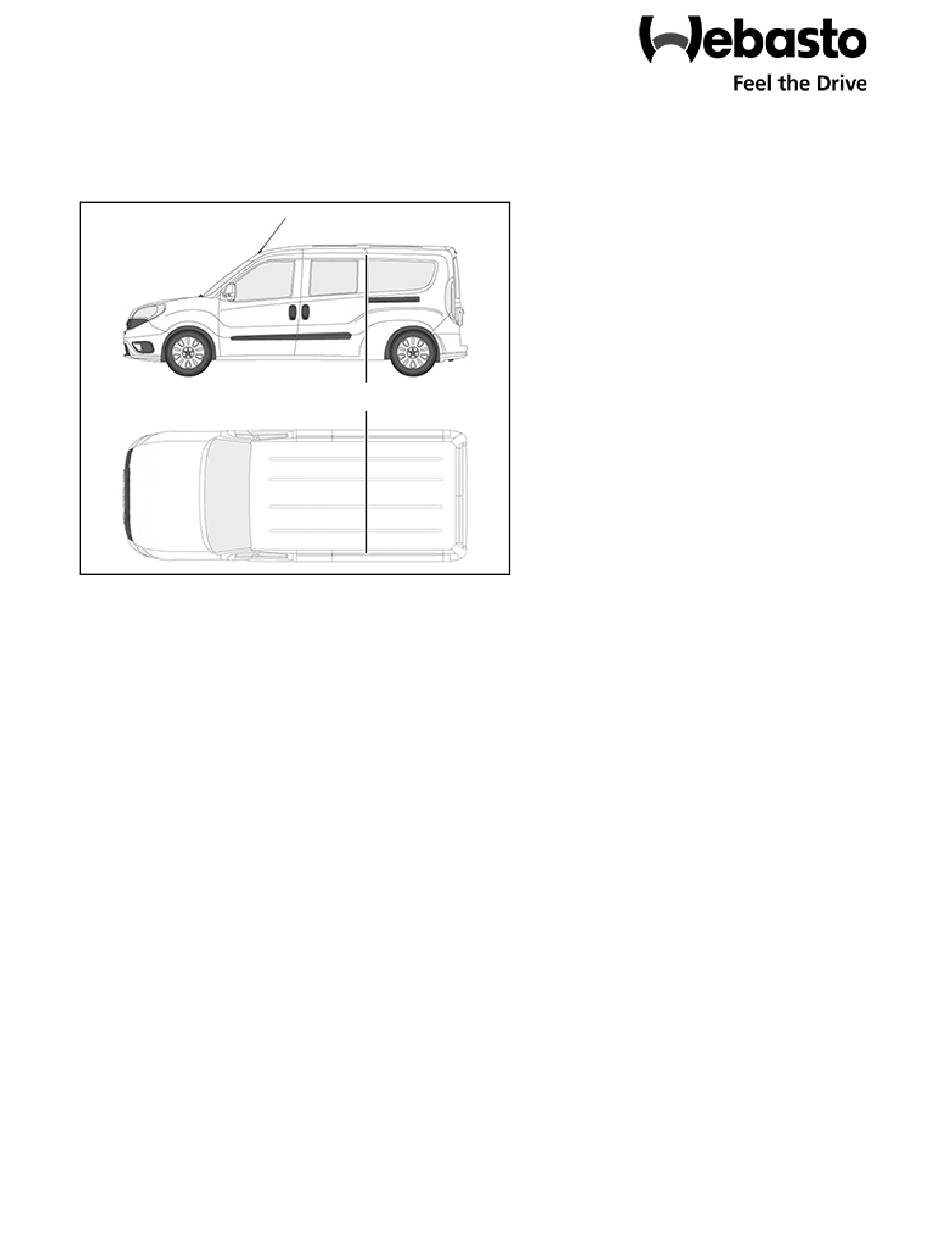

Legend
1 Oakland VAC unit Assembly
Special Tools
– Hose-clamping pliers
– Hole saw kit
– Refrigerant recovery and recharging machine
DOC P/N 5012165B
KIT P/N 5012145
Oakland
1
Printed in USA
Webasto Thermo & Comfort N.A., Inc.
Ram ProMaster City
2015 - Present 2.4 Liter
For kit number 5012145
Special instructions for these models
Part locations may differ slightly dependent
on the vehicle-specific configuration.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5012145 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Webasto 5012145

Summary of Contents for Webasto 5012145

  • Page 1 Legend 1 Oakland VAC unit Assembly Special Tools – Hose-clamping pliers – Hole saw kit – Refrigerant recovery and recharging machine DOC P/N 5012165B KIT P/N 5012145 Printed in USA Webasto Thermo & Comfort N.A., Inc.
  • Page 2 – Installation and repair of Webasto heating and cooling systems requires special Webasto training, technical information, special tools and special equipment. – NEVER attempt to install or repair Webasto heating or cooling system unless you have the proper certifications, technical skills, tools, and equipment required to properly complete the necessary procedures.

  • Page 3: Table Of Contents

    Ram ProMaster City Oakland Table Of Contents Kit Contents ......... 4 Introduction .

  • Page 4: Kit Contents

    Oakland Ram ProMaster City Kit Contents for Kit #5012145 Item Description Quantity Number AC Int Oakland 12V Black 4 kW HOSE DRAIN 0.375 ID 0.625 OD 15 feet MOUNTING PLATE LONDON PROMASTER BRACKET ANGLE MOUNTING OAKLAND BRACKET MOUNTING OAKLAND RH...
  • Page 5 Ram ProMaster City Oakland SCREW 4.2 X 16MM SELF DRILLING BLACK SCREW PAN HD 10-16ST x 1 SELF DRILLING SCREW SELF DIRLLING 0.25 X 1 INCH ROHRSCHELLE 29 CABLE TIE 11 INCH BLACK Man AC Control Regulator Ventil. Aura Diffuser Phoenix 4 Grilles D67 HARNESS OAKLAND PROMASTER CITY TIEIN PLUG FUSE ATM-APM MINI ADD-A-CIR-...
  • Page 6 Oakland Ram ProMaster City FITTING TEE 0.375 INCH PLASTIC BARB FITTING REFRIG 45 -10THD TO -10H FITTING REFRIGERANT 180 -06THD - 06HOSE FITTING REFRIGERANT 45 -06THD -06HOSE SCREW HEX HEAD M6X55 ISO4014 ZN 8.8 WARRANTY STATEMENT AC REFRIGERANT HOSE BURGAFLEX H-06- 18 feet 3090-R REFRIGERANT HOSE BURGAFLEX H-10-...
  • Page 7 Ram ProMaster City Oakland ANTI COND TAPE M9ROL OE 1 meter TEE BLOCK REFRIGERANT PROMASTER CITY WASHER FLAT M6x12x1.6 ZP (DIN 125-1 BOLT HEX HD M6x14 EDGE TRIM 0.125X0.5 INCH - 2FT...
  • Page 8 Oakland Ram ProMaster City...

  • Page 9: Introduction

    Failure to properly flush, purge, or pressure test a system for leaks can result in serious injury or death from explosion, fire or contact with acid-saturated refrigerant or oil mists. Webasto recommends that the system be serviced using a flush and purge station such as a Robinair ®...

  • Page 10: Scope

    Location of the Webasto provided components, wiring and control devices are important for proper operation. Failure to comply with the installation instructions provided may result in poor operation or damage to the Webasto unit, the vehi- cle, or vehicle components.

  • Page 11: Safety

    609 of the Clean Air Act and that all refrigerant be reclaimed and recycled. Vehicle operation must not be impaired due to any Webasto installed components. All power circuits must be fused with an appropriate fuse or circuit breaker.

  • Page 12: General References

    Oakland Ram ProMaster City General References • Bare body parts, around drilled holes for example, must be treated with an anti-corrosive coating. • Secure hoses, cables and wiring harnesses with cable ties and fit protective hoses around them at chafing points.

  • Page 13: Oakland Kit Components Installation

    Ram ProMaster City Oakland Oakland Kit Components Installation 4. Insert the two threaded plates (3) in the roof support braces as shown. NOTE: Left side shown, right side similar. 5. Install the rubber bumpers (7) into the left (6) and right (5) Oakland brackets using the provided nuts (8).
  • Page 14 Oakland Ram ProMaster City 7. Install the Oakland bracket assembly onto the threaded plates using two M6 bolts (10). 8. Install the Oakland unit in the bracket assembly using two M6 bolts (36) and two flat washers (35). 9. Adjust the position of the Oakland unit and tighten all the fasteners.

  • Page 15: Electrical Installation

    Ram ProMaster City Oakland Electrical Installation Components required for electrical installation: Item Description Quantity Number SCREW PAN HD 10-16ST x 1 SELF DRILLING HARNESS OAKLAND PROMASTER CITY TIEIN MAN AC CONTROL REGULATOR VENTIL. AURA PLUG FUSE ATM-APM MINI ADD-A-CIRCUIT FUSE MINI 10 AMP RED CABLE TIE 11 INCH BLACK As required EDGE TRIM 0.125X0.5 INCH - 2FT...
  • Page 16 Oakland Ram ProMaster City 10. Remove the protective plate from the left rear door opening. 11. Attach the relay under the driver’s seat using a self-tapping screw (12). 12. Route the following portions of the wiring harness to the area under the instrument panel: •...
  • Page 17 Ram ProMaster City Oakland 13.Drill a 5/8 in (16 mm) hole in the existing rubber grommet in the firewall. Route the main power and ground wires through the grommet. 14.Route the blower motor portion of the harness toward the rear of the vehicle and through the access hole in the floor panel.
  • Page 18 Oakland Ram ProMaster City NOTE: The location of the hole is not critical. 16.Drill a 7/16 in (11 mm) hole, approximately centered in the fuse panel cover, and mount the controller decal and controller (16). NOTE: Due to production differences, fuse panels may not be identical to this image.
  • Page 19 Ram ProMaster City Oakland 19. Connect the black ground cable to the battery ground terminal. 20. Insert the power wire from the harness (18) and the red jumper wire into the fuse holder. This is not polarity sensitive. Connect the red power wire to the battery positive terminal.

  • Page 20: A/C Hose Crimping

    Oakland Ram ProMaster City A/C Hose Crimping NOTE: The proper method for crimping A/C hoses is outlined below. Refer to these steps if you are unfamiliar with making A/C hoses. A. Using blade-type hose cutters, cut the hose in one cut. The cut edge must be clean and flush. B.
  • Page 21 Ram ProMaster City Oakland D. Lubricate the fitting with PAG oil and insert the fitting until the shoulder of the fitting is touching the clip holder. E. Using Oetiker pliers, crimp the clips closed.

  • Page 22: Hose Installation

    Oakland Ram ProMaster City Hose Installation Components required for hose installation: Item Description Quantity Number CABLE TIE 11 INCH BLACK As required EDGE TRIM 0.125X0.5 INCH - 2FT As required TEE BLOCK REFRIGERANT PROMASTER CITY SCREW HEX HEAD M6X55 ISO4014 ZN 8.8 REFRIGERANT HOSE BURGAFLEX H-06-3090-R 18 feet REFRIGERANT HOSE BURGAFLEX H-10-3090-R...
  • Page 23 Ram ProMaster City Oakland 23.Unbolt the ECM bracket from the vehicle and set it aside. 24. Remove the stud securing the A/C manifold to the TXV. Set the A/C manifold aside. NOTE: Lubricate the o-rings with PAG oil before assembly. 25.Using the M6 bolt (26), install the T-block assembly (34) between the factory TXV and the A/C manifold.
  • Page 24 Oakland Ram ProMaster City 26. Remove the rubber grommet from the factory wiring harness and install edge trim (37). 27. Route the #6 (28) and the #10 (29) A/C hoses through the hole in the floor and into the engine compartment. 28.
  • Page 25 Ram ProMaster City Oakland NOTE: Use a wrench to hold the Oakland fit- tings. Failure to so can cause damage to the Oakland unit. 29.Using the 45º #10 fitting (23), connect the low-pressure hose to the Oakland unit. NOTE: Use a wrench to hold the T-block fit- tings.
  • Page 26 Oakland Ram ProMaster City 32. Wrap the low-pressure A/C fitting at the Oakland unit with anti-condensation tape (33). 33. Wrap the low-pressure hose in foam insulation (30) to the point where it exits the vehicle. 34. Using provided cable ties (15), p-clips (14, 21) and self-taping screws (13), secure the hoses and wiring harness as required.
  • Page 27 Ram ProMaster City Oakland 35. Drill a 3/4 inch (19 mm) hole in the splash shield to allow the drain hose to pass through. After installing the splash shield cut the drain hose about 1 inch (24 mm) below the splash shield. 36.

  • Page 28: Initial Start

    Oakland Ram ProMaster City Initial Start Required parts for the initial start: Item Part Number Description Quantity Number 5012179 REFRIGERANT LABEL CHARGE 1.8 LBS 38. Recharge the vehicle per the manufacturer’s procedures using the chart below. Item Type Quantity Lubricant Manufacturer’s specification 2 additional ounces Refrigerant...

  • Page 29: Wiring Diagram

    Ram ProMaster City Oakland Wiring Diagram...
  • Page 30 Oakland Ram ProMaster City...
  • Page 31 Ram ProMaster City Oakland...
  • Page 32 Webasto Thermo & Comfort N.A., Inc. Technical Assistance Hotline USA: (800) 555-4518 Canada: (800) 667-8900 www.webasto.us Org.7/2016 Rev. 10/2021 P/N 5012165B www.techwebasto.com...
