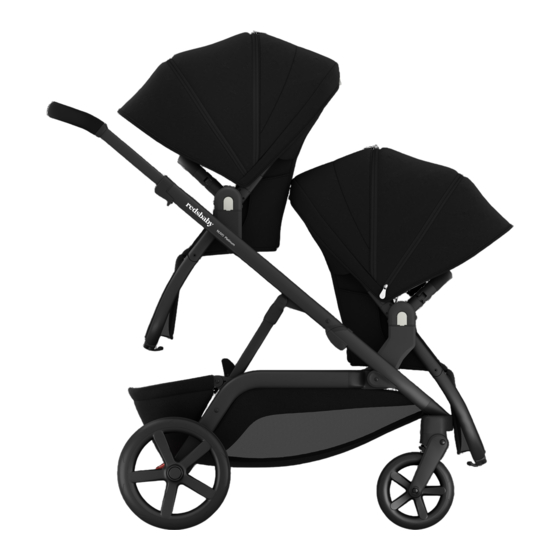

Redsbaby NUVO Double Mode Product Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
twins), to carrying a third on a buggyboard, the NUVO
Pram grows with your family across 18 configurations.
You're ready from day one.
BETTER
TOGETHER
NUVO
Double Mode
®
Product Guide
From single to double (including
SINGLE TO
DOUBLE PRAM

Advertisement

loading
Need help?

Need help?

Do you have a question about the NUVO Double Mode and is the answer not in the manual?

Questions and answers

Related Manuals for Redsbaby NUVO Double Mode

Summary of Contents for Redsbaby NUVO Double Mode

  • Page 1 From single to double (including twins), to carrying a third on a buggyboard, the NUVO Pram grows with your family across 18 configurations. You’re ready from day one. BETTER SINGLE TO TOGETHER DOUBLE PRAM NUVO Double Mode ® Product Guide...
  • Page 2 For your journey ® REDSBABY.COM.AU...
  • Page 3 Our products are designed in Australia for our unique lifestyle. They are as functional as they are beautiful, serving our core purpose to enrich your family journey. CELEBRATING HEAD-TURNING HOMEGROWN STYLE NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 4 Triple mode with buggyboard /23/ Features and components /24/ Assembling the bassinet /28/ Assembling the seat /34/ Setting up NUVO in double mode /38/ Upper frame adaptors /38/ Lower frame adaptors /38/ Bassinet and seat /39/ Two seats /40/ REDSBABY.COM.AU...
  • Page 5 /42/ Folding /43/ Unfolding /45/ Using the 5-point safety harness /46/ Removing the bassinet/ seat /48/ Lifting and carrying safely /49/ Using the seat /50/ Warranty information /52/ For future /54/ ® Company information /55/ NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 6 Scan to Watch How-to and assembly videos available at redsbaby.com.au REDSBABY.COM.AU...
  • Page 7 Your NUVO frame is compatible with the NUVO seat and bassinet only. Do not use your NUVO frame with any other model of pram, seat or bassinet. NUVO DOUBLE MODE PRODUCT GUIDE...

  • Page 8: Product Care

    The brakes and wheels are subject to wear and should be replaced when necessary. Brakes are available by contacting our Customer Care team at info@redsbaby.com.au. • Should any parts of the NUVO become stiff or difficult to operate, ensure that dirt is not the cause. Sparingly apply a silicone spray lubricant to penetrate the components.

  • Page 9: Cleaning Instructions

    Always dry plastic and metal parts if they become wet. FABRICS • Sponge lightly with warm water and a mild detergent, and air dry. • Follow the care label to prolong the life of the fabric. NUVO DOUBLE MODE PRODUCT GUIDE...

  • Page 10: Safety Standards

    Safety standards Redsbaby NUVO is designed to comply with AS 2088:2022 and CPN No.8 of 2007. REDSBABY.COM.AU...

  • Page 11: Warnings And Safety Precautions

    After unpacking, immediately discard packaging materials, as these can become a choking hazard. Always use the safety features that come with your NUVO, such as the tether strap, brakes and harness. NUVO DOUBLE MODE PRODUCT GUIDE...

  • Page 12: General Warnings

    • Do not leave children unattended. • Secure the child in the harness at all times. • Do not carry extra children or bags on the Redsbaby NUVO. • • Make sure children are clear of any moving parts if...
  • Page 13 • We recommend you do not use the Redsbaby NUVO on stairs, as this may damage the frame and lead to breakage. • Do not use or leave the Redsbaby NUVO near open fire or exposed flames. • Brakes must always be applied when the Redsbaby NUVO is not moving.
  • Page 14 • The Redsbaby NUVO Bassinet is only approved for use with the Redsbaby NUVO Pram. • The Redsbaby NUVO Seat is only approved for use with the Redsbaby NUVO Pram. • Maximum weight for a child in the bassinet is 9kg (19.8lbs).

  • Page 15: General Safety Precautions

    • The Redsbaby NUVO can be used for three (3) children when used with the Redsbaby Buggyboard. • Do not hang bags on the Redsbaby NUVO handles, as this can cause it to become unstable. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 16 • Do not lift or carry the Redsbaby NUVO when a child is in it. • Do not lift or carry the Redsbaby NUVO when fully assembled. Only lift and carry when folded. • The Redsbaby NUVO is designed for use on flat or gentle sloping surfaces and may be unstable on higher sloping and uneven surfaces.
  • Page 17 • Do not allow child to stand while in the second seat. • Always push the pram/stroller with two hands. • Never leave a child in the Redsbaby NUVO when ascending or descending stairs or using on an escalator.
  • Page 18 BASKET MAXIMUM WEIGHT For items in the basket is 12kg (26.5 lbs). BUGGY BOARD MAXIMUM WEIGHT Maximum weight for a child on the buggyboard is 20kg (44.1 lbs). BABY CAPSULE Maximum weight for a child in the baby capsule is 13kg (28.6lbs). REDSBABY.COM.AU...
  • Page 19 Supported configurations NUVO DOUBLE MODE PRODUCT GUIDE NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 20 Single mode IMPORTANT DO NOT use any configurations other than those shown in this product guide. Using non-approved configurations may cause a hazardous unstable condition and lead to injury. Bassinet Upper position Parent-facing Middle position Parent-facing REDSBABY.COM.AU...
  • Page 21 Capsule Capsule IMPORTANT DO NOT use the capsule in the upper position in single mode as it may cause the pram to become unstable. ONLY USE THE CAPSULE IN THE MIDDLE POSITION. Middle position Parent-facing NUVO DOUBLE MODE PRODUCT GUIDE...

  • Page 22: Double Mode

    Bassinet Lower position Bassinet Lower position Bassinet Lower position parent-facing parent-facing parent-facing Seat Seat Upper position Seat Upper position Seat Upper position parent-facing parent-facing world-facing Seat Lower position Seat Lower position Seat Lower position parent-facing world-facing world-facing REDSBABY.COM.AU...
  • Page 23 Note: Some capsules are not compatible in this configuration. Triple mode with buggyboard Seat Upper position Seat Upper position Seat Upper position world-facing parent-facing world-facing Seat Lower position Bassinet Lower position Bassinet Lower position world-facing parent-facing parent-facing NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 24 Features and components CANOPY BUMPER BAR SEAT FABRIC 5-POINT SAFETY HARNESS LOWER BASSINET/ SEAT ADAPTORS BASSINET/ SEAT FRAME CANOPY BUMPER BAR BASSINET APRON BASE FABRICS NOTE: THE BASSINET AND SEAT SHARE THE SAME FRAME, BUMPER BAR AND CANOPY REDSBABY.COM.AU...
  • Page 25 NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 26 UPPER POSITION MIDDLE POSITION LOWER POSITION UPPER MIDDLE LOWER REDSBABY.COM.AU...
  • Page 27 UPPER/ MIDDLE FRAME ADAPTORS LOWER FRAME ADAPTORS NUVO DOUBLE MODE PRODUCT GUIDE...

  • Page 28: Assembling The Bassinet

    Note: You can identify the foot end of the bassinet base fabric as it does not have a mesh panel. REDSBABY.COM.AU...
  • Page 29 NOTE The bassinet can only be used in the lower position in double mode. 3. Repeat step 2 on the head end of the bassinet/ seat frame. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 30 Slot each end of the support rod into the keyhole. Note: The rod ends are shaped like a key and can only slot into the holes in one direction. 5. Repeat with the second support rod on the opposite side. REDSBABY.COM.AU...
  • Page 31 6. Pull the support rods backwards into place. Once assembled correctly, your bassinet will sit rigid and upright. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 32 7. Position the bassinet mattress inside. 8. Zip the apron onto the foot end. 9. Attach the canopy and bumper bar. REDSBABY.COM.AU...
  • Page 33 2. Pull the support rods out of the keyholes on the bassinet/ seat frame by rotating to align with the keyhole and pulling outwards. 3. Remove the base fabric by unzipping from the bassinet/ seat frame. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 34 These will come assembled as one piece. 1. Separate the seat back fabric from the footrest fabric. 2. Take the bassinet/ seat frame and click it into the pram frame. Remove the bumper bar and canopy if attached. REDSBABY.COM.AU...
  • Page 35 3. Take the seat back fabric and pull over the top of the bassinet/ seat frame. 4. Take the piping located on the sides of the seat fabric and feed through the channels on the sides of the bassinet/ seat frame. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 36 FOOT REST FABRIC SIDE A SIDE B 5. Take SIDE A of the foot rest fabric and gently feed through the channel on the left side of the bassinet/ seat frame. Tip: Use the pull-tab gently to assist. REDSBABY.COM.AU...
  • Page 37 6. Secure the press snaps on the bottom of the seat pad to the base of the seat fabric. 7. Pull the seat back fabric off the top of the bassinet/ seat frame. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 38 1. Open the frame and put the brake on. 2. Secure the upper/ middle frame adaptors in the upper position on the frame. Lower frame adaptors 1. Secure the lower frame adaptors in the lower position on the frame. REDSBABY.COM.AU...
  • Page 39 2. Click the seat into the upper position on the frame. 3. Click the lower bassinet into the lower position on the frame. 4. Place the first child into the upper seat. 5. Place the second child into the lower bassinet. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 40 2. Click the seat into the upper position on the frame. 3. Click the lower seat into the lower position on the frame. 4. Place the first child into the upper seat. 5. Place the second child into the lower seat. REDSBABY.COM.AU...
  • Page 41 3. Click the capsule into the capsule adaptors parent-facing. 4. Secure the capsule adaptors into the lower position on the frame. 5. Click the capsule into the lower capsule adaptors parent-facing. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 42 Using the NUVO in double mode REDSBABY.COM.AU REDSBABY.COM.AU...
  • Page 43 Fold with two seats attached You can fold the NUVO with two seats attached. Both seats must be either parent-facing or world-facing. 1. Ensure the seat is in the upright position. 2. Put the brake on. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 44 5. Use the seat recline levers to drop the seats further into the frame and push the telescopic handle in. 6. Check the frame fold lock is engaged. REDSBABY.COM.AU...
  • Page 45 When the frame has been fully opened, you will hear and feel a firm click. 4. A firm click indicates the frame is unfolded and locked in place. NUVO DOUBLE MODE PRODUCT GUIDE...

  • Page 46: Using The 5-Point Safety Harness

    Click backwards to secure. To unlock Press the button in the middle of the buckle to release all straps at once. Note: Padding has been provided for the shoulder straps and crotch strap. REDSBABY.COM.AU...
  • Page 47 3. Adjust the crotch strap C1 to the desired fit by sliding the adjuster upwards or downwards. Note: Padding has been provided for the shoulder straps, waist straps and crotch strap. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 48 1. Remove the upper seat by pressing the connectors located on both sides and lifting the seat upwards. 2. Remove the lower bassinet/ seat by pressing the buttons located on the lower frame adaptors and lifting the bassinet/ seat upwards. REDSBABY.COM.AU...
  • Page 49 Lifting and carrying safely • Always lift and carry the frame using two hands. • Ensure the frame fold lock is engaged. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 50 Lift the seat recline lever upwards and move the seat into the desired position. Adjusting the footrest The foot rest has three positions. 1. Pull the foot rest lever upwards. 2. Adjust the foot rest to the desired height. REDSBABY.COM.AU...
  • Page 51 Bumper bar 1. To secure, click into the bassinet/ seat frame. 2. To remove, press the buttons located under the left/ right side of the bumper and pull outwards. NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 52 Register your product online at redsbaby.com.au within 60 days of delivery to receive an additional 12 month warranty. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
  • Page 53 CLAIM VALIDITY Immediately cease use of the product once you become aware of a fault or defect. Contact Redsbaby to report the issue. You must make a claim within the claims period for it to be valid. WARRANTY EXPENSES Redsbaby will provide repairs and replacements free of charge for claims made within the claims period.
  • Page 54 We strive to use resources and make decisions that safeguard our planet for future generations. Our products are made to last for years to come and wherever possible, use sustainable materials and packaging to minimise our impact on our beautiful planet. REDSBABY.COM.AU...
  • Page 55 'REDSBABY', 'NUVO', ‘BETTER TOGETHER’, 'FOR YOUR JOURNEY' and 'FOR FUTURE' are registered trademarks of Redsbaby Pty Ltd ACN 625 563 519 729 Elizabeth Street Zetland 2017 NSW Australia 1800 841 889 NUVO DOUBLE MODE PRODUCT GUIDE...
  • Page 56 REDSBABY.COM.AU @REDSBABYAUS REDSBABY.COM.AU...
