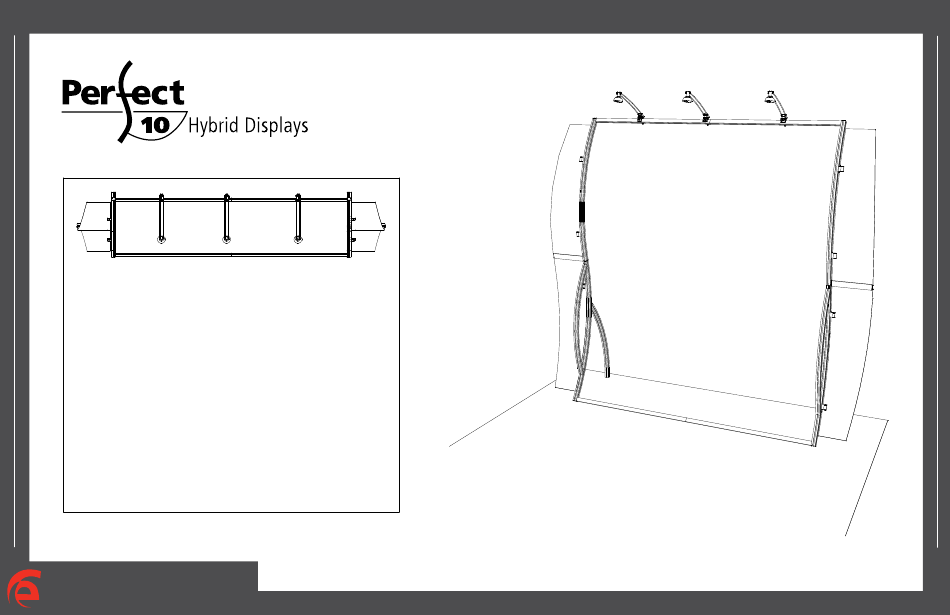

- Page 1 Step 1 Order #XXXXX - P10 - VK-1510 Kira - General Layout 866.652.2100 10’ Perspective View Plan View 10’ WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING © 2014 w w w . c l a s s i c e x h i b i t s . c o m patent D599,121 Page 1 of 2...
- Page 2 Step 1 Order #XXXXX - P10 - Kira - Backwall Assembly 866.652.2100 Item Steps: Qty. Description Left Leg Assembly NOTE: Assembly may be easiest if assembled face down on floor then lifted upright. Right Leg Assembly 1) Connect upper curved vertical extrusions [3a,3] to leg assemblies [1,2]. NOTE: When assembling horizontals they should be Right Upper Curved Vertical 2) Connect lower and upper horizontal extrusions between vertical assemblies by slightly...
- Page 3 Step 2 Order #XXXXX - P10 - Kira - Backwall Attachments 866.652.2100 Light Connection Attach lights to backwall where desired and tighten in place. Example of A10 Clamp Attachment When desired location is found, tighten A10’s set screw to secure. Slide connector on back Tighten knob to secure of A10 clamp into groove...
- Page 4 Case Packing - Case 1 of 1 Order #XXXXX - P10 - 866.652.2100 Top View Wing Attachment Wings Additional Items: - Setup Hardware Wing Attachment - Graphic - (3) Lights Level 1 Level 2 Level 3 Level 4 WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING ©...
