- Page 1 USER MANUAL AHDS-7810v2 Wireless HD Observation System...

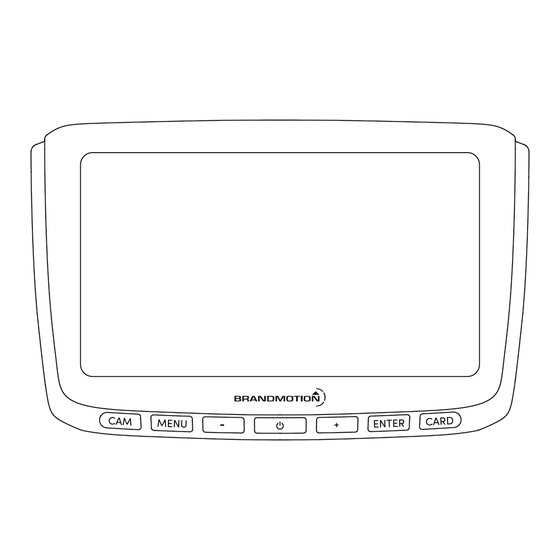

- Page 2 Wireless Monitor - Controls CAM: • Press to cycle between 5 • Press to turn the monitor on/off camera views (CH 1, CH 2, CH 3, CH4, and SPLIT SCREEN) • Press and Hold to enter “PAIRING MODE” to pair the wireless camera MENU: ENTER:...
- Page 3 Wireless Camera - Pairing power indicator light sensor manual pairing button Single Camera Pairing: Note: Once the camera is powered, you will have 45 seconds to initialize the pairing process. Power both the monitor and camera on. To check if the camera is properly powered, look for the RED light on the camera body.
-
Page 4: Recording Setup
Recording Setup Setting the Time/Date: Press the MENU button to open the display menu options. 2. Select SYSTEM from the main menu. 3. Select TIME and program using - / + and ENTER. DVR Recording: Insert the SD card into the side of the monitor. You can use up to a 128GB SD card. -
Page 5: Viewing Recordings
Viewing Recordings Monitor Playback: Press the CARD button or press the MENU and select PLAY 2. Press ENTER to open 100MEDIA Folder to view recorded video files Computer Playback: Remove SD card from the monitor 2. Insert the SD card into a computer 3. - Page 6 Main Menu • Select the MENU button to open the Main Menu. • You can use the - and + buttons to navigate your selection left and right. To select an option, click the ENTER button. To deselect an option or go back, click the MENU button Picture •...
-
Page 7: Mirror-Flip
Mirror-Flip • Select multiple orientations to display the video on the monitor. This is helpful for those who have mounted their cameras in alternative orientations. Side Marker Camera Alternative Mounting Option: Note: This operation is only recommended for owners of the AHDS-7812 Side Marker Light Cameras that have an obstruction preventing installation of their system. - Page 8 Mode • From the Main Menu, select MODE to choose from a variety of 14 Split Screen combinations. • The Split Screen option you select is what will be displayed as the 5th camera view when you cycle the camera input with the CAM button •...
- Page 9 System • Toggle system settings such as Time, Language, and AUTO-DIM • Toggle Parking Lines overlay for camera views • Preform a Factory Reset on the monitor to restore default settings parking lines example...
-
Page 10: Frequently Asked Questions
Frequently Asked Questions Q: Will the system record with the screen off? • No, the monitor will only record the active video being displayed on the screen. If there is no live video on the screen, there will be no data recorded. How many hours of recording will I get from a 32GB SD Card? •... - Page 11 COMPLETE YOUR OBSERVATION SYSTEM AHDS-7811V2 WIRELESS HD OBSERVATION CAMERA AHDS-7812 WIRELESS HD SIDE MARKER LIGHT CAMERAS...
