2014-Current Jeep Cherokee and 2015-Current Chrysler 200
Please read thoroughly before starting installation and check that kit contents are complete.
Items Included in the Kit:
9002-2738 module
T-harness w/video RCA
USB to mini USB for updating
These instructions
Safety Precautions:
• Work in well ventilated area that is clear of obstructions.
• Secure vehicle with tire chucks in both front and rear of tires.
• Turn vehicle accessories OFF and ensure ignition key is in OFF position.
• Wear safety goggles and snug fitting clothes.
• Use tools only for their intended purpose and which are in good repair.
• Only perform this task if confidence, skill, and physical ability permit.
NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color
instructions, as well as an installation video, please visit www.brandmotion.com
Install in a 2015 Jeep Cherokee

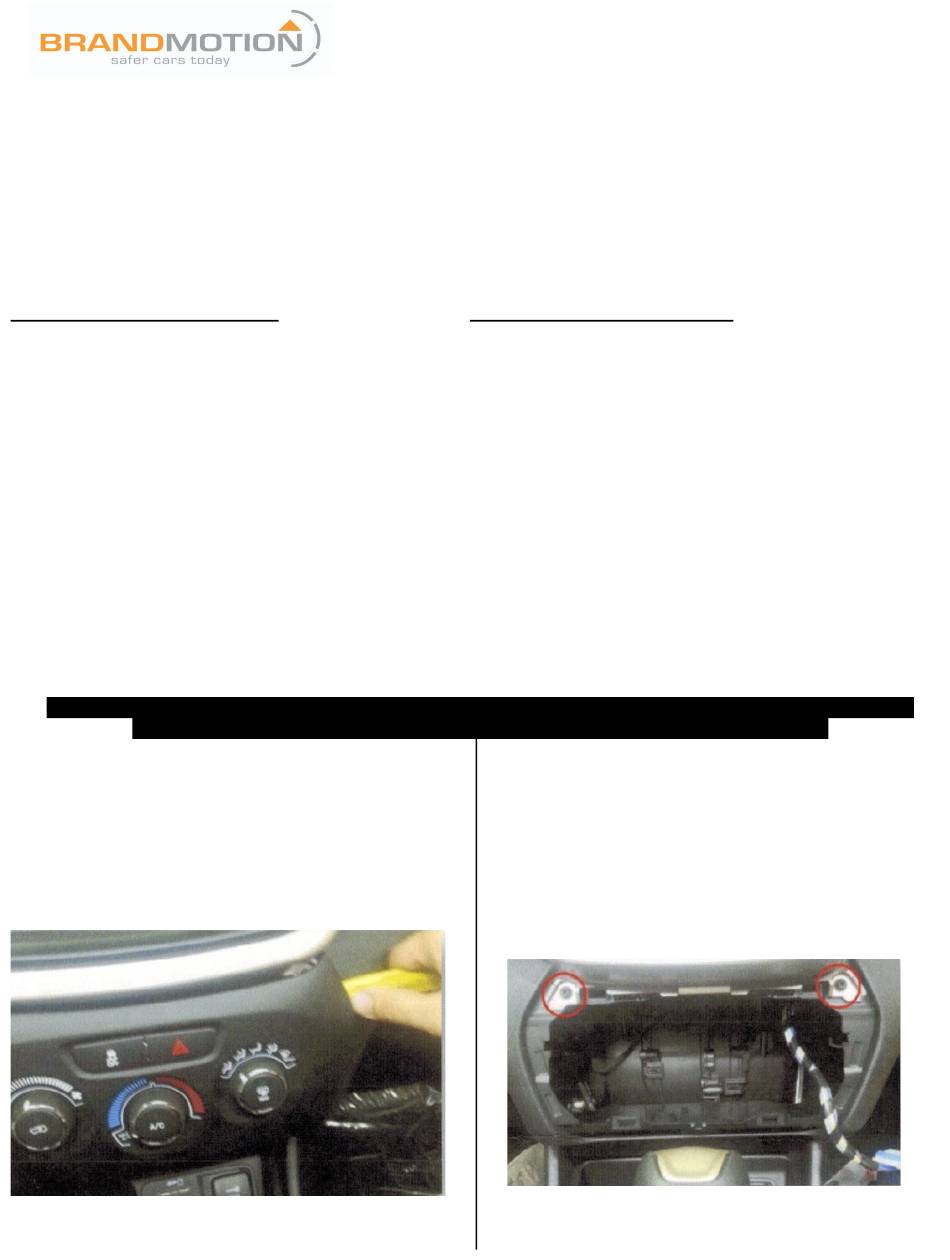

1. Remove the climate control panel with a
plastic panel removal tool.
9002-2738.docx
Backup Camera Interface
(Kit # 9002-2738)
Tools & Supplies Needed:
Plastic panel removal tool
Phillips screwdriver
Wire cutters
Wire strippers
Electrical tape
Zip ties
Page 1 of 4
INSTALLATION INSTRUCTIONS
2. Disconnect the climate controls harness and
set aside.
3. Remove (2) Phillips screws that hold the
radio trim to the main dash.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BrandMotion 9002-2738
Summary of Contents for BrandMotion 9002-2738
- Page 1 • Only perform this task if confidence, skill, and physical ability permit. NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color instructions, as well as an installation video, please visit www.brandmotion.com Install in a 2015 Jeep Cherokee 2.
- Page 2 6. Connect the 18-pin connector on the T- harness to the 9002-2738 module. 7. Connect the male connector of the T- harness to the back of the radio. Connect all other harness that where unplugged from the radio.
- Page 3 5. Ground the camera to a good solid metal ground. 6. Connect the 18-pin connector on the T- harness to the 9002-2738 module. 7. Connect the male connector of the T- harness to the back of the radio. Connect all other harness that where unplugged from the radio.
- Page 4 If nothing happens in reverse, recycle the key and place the vehicle in reverse once more. Below is a chart referencing LED flashes, which can be found on the side of the module. 9002-2738.docx Page 4 of 4...
