Please read thoroughly before starting installation and check that kit contents are complete.

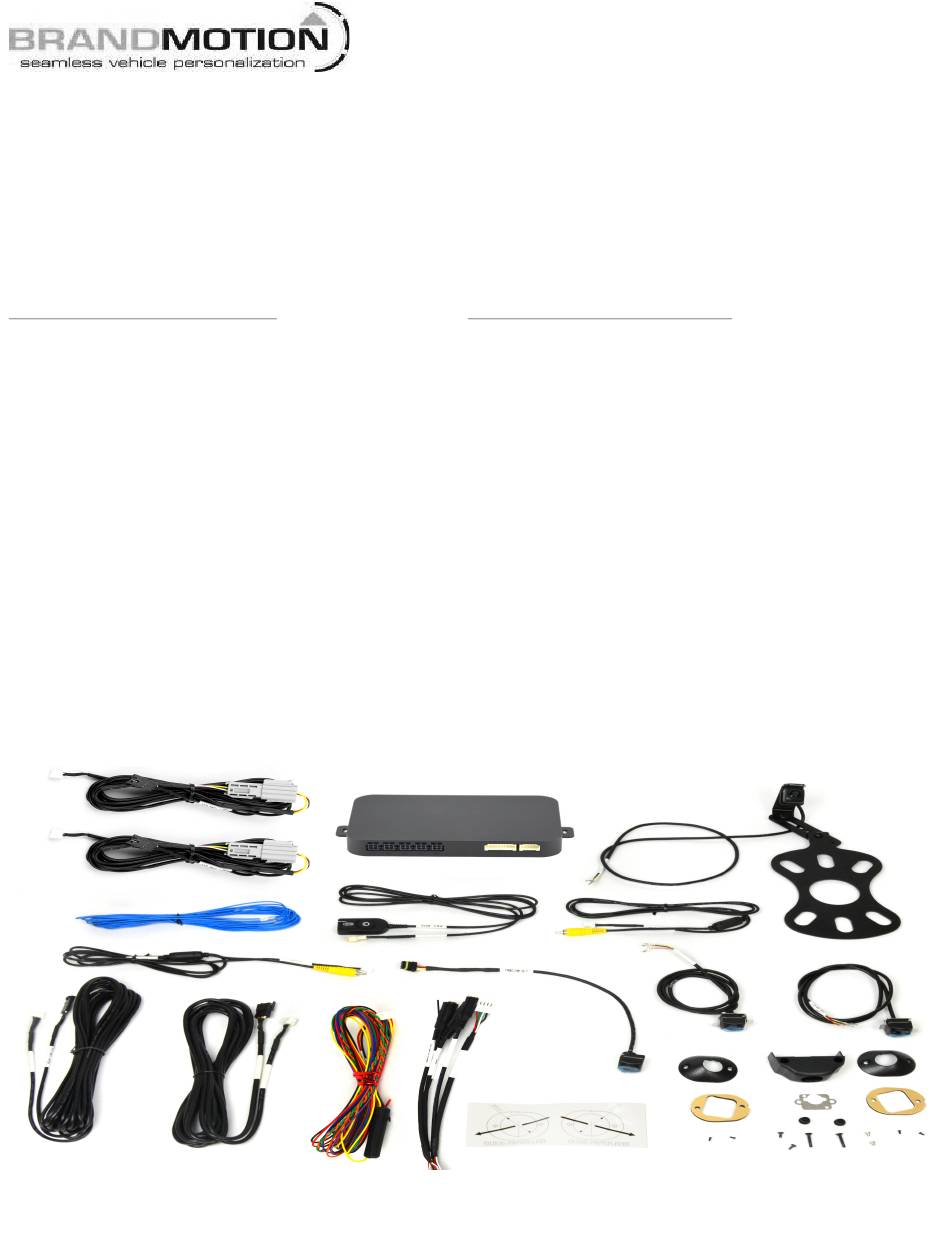

Items Included in the Kit:
360º camera module
Key box power/image buttons
Rear camera and Front camera
Front lower bumper mount and harness
Rear spare tire adjustable camera mount
2 side mount cameras w/pods and harnesses
2 video output RCA cables
Power/camera input harness
2 side camera templates
Mounting screws and gaskets
These instructions
Safety Precautions:
• Work in well ventilated area that is clear of obstructions.
• Secure vehicle with tire chucks in both front and rear of tires.
• Turn vehicle accessories OFF and ensure ignition key is in OFF position.
• Wear safety goggles and snug fitting clothes.
• Use tools only for their intended purpose and which are in good repair.
• Only perform this task if confidence, skill, and physical ability permit.
AVMS-3700v3
INSTRUCTIONS 11-27-17
2007-Current Jeep Wrangler 360º System for
Aftermarket display
(Kit # AVMS-3700v3)
INSTALLATION INSTRUCTIONS
Tools & Supplies Needed:
Wire strippers
Wire cutters
Electrical tape
Zip ties
Plastic panel removal tools
Digital Volt Meter / BCM safe test light
Screwdriver
Socket set
Wrench
Uni Bit
Drill
Page 1 of 31
