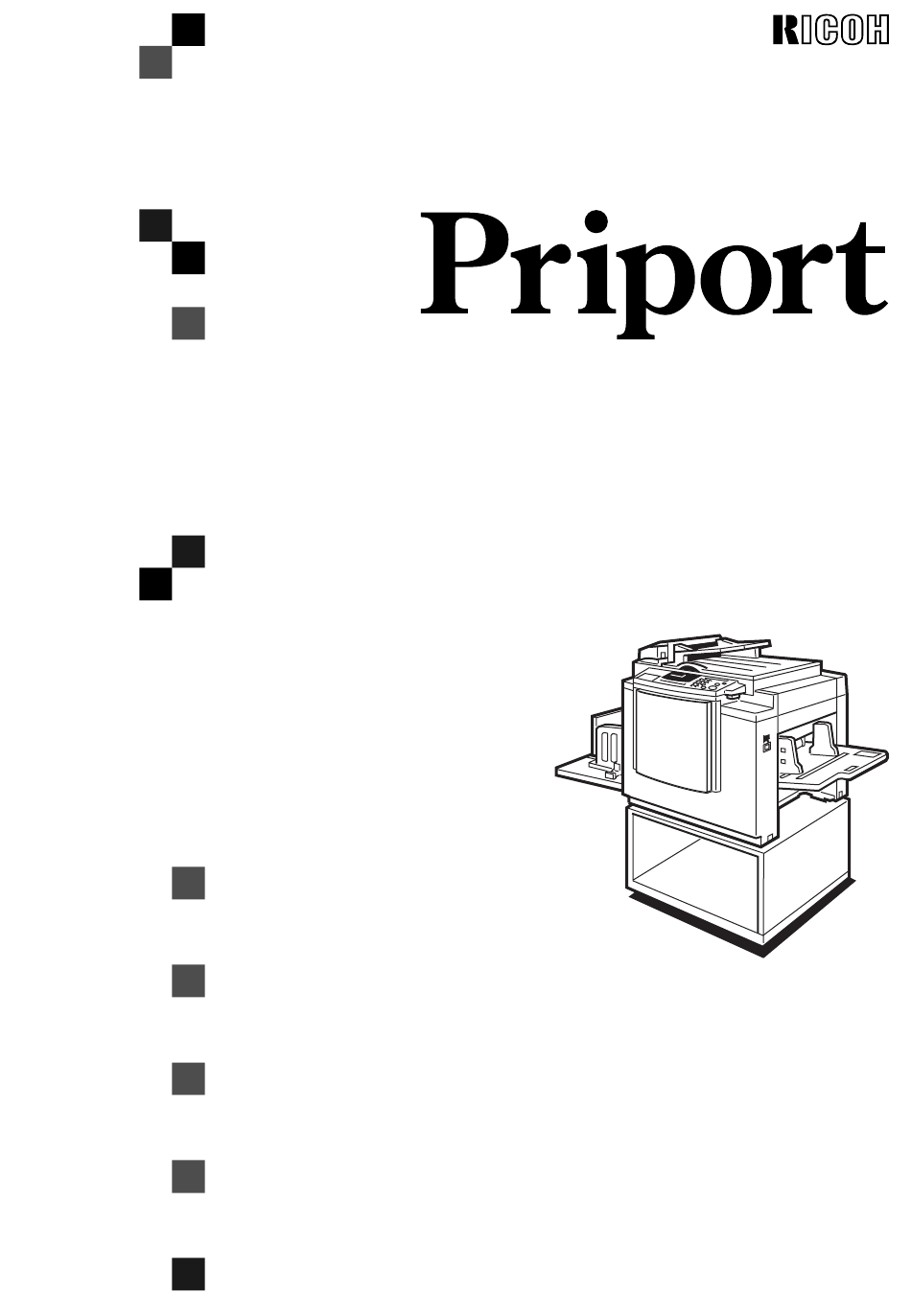

JP1010/1050
OPERATING INSTRUCTIONS
TSLH02HE
Read this manual carefully before you use this product and keep it handy for future
reference.
For safety, please follow the instructions in this manual.

Advertisement

Table of Contents
loading

Related Manuals for Ricoh Priport JP1010

Summary of Contents for Ricoh Priport JP1010

  • Page 1 JP1010/1050 OPERATING INSTRUCTIONS TSLH02HE Read this manual carefully before you use this product and keep it handy for future reference. For safety, please follow the instructions in this manual.
  • Page 2 For good print quality, Ricoh recommends that you use genuine Ricoh master and ink. Ricoh shall not be responsible for any damage or expense that might result from the use of parts other than genuine Ricoh parts in your Ricoh office product.
  • Page 3 “The Product complies with the requirements of the EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC.” In accordance with ISO Standard 7001, this machine uses the following symbols for the main switch: a means POWER ON. b means POWER OFF. Copyright © 1998 Ricoh Co., Ltd.
  • Page 4 Phone: +31-(0)20-5474111 37139 Verona Phone: +39-(0)45-8181500 United Kingdom Hong Kong RICOH UK LTD. Ricoh House, RICOH HONG KONG LTD. 1 Plane Tree Crescent, Feltham, 23/F., China Overseas Building, Middlesex, TW13 7HG 139, Hennessy Road, Phone: +44-(0)181-261-4000 Wan Chai, Hong Kong...
  • Page 5 Safety Information When using your machine, the following safety precautions should be always be followed. Safety During Operation In this manual, the following important symbols are used: R WARNING: Ignoring this warning could cause serious injury or even death. R CAUTION: Ignoring this caution could cause injury or damage to property.
  • Page 6 R WARNING: • Only connect the machine to the power source described on the inside front cover of this manual. • Avoid multi-wiring. • Do not damage, break or make any modifications to the pow- er cord. Do not place heavy objects on it, pull it hard or bend it more than necessary.
  • Page 7 R CAUTION: • Keep the machine away from humidity and dust. A fire or an elec- tric shock might occur. • Do not place the machine on an unstable or tilted surface. If it top- ples over, it could cause injury. •...
  • Page 8 • Keep the ink or ink container out of reach of children. • If ink is ingested, force vomiting by drinking a strong saline solu- tion and consult a doctor immediately. • Be careful not to cut yourself on any sharp edges when you reach inside the machine to remove misfed sheets of paper or masters.
  • Page 9 How To Read This Manual Symbols In this manual, the following symbols are used: R WARNING: This symbol indicates a potentially hazardous situation that might result in death or serious injury when you misuse the machine without following the in- structions under this symbol.
  • Page 10 What You Can Do With This Machine Standard Printing See ⇒ P.5 “Standard Printing”. Adjusting The Print Image Position See ⇒ P.8 “Adjusting The Print Image Position”. Adjusting The Print Image Density See ⇒ P.10 “Adjusting The Print Image Density”. Making Half-tone Prints See ⇒...
  • Page 11 Erasing Edge Margins See ⇒ P.19 “Edge Erase—Erasing Edge Margins”. Erasing The Shadow Of Pasted Originals See ⇒ P.21 “Paste Shadow Erase—Erasing The Shadow Of Pasted Originals”. Printing On Thick Or Thin Paper See ⇒ P.22 “Printing On Thick Or Thin Paper”. Selecting Original Type See ⇒...
  • Page 12 Combining Originals Into One Print See ⇒ P.32 “Combine Copies—Combining 2 Originals Into One Print”. GRCOMB0E Skip Feed Printing See ⇒ P.35 “Skip Feed Printing”. Storing Your Print Settings In Memory See ⇒ P.36 “Program—Storing Your Print Settings In Memory”. Printing Secret Documents See ⇒...
  • Page 13 Guide To Components Machine Exterior TSLH01EE Front Door Feed Roller Pressure Lever Open for access to the inside of the ma- Use to adjust the contact pressure of the chine. paper feed roller according to paper thickness. Operation Panel Paper Feed Side Plates Operator controls and indicators are lo- cated here.
  • Page 14 Behind Cover Flip up when you use the keys under- neath. Machine Interior TSLH01DE Document Feeder (Option) Main Switch Original inserted into the document feed- Use to turn the power on or off. er are individually and automatically fed Drum Unit onto and removed from the exposure The master is wrapped around this unit.
  • Page 15 Options 30 Originals Document Feeder TSLP015E Note Other options: • Color Drum: B4 drum • Color Drum: A4 drum • Tape Dispenser • Key Counter...
  • Page 16 Operation Panel Keys { { { { Security} } } } key { { { { Skip Feed} } } } key Press to select skip feed printing. See ⇒ Press to make prints of secret documents. See ⇒ P.40 “Security Mode—Printing Se- P.35 “Skip Feed Printing”.
  • Page 17 TSLS022E { { { { Type of Original} } } } key { { { { W W W W } } } } and { { { { V V V V } } } } keys (Speed keys) Press to adjust the printing speed.
  • Page 18 Indicators Error Indicators These indicators are lit when a non- standard condition occurs within the ma- chine. Memory/Class Indicator Shows the number entered in Memory or Class mode. Speed Indicators These indicators show the printing speed that is selected. Counter Displays the number of prints entered.

  • Page 19: Table Of Contents

    TABLE OF CONTENTS 1. OPERATION Printing Paper .................... 1 Originals ..................... 2 Preparation For Printing ................3 Loading Paper....................3 Setting Up The Paper Delivery Table............4 Standard Printing ..................5 Restoring Paper Feed And Paper Delivery Tables ......... 7 Adjusting The Print Image Position............
  • Page 20 Program—Storing Your Print Settings In Memory ....... 36 Storing Your Settings .................. 36 Recalling A Program ................... 37 Protecting A Program.................. 38 Removing Program Protection ..............39 Security Mode—Printing Secret Documents ........40 2. OPTIONAL FUNCTIONS Printing Using The Optional 30 Originals Document Feeder ....41 Document Feeder Exterior ................
  • Page 21 x Clearing Misfeeds................82 “x” + “ORIGINAL JAM. REMOVE ORIGINAL” .......... 82 “x” +“PAPER FEED JAM. REMOVE JAMMED PAPER” ......85 “x”+ “MASTER FEED JAM. REMOVE JAMMED MASTER”..... 88 “x” +“PAPER WRAP JAM. REMOVE JAMMED PAPER” ......89 “x” +“MASTER EJECT JAM. REMOVE JAMMED MASTER” ....92 “x”...
  • Page 22 This page is intentionally blank. xviii...

  • Page 23: Operation

    1. OPERATION Printing Paper The following types of print paper are not recommended for this machine. • Paper smaller than 90 mm × 148 mm, 3.6" × 5.9" • Paper larger than 268 mm × 388 mm, 10.5" ×15.2" • Paper heavier than 157.0 g/m , 41.7 lb •...

  • Page 24: Originals

    OPERATION Originals Note Originals that can be set on the exposure glass are as follows: • Maximum size: 257 × 364 mm, 10.2" × 14.4" • Maximum total thickness: 30 mm, 1.1" • Maximum total weight: 5 kg, 11.0 lb If you use paste-up originals, make sure the pasted parts hold firmly to the base sheet and press the {Paste Shadow Erase} key.

  • Page 25: Preparation For Printing

    Preparation For Printing Preparation For Printing Place the paper on the paper feed Loading Paper table. Carefully open the paper feed ta- ble. TSLY013E Note Correct the paper curl before TSLH026E setting the paper. If you cannot Put the paper feed side plates lock do so, stack the paper with the lever.

  • Page 26: Setting Up The Paper Delivery Table

    OPERATION Make sure that the paper feed Lift the paper delivery side plates side plates touch the paper light- and adjust them to the paper size. ly. Put back the lock lever. TSLH030E TSLY015E Lift the paper delivery end plate and move it to match the print pa- Setting Up The Paper Delivery per size.

  • Page 27: Standard Printing

    Standard Printing Standard Printing should be centered according to the size marks on the right scale. - Printing In this manual, the word, “Printing” is used as opposed to “Copying” in order to distinguish between the process that your machine uses to make prints, and the process used by a standard copier machine.
  • Page 28 OPERATION Press the { { { { Proof} } } } key and check Press the { { { { Print} } } } key. the image density and the image position of the proof print. TSLS014E Note TSLS013E After printing is completed, the Note same number of prints is auto- If the image position is not cor-...

  • Page 29: Restoring Paper Feed And Paper Delivery Tables

    Restoring Paper Feed And Paper Delivery Tables Restoring Paper Feed And Paper Delivery Tables Remove the paper from the paper Move the end plate until the plate feed table. handle is flush with the end of the table. TSLY016E TSLH021E The paper feed table will lower.

  • Page 30: Adjusting The Print Image Position

    OPERATION Adjusting The Print Image Position After master making, you can adjust Note the print image position to suit your When you shift the image for- needs. There are two ways: wards, leave a margin (more than 5 mm, 0.2") at the leading Shifting The Image Position Forward edge.
  • Page 31 Adjusting The Print Image Position Press the { { { { Proof} } } } key to check the Turn the side table fine adjusting dial as shown in the illustrations. image position. Shifting the image to the right TSLS013E TSLH02IE Shifting the image to the left TSLH02JE...

  • Page 32: Adjusting The Print Image Density

    OPERATION Adjusting The Print Image Density You can adjust the print image densi- key. To reduce the speed, press the { { { { W W W W } } } } key. ty to suit your needs. There are two ways: Before Making A Master Adjust the image density using the...

  • Page 33: Tint Mode-Making Half-Tone Prints

    Tint Mode—Making Half-tone Prints Tint Mode—Making Half-tone Prints Note If the image position is not cor- rect, adjust it using the {Image Position} keys (see ⇒ P.8 “Ad- justing The Print Image Position”) or the side table fine adjusting dial (see ⇒ P.8 “Shifting The Print Image Position To The Right Or Left”).

  • Page 34: Fine Mode-Making Clear Prints

    OPERATION Fine Mode—Making Clear Prints Use the {Fine} key to make clear Enter the number of prints with prints. the { { { { Number} } } } keys. Press the { { { { Fine} } } } key to select Fine Press the { { { { Print} } } } key.

  • Page 35: Changing The Printing Speed

    Changing The Printing Speed Changing The Printing Speed Use the {W} or {V} key to adjust the speed of the machine with the image density and printing paper. Press the { { { { V V V V } } } } key to increase the speed and press the { { { { W W W W } } } } key to re- duce the speed.

  • Page 36: Stopping The Machine During The Multi-Print Run

    OPERATION Stopping The Machine During The Multi- print Run When You Want To Stop The When You Want To Change Machine During The Multi- The Number Of Prints Entered print Run And Print The Next Or Check The Completed Original Prints Press the { { { { Clear/Stop} } } } key.

  • Page 37: Preset Reduce/Enlarge-Reducing And Enlarging Using Preset Ratios

    Preset Reduce/Enlarge—Reducing And Enlarging Using Preset Ratios Preset Reduce/Enlarge—Reducing And Enlarging Using Preset Ratios You can select a preset ratio for print- Prints can be reduced or enlarged ing. as follows: Reduction (Metric version) Reduction Original Print Size Ratio Size 93 % 87 % GRREDU0E...
  • Page 38 OPERATION Enlargement (Metric version) Press the { { { { Start} } } } key. Enlarge- Original Print Size ment Ratio Size 141 % 122 % 115 % TSLS012E Check the image position of the Enlargement (Inch version) trial or proof print. Enlarge- Original Print Size...

  • Page 39: Center/Edge Erase-Erasing Center And Edge Margins

    Center/Edge Erase—Erasing Center And Edge Margins Center/Edge Erase—Erasing Center And Edge Margins When printing from thick books, or Check Indicator is blinking and similar originals, the binding margin is shown in the guidance dis- at the center and the edges might ap- play.
  • Page 40 OPERATION or the side table fine adjusting When you reach the desired paper dial (see ⇒ P.8 “Shifting The size and direction, press the { { { { #} } } } Print Image Position To The Right key. Or Left”). Enter the number of prints with the { { { { Number} } } } keys.

  • Page 41: Edge Erase-Erasing Edge Margins

    Edge Erase—Erasing Edge Margins Edge Erase—Erasing Edge Margins If you want to erase edge margins of a Press the { { { { } } } } or { { { { } } } } key to se- book original, follow the steps below. lect the paper size and direction.
  • Page 42 OPERATION Press the { { { { Start} } } } key. TSLS012E Check the image position of the trial or proof print. Note If the image position is not cor- rect, adjust it using the {Image Position} keys (see ⇒ P.8 “Ad- justing The Print Image Position”) or the side table fine adjusting dial (see ⇒...

  • Page 43: Paste Shadow Erase-Erasing The Shadow Of Pasted Originals

    Paste Shadow Erase—Erasing The Shadow Of Pasted Originals Paste Shadow Erase—Erasing The Shadow Of Pasted Originals If you want to erase the shadow of Press the { { { { Print} } } } key. pasted originals, follow the steps be- low.

  • Page 44: Printing On Thick Or Thin Paper

    OPERATION Printing On Thick Or Thin Paper When you make prints on thick (127.9 Printing On Thin Paper to 157.0 g/m , 34.0 to 41.7 lb) or thin (47.1 to 81.4 g/m , 12.5 to 21.6 lb) pa- per, perform the following steps. Set the side pads (move the side pad levers to as shown).

  • Page 45: Selecting Original Type

    Selecting Original Type Selecting Original Type Select one of the following three types Press the { { { { Image Density} } } } key to ad- to match your originals: just the image density. Photo mode Delicate tones of photographs and pictures can be reproduced with this mode.

  • Page 46: Economy Mode-Ink Saving

    OPERATION Economy Mode—Ink Saving When you want to save ink, select P.8 “Shifting The Print Image Po- Economy mode. sition To The Right Or Left”). Note Make your prints. Prints will come out lighter. Press the { { { { Economy} } } } key. TSLS01FE Set your originals on the exposure glass or in the optional document...

  • Page 47: Auto Cycle-Printing From Several Originals At Once

    Auto Cycle—Printing From Several Originals At Once Auto Cycle—Printing From Several Originals At Once Use the {Auto Cycle} key to process Press the { { { { Start} } } } key. masters and make prints at one stroke. Note When you use the optional docu- ment feeder, it is not necessary to place originals one by one.
  • Page 48 OPERATION If you use the optional tape dis- penser, turn on the tape dispenser power switch. O f f TSLP013E Press the { { { { Print} } } } key. Note Repeat steps A through C until all originals are printed when you set originals on the expo- sure glass.

  • Page 49: Class Mode-Group Printing From The Same Original

    Class Mode—Group Printing From The Same Original Class Mode—Group Printing From The Same Original Use the {Memory/Class} key to make With the { { { { Number} } } } keys, enter the sets of prints from the same original. number of prints for each set to be The same number of prints is made made from the original.
  • Page 50 OPERATION Turn on the optional tape dis- Make your prints. penser power switch. O f f TSLS014E TSLP013E Note After the last page of each print- Set one original face down on the ing set is fed out to the paper de- exposure glass or in the optional livery table, the tape dispenser document feeder.

  • Page 51: Memory Mode-Group Printing From Different Originals

    Memory Mode—Group Printing From Different Originals Memory Mode—Group Printing From Different Originals Use the {Memory/Class} key to make With the { { { { Number} } } } keys, enter the sets of prints from different originals. desired number of prints for the first original.
  • Page 52 OPERATION With the { { { { Number} } } } keys, enter the Set the first original face down on number of prints for the second the exposure glass. original. TSLH010E TSLS011E Note Press the { { { { q q } } } } key.
  • Page 53 Memory Mode—Group Printing From Different Originals paper on the top of the paper Turn on the optional tape dis- stack. penser power switch. After the first set is completed, set the second original on the expo- sure glass and press the { { { { Start} } } } key.

  • Page 54: Combine Copies-Combining 2 Originals Into One Print

    OPERATION Combine Copies—Combining 2 Originals Into One Print As a default, this function cannot be Inch version used. If you want to use this function, Original Size set “SET COMBINE KEY” to “Yes”. See "17 SET COMBINE KEY" in ⇒ "...
  • Page 55 Combine Copies—Combining 2 Originals Into One Print mm, 0.16" for the second original) Press the { { { { } } } } or { { { { } } } } key to se- from the leading edge. lect the original size and direc- You can select different kinds of tion.
  • Page 56 OPERATION Press the { { { { Start} } } } key. Enter the number of prints with the { { { { Number} } } } keys. TSLS012E TSLS011E The beeper sounds after the first original is on the master. Set the Make your prints.

  • Page 57: Skip Feed Printing

    Skip Feed Printing Skip Feed Printing If the backs of prints are dirty, you Press the { { { { Start} } } } key. can increase the time between two prints using the {Skip Feed} key. In the default setting, when one sheet of paper is fed the drum rotates twice.

  • Page 58: Program-Storing Your Print Settings In Memory

    OPERATION Program—Storing Your Print Settings In Memory You can store up to 9 frequently used Enter “0” with the { { { { Number} } } } keys. print job settings in machine memory, and recall them for future use. Note The stored programs are not cleared when you turn off the main...

  • Page 59: Recalling A Program

    Program—Storing Your Print Settings In Memory Select the program number you Note want to store the settings in with Numbers already containing a the { { { { Number} } } } keys. program are displayed on the guidance display. Select the program number you want to recall with the { { { { Number} } } } keys.

  • Page 60: Protecting A Program

    OPERATION Press the { { { { Start} } } } key. Press the { { { { q q } } } } key. TSLS012E TSLS01JE Note Protecting A Program The numbers of the programs which are not protected will be If you want to prevent someone from displayed in the guidance dis- writing over your program, do the...

  • Page 61: Removing Program Protection

    Program—Storing Your Print Settings In Memory Select the program number you Removing Program Protection want to remove protection from with the { { { { Number} } } } keys. While holding down the { { { { Clear/ Stop} } } } key, press the { { { { Program} } } } key.

  • Page 62: Security Mode-Printing Secret Documents

    OPERATION Security Mode—Printing Secret Documents This function prevents others from making prints of secret documents from the master. For example, if you want to print some documents with sensitive information, use this func- tion after making your prints so that nobody can access that master again.

  • Page 63: Optional Functions

    2. OPTIONAL FUNCTIONS Printing Using The Optional 30 Originals Document Feeder Insert a stack of originals in the document feeder. They will be fed automatically. Document Feeder Exterior TSLP018E Original Tray Original Guides Original used to make masters are deliv- Adjust these guides to position the origi- ered to this tray.

  • Page 64: Setting Originals In The Document Feeder

    OPTIONAL FUNCTIONS • Originals with glue on them • Originals perforated for ring binders • Book originals • Originals written with a pencil or ball-point pen • Originals smaller than 148 mm × 105 mm, 5.8" × 4.1" • Originals larger than 257 mm × 364 mm, 10.2" × 14.4" •...
  • Page 65 Printing Using The Optional 30 Originals Document Feeder Adjust the guide to the original size. TSLH011E Insert the aligned originals face up in the document feeder until they stop. TSLH012E Limitation Approximately 30 originals (64 g/m , 17 lb) can be inserted at one time in the 30 originals document feeder.

  • Page 66: Combine Copies With The Document Feeder

    OPTIONAL FUNCTIONS Note If the next original has been set in the document feeder before the machine stops, that original is fed automatically and a trial print is delivered to the paper delivery table after the print of the first original is completed. Check the image position of the trial print of the next original.

  • Page 67: Memory Mode With The Document Feeder

    Printing Using The Optional 30 Originals Document Feeder Press the { { { { Start} } } } key. TSLS012E Check the image position of the trial or proof print. Note If the image position is not correct, adjust it using the {Image Position} keys (see ⇒...
  • Page 68 OPTIONAL FUNCTIONS Press the { { { { Memory/Class} } } } key to light the Memory indicator. TSLS01XE With the { { { { Number} } } } keys, enter the desired number of prints for the first original. TSLS011E Press the { { { { q q } } } } key.
  • Page 69 Printing Using The Optional 30 Originals Document Feeder Set your originals face up into the document feeder. TSLH013E Note When you use the optional 30 originals document feeder, the originals are fed from the bottom of the stack. Make sure that the originals are set in the correct sequence with the first original on the bottom.
  • Page 70 OPTIONAL FUNCTIONS Turn on the optional tape dispenser power switch. O f f TSLP013E Press the { { { { Auto Cycle} } } } key. TSLS01GE Note In Auto Cycle mode, printing starts automatically after a trial print is de- livered.

  • Page 71: Color Printing Using The Optional Color Drum

    Color Printing Using The Optional Color Drum Color Printing Using The Optional Color Drum Color drum units (red, blue, green, P.8 “Shifting The Print Image Po- brown, yellow, purple, navy, ma- sition To The Right Or Left”). roon, orange, teal and gray) are avail- Make your prints.
  • Page 72 OPTIONAL FUNCTIONS Pull out the drum unit handle. Note Be careful not to let the drum unit fall. Insert the color drum unit along the guide rail. TSLH01LE Note If you cannot pull out the drum unit, push the drum unit han- dle, then pull out the drum unit.

  • Page 73: Printing In Two Colors

    Color Printing Using The Optional Color Drum Press the { { { { Start} } } } key. Close the front door. Note Make sure that the Cover Open indicator (M)turns off, and the COLOR is shown in the guid- ance display.
  • Page 74 OPTIONAL FUNCTIONS Press the { { { { Print} } } } key. Set the second original and press the { { { { Start} } } } key. TSLS014E TSLS012E Remove the prints from the paper delivery table and set them on the Check the image position.

  • Page 75: Service Program Mode

    3. SERVICE PROGRAM MODE Accessing Service Programs The service programs can be set by With the { { { { Number} } } } keys, enter the following this procedure. desired service program number (SP No.). Reference For the service program menu, see ⇒...

  • Page 76: Changing The Settings Of Service Programs

    SERVICE PROGRAM MODE Changing The Settings Of Service Programs After entering the desired SP No., press the { { { { q q } } } } key. TSLS01JE The value or mode set at the factory will be displayed at the end of the second line on the guidance display.

  • Page 77: Service Program Menu

    Changing The Settings Of Service Programs Note If you enter the wrong value or mode, press the {Clear Modes} key. Then, go back to step A. When you want to leave the service program mode A Press the { { { { Clear Modes} } } } key. TSLS01VE Service Program Menu SP No.
  • Page 78 SERVICE PROGRAM MODE SP No. Mode Function SET DISPLAY If you want to change the language used by the guidance display, select the language version. Note Default: 1 Adjustable value: • 0: Japanese • 1: English • 2: German • 3: French •...
  • Page 79 Changing The Settings Of Service Programs SP No. Mode Function PRINTS/MASTER The optional key counter usually counts the COST number of prints made regardless of the number of masters used. For accounting purposes, it is possible for the key counter to be incremented by a value between 0 and 50 whenever a new master is used.
  • Page 80 SERVICE PROGRAM MODE SP No. Mode Function IMAGE DENSITY Specifies the image density at power on. Note Default: 1 Adjustment value: • 0: Light • 1: Standard • 2: Dark • 3: Darker PRINT SPEED Specifies the printing speed at power on. Note Default: 1 Adjustment value:...
  • Page 81 Changing The Settings Of Service Programs SP No. Mode Function AUTO MULTI COPY If you set an original on the exposure glass and press the {Combine Copies} key and {Start} key, two identical images are printed on the one sheet. Note Default: 0 Adjustment value: 0: No 1: Yes...
  • Page 82 SERVICE PROGRAM MODE SP No. Mode Function CLR RESETTABLE Clears the resettable master/print counter. COUNT Note Default: 0 Adjustment value: 0: No 1: Yes USER CODE MODE Selects user code mode. When you set this func- tion, you have to also specify the auto reset time. For details about user code mode, see ⇒...
  • Page 83 Changing The Settings Of Service Programs SP No. Mode Function SIDE ERS. Adjust the default side edge margin width in Edge Erase and Center/Edge Erase mode. Note Default: • Metric Version: 5 mm • Inch Version: 0.2" Adjustable value: • Metric Version: 2 – 20 mm •...

  • Page 84: User Codes

    SERVICE PROGRAM MODE User Codes If the machine is set to use the User Hold down the { { { { Clear/Stop} } } } key Code function, operators must input for at least 3 seconds. their user codes before the machine can operate.

  • Page 85: How To Use User Code Mode

    User Codes key. After you have finished, press the { { { { Clear/Stop} } } } key while holding down the { { { { Clear Modes} } } } key. TSLS011E Press the { { { { Clear Modes} } } } key to TSLS01YE leave Service Program mode.

  • Page 86: How To Clear The User Code Counter (# 122)

    SERVICE PROGRAM MODE for at least 3 seconds. Press the { { { { Clear Modes} } } } key to leave Service Program mode. TSLS01AE TSLS01VE Enter “121” with the { { { { Number} } } } keys and press the { { { { q q } } } } key.

  • Page 87: How To Check The Total Number Of Masters And Prints Made Under All User Codes (# 123)

    User Codes Hold down the { { { { Clear/Stop} } } } key Enter “1” (Yes) with the { { { { Number} } } } keys and press the { { { { q q } } } } key. for at least 3 seconds.

  • Page 88: How To Clear The User Code Total Counter (# 124)

    SERVICE PROGRAM MODE Enter “123” with the { { { { Number} } } } How To Clear The User Code keys and press the { { { { q q } } } } key. Total Counter (# 124) Press the { { { { Clear Modes} } } } key.
  • Page 89 User Codes Enter “1” (Yes) with the { { { { Number} } } } keys and press the { { { { q q } } } } key. TSLS01TE Press the { { { { Clear Modes} } } } key to leave Service Program mode.
  • Page 90 SERVICE PROGRAM MODE This page is intentionally blank.

  • Page 91: Replenishing Supplies

    4. REPLENISHING SUPPLIES Loading Paper On The Paper Feed Table The Load Paper indicator (B) blinks Press the { { { { Paper Feed Table Down} } } } when the paper feed table runs out of key. paper. Replenishing Paper Press the { { { { Clear/Stop} } } } key.

  • Page 92: Changing The Paper Size

    REPLENISHING SUPPLIES Note Correct paper curl before set- ting the paper. Press the { { { { Print} } } } key to resume printing. TSLH01AE 1: Paper Feed Side Plates Lock Le- Place the paper on the paper feed TSLS014E table.

  • Page 93: When The Add Ink Indicator (J) Blinks

    When The Add Ink Indicator (j) Blinks When The Add Ink Indicator (j) Blinks The Add Ink indicator (j) blinks when it is time to supply ink. R CAUTION: • If ink comes into contact with your eyes, rinse immediately in run- ning water.
  • Page 94 REPLENISHING SUPPLIES Pull out the ink holder and remove the used ink cartridge. TSLH01JE Remove the cap of the new ink cartridge. TSLT012E Insert the new cartridge into the ink holder. TSLT013E Return the ink holder to its original position until it clicks. Note Always supply ink of the same color.
  • Page 95 When The Add Ink Indicator (j) Blinks Make sure to firmly insert the part indicated by the arrow mark into the guide. TSLT011E Close the front door. The machine will start idling to supply ink to the drum. Note It will stop when the correct amount of ink reaches the drum.

  • Page 96: Master Roll Replacement

    REPLENISHING SUPPLIES Master Roll Replacement The Master End indicator (C) is lit Remove the used master roll and when it is time to replace the master pull out both spools. Then, insert roll. both spools into a new master roll. Open the original table.
  • Page 97 Master Roll Replacement Set the paper edge of the master Return the original table to its roll as shown. original position. TSLH01UE TSLH025E Note Rotate the spools backward to take up any slack in the master. Close the plotter cover. TSLH023E Close the right side cover.

  • Page 98: Placing A New Roll Of Tape In The Tape Dispenser (Option)

    REPLENISHING SUPPLIES Placing A New Roll Of Tape In The Tape Dispenser (Option) Note Feed the leading edge of the roll in the dispensing slot until it Make sure that the main switch is stops. turned on and the power switch of the tape dispenser is off.
  • Page 99 Placing A New Roll Of Tape In The Tape Dispenser (Option) Press the manual cut button to trim off the leading edge of the tape. TSLP014E...
  • Page 100 REPLENISHING SUPPLIES This page is intentionally blank.

  • Page 101: What To Do If Something Goes Wrong

    5. WHAT TO DO IF SOMETHING GOES WRONG If Your Machine Does Not Operate As You Want If a malfunction or a misfeed occurs within the machine, the following indicators will blink or light. TSLS01ZE x ) blinks When the misfeed indicator (x Indicator Guidance Display Page ⇒...
  • Page 102 WHAT TO DO IF SOMETHING GOES WRONG R CAUTION: • Be careful not to cut yourself on any sharp edges when you reach inside the machine to remove misfed sheets of paper or masters. Note To prevent misfeeds, do not leave any torn scraps of paper within the ma- chine.
  • Page 103 If Your Machine Does Not Operate As You Want When one of the following messages is displayed on the guidance display Guidance Display Meaning The maximum number of prints that can be RE-ENTER COPY NUMBER MAXIMUM entered is specified by the Service Program IS XXX mode.

  • Page 104: Clearing Misfeeds

    WHAT TO DO IF SOMETHING GOES WRONG x Clearing Misfeeds Important When clearing misfeeds, do not turn off the main switch. If you do, your print settings are cleared. - After clearing misfeeds Press the {Clear Modes} key to reset the error indicators. TSLS01VE “x”...
  • Page 105 x Clearing Misfeeds Pull out the original gently. TSLY011E If you cannot remove the misfed original, pull out the original from the side of the original tray and remove the original. TSLY017E If you still cannot remove the misfed paper, press the ADF open lever and open the ADF unit to remove the original.
  • Page 106 WHAT TO DO IF SOMETHING GOES WRONG • Originals lighter than 40 g/m , 10.6 lb (when setting one original at a time) • Carbon coated originals • Damaged originals • Originals with glue on them • Originals perforated for ring binders •...

  • Page 107: X" +"Paper Feed Jam. Remove Jammed Paper

    x Clearing Misfeeds x ” +“PAPER FEED JAM. REMOVE JAMMED PAPER” “x R CAUTION: • Be careful not to cut yourself on any sharp edges when you reach inside the machine to remove misfed sheets of paper or masters. Misfeed in the paper feed section Slowly but firmly pull out the paper.
  • Page 108 WHAT TO DO IF SOMETHING GOES WRONG Re-insert the drum unit until the drum unit locks in position and put the lever back in place. TSLH028E Close the front door. - To prevent paper misfeeds: If the paper is curled or the originals leading edge margin is too narrow, the fol- lowing action is necessary.
  • Page 109 x Clearing Misfeeds • If you cannot correct the paper curl, stack the paper with the curl face down as shown. GRMARU0E GRBATS0E • When the leading edge margin of the original is less than 5 mm, 0.2" or there is a solid image on the leading edge, insert the original with the widest mar- gin first or make a leading edge margin by making a copy.

  • Page 110: X"+ "Master Feed Jam. Remove Jammed Master

    WHAT TO DO IF SOMETHING GOES WRONG x ”+ “MASTER FEED JAM. REMOVE JAMMED MASTER” “x Open the original table. TSLH01SE Note Lift the original table release lever and slide the original table all the way to the left. Open the right side cover. TSLH01TE Open the plotter cover.

  • Page 111: X" +"Paper Wrap Jam. Remove Jammed Paper

    x Clearing Misfeeds If you could not remove the misfed master in steps B B B B and C C C C , take out the drum and remove the misfed master from the inside. TSLH01BE Reference For how to take out the drum unit, see ⇒ P.49 “Changing The Color Drum Unit”.
  • Page 112 WHAT TO DO IF SOMETHING GOES WRONG Remove the misfeed paper. TSLH02FE If the paper is completely wrapped around the drum, pull out the drum unit and remove the misfed paper from the drum. TSLH02AE Re-install the drum unit locks in position and put the lever back in place. TSLH028E Note If you followed step B or C, close the front door.
  • Page 113 x Clearing Misfeeds • When you use curled paper, correct the curl as shown. GRCURL0E • If you cannot correct the paper curl, stack the paper with the curl face down as shown. GRMARU0E GRBATS0E • When the leading edge margin of the original is less than 5 mm, 0.2" or there is a solid image on the leading edge, insert the original with the widest mar- gin first or make a leading edge margin by making a copy.

  • Page 114: X" +"Master Eject Jam. Remove Jammed Master

    WHAT TO DO IF SOMETHING GOES WRONG x ” +“MASTER EJECT JAM. REMOVE JAMMED MASTER” “x Check where the misfed master is. Remove the misfed master as follows. When a master misfeed occurs in the master eject section A Pull out the master eject box. TSLH022E B Remove the misfed master.
  • Page 115 x Clearing Misfeeds When a master misfeed occurs on the drum A Lift the lever to unlock the drum unit and pull out the unit. TSLH01QE Reference For how to remove the drum unit, see ⇒ P.49 “Changing The Color Drum Unit”.

  • Page 116: X" +"Delivery Jam. Remove Jammed Paper

    WHAT TO DO IF SOMETHING GOES WRONG D Re-insert the drum unit until the drum unit locks in position and put the lever back in place. TSLH028E x ” +“DELIVERY JAM. REMOVE JAMMED PAPER” “x Remove the misfed paper. TSLH02FE Note Make sure that the paper delivery end plate and paper delivery side plates are in the proper position.

  • Page 117: When The Open Cover/Unit Indicator (M) Blinks

    When The Open Cover/Unit Indicator (M) Blinks When The Open Cover/Unit Indicator (M) Blinks MMake sure that the following door/units are closed. Original Table Close the original table until it locks in position. TSLH025E Front Door Close the front door completely. TSLH024E ADF Unit (Option) Close the ADF unit until it locks in position.
  • Page 118 WHAT TO DO IF SOMETHING GOES WRONG Make sure that the drum is completely set in position. • Set the drum unit completely until it locks in position. TSLH028E...

  • Page 119: When The Master Eject Indicator (K) Blinks

    When The Master Eject Indicator (k) Blinks When The Master Eject Indicator (k) Blinks The Master Eject indicator (k) and the Reset indicator blink when it is time to empty master eject box or when you need to set the master eject box. Take out the master eject box and remove the used masters.

  • Page 120: When Other Indicators Blink

    WHAT TO DO IF SOMETHING GOES WRONG When Other Indicators Blink The key counter (option) is not set. Insert the key counter. Set the key counter TSLP017E...

  • Page 121: When The Prints Are Thrown Over The Paper Delivery Table

    When The Prints Are Thrown Over The Paper Delivery Table When The Prints Are Thrown Over The Paper Delivery Table Reduce the printing speed by pressing the { { { { W W W W } } } } key. TSLS017E...

  • Page 122: Poor Printing

    WHAT TO DO IF SOMETHING GOES WRONG Poor Printing Dirt On The Back Side Of Paper GRDIRT0E Note When you use paper smaller than the original, select the proper reduction ra- tio. Otherwise, you might get dirty background prints. When you use postcards and the like, the background might be dirty because postcards do not absorb ink well.
  • Page 123 Poor Printing Reference See ⇒ P.49 “Changing The Color Drum Unit” for the details. Clean the pressure roller with a clean cloth. TSLH01NE With a clean cloth, remove any ink that has accumulated on the trailing edge of the drum unit. TSLH02CE Insert the drum unit until it locks in position, then lower the drum unit lock lever.

  • Page 124: Dirt On The Front Side Of Paper (Black Line/Stain)

    WHAT TO DO IF SOMETHING GOES WRONG Turn on the main switch. O f f TSLH01RE Dirt On The Front Side Of Paper (Black Line/Stain) GRBLAC1E Note When black lines or stains still appear on prints even if you clean the above, contact your service representative.
  • Page 125 Poor Printing • Make sure that the paper feed side plates touch the paper lightly. Put back the lock lever. TSLY015E • When you use the optional document feeder, make sure that the original guides contact the originals lightly. When you get white or incomplete prints even if you check the items above, per- form the following procedure.
  • Page 126 WHAT TO DO IF SOMETHING GOES WRONG Remove paper that is stuck to the drum. TSLH031E Insert the drum unit until it locks in position, then lower the drum unit lock lever. TSLH028E Close the front door. TSLH024E...

  • Page 127: Remarks

    6. REMARKS Operation Notes General Cautions • While printing, do not turn off the main switch. • While printing, do not open the door or covers. • While printing, do not unplug the power cord. • While printing, do not move the machine. •...
  • Page 128 REMARKS • If the machine is not used for a long period, the image density might decrease because the ink on the drum might dry. Make extra prints until the image density recovers. • When the machine is used in low temperature conditions, the image density might decrease.

  • Page 129: Print Paper

    Operation Notes • The image density varies according to the printing speed and the room tem- perature. So, adjust the printing speed or increase the room temperature. • When you make a lot of prints from a small image, ink might ooze out from the edges of the master, especially under high temperature and when print- ing in two or more colors.
  • Page 130 REMARKS • If you do not open the platen cover at an angle of more than 25 degrees with the exposure glass when you replace originals. • If the machine is installed under a strong light.

  • Page 131: Where To Put Your Machine

    Where To Put Your Machine Where To Put Your Machine Your machine's location should be carefully chosen because environmental con- ditions greatly affect its performance. Environmental Conditions Optimum environmental conditions R CAUTION: • Keep the machine away from humidity and dust. A fire or an elec- tric shock might occur.

  • Page 132: Power Connection

    REMARKS Power connection R WARNING: • Only connect the machine to the power source described on the inside front cover of this manual. • Avoid multi-wiring. • Do not damage, break or make any modifications to the pow- er cord. Do not place heavy objects on it, pull it hard or bend it more than necessary.

  • Page 133: Access To Machine

    Where To Put Your Machine Access to machine Place the machine near the power source, providing clearance as shown. Main Frame GRINST0E More than 20 cm, 8.0" More than 60 cm, 23.7" More than 60 cm, 23.7" More than 60 cm, 23.7"...

  • Page 134: Maintaining Your Machine

    REMARKS Maintaining Your Machine To maintain high print quality, clean Clean the platen cover with a the following parts and units regular- damp cloth and wipe it with a dry cloth. Main Frame Exposure Glass Lift the platen cover or document feeder.

  • Page 135: Optional Document Feeder

    Maintaining Your Machine Optional Document Feeder Separation Roller Open the ADF unit. Clean the separation roller with a damp cloth and wipe it with a dry cloth. TSLH016E Note If you do not clean the separa- tion roller, original misfeeds tend to occur.

  • Page 136: Combination Chart

    REMARKS Combination Chart This combination chart shows which modes can be used together. means that these modes can be used together. × means that these modes cannot be used together. 9 10 11 12 13 14 × × Reduction × ×...

  • Page 137: Specification

    7. SPECIFICATION Main Frame Configuration: Desk top Printing Process: Full automatic one drum system Original Type: Sheet/Book Original Size: Maximum 257 mm × 364 mm, 10.2" × 14.4" Pixel Density: 300 dpi (in Fine mode 400dpi) Image Mode: Photo mode (Sand pattern) Letter mode (Standard mode) Letter/Photo mode Reduction Ratios:...
  • Page 138 SPECIFICATION Leading Edge Margin: 5 mm ± 3 mm, 0.2" ± 0.12" Print Paper Weight: 47.1 g/m to 157.0 g/m , 12.5 lb to 41.7 lb Print Speed: 80 – 120 rpm (3 steps) First Copy Time (Master Process Time): "...
  • Page 139 Main Frame Weight: • Main Frame: 65 kg, 143.3 lb • Main Frame with optional document feeder: 68 kg, 150.0 lb Noise Emission: Sound Power level (The measurements are made according to ISO 7779.) Printing Speed 80 rpm 81 dB (A) 100 rpm 82 dB (A) 120 rpm...

  • Page 140: 30 Originals Document Feeder

    SPECIFICATION 30 Originals Document Feeder Original Type: Sheet Original Weight: • When setting a stack of originals: 50 – 90 g/m , 13.3 – 23.9 lb • When setting one sheet at a time: 40 – 120 g/m , 10.6 – 31.9 lb Original Size: Max.

  • Page 141: Consumables

    Consumables Consumables Name Size Remarks Master for B4 drum Length: 125 m, 410 ft/roll 260 masters can be made per roll Width: 280 mm, 11.0" 2 Rolls/case Master for A4 drum Length: 125m, 410 ft/roll 300 masters can be made per roll Width: 240 mm, 9.5"...

  • Page 142: Index

    INDEX Symbols Drum Unit Lock Lever , x {W} or {V} key , 13 {Economy} key , xii , 24 Economy Mode , 24 Accessing Service Programs , 53 Edge Erase , 19 Access to machine , 111 {Enlarge} key , xii , 16 ADF Unit , 41 Enlargement , 15 ADF Unit Open Lever , 41...
  • Page 143 {Program} key , xiii , 36 Machine Interior , x {Proof} key , xiii Main Frame , 112 , 115 Main Switch , x Protecting A Program , 38 Maintaining Your Machine , 112 Making Color Prints , 49 Master Eject Indicator , 97 Recalling A Program , 37 Master Roll Replacement , 74 {Reduce } key , xii , 16...
  • Page 144 When The Add Ink Indicator (j) Blinks , 71 Where To Put Your Machine , 109 White Prints Or Incomplete Prints , 102 C231...

This manual is also suitable for:

Priport jp1050

Table of Contents
