H4010

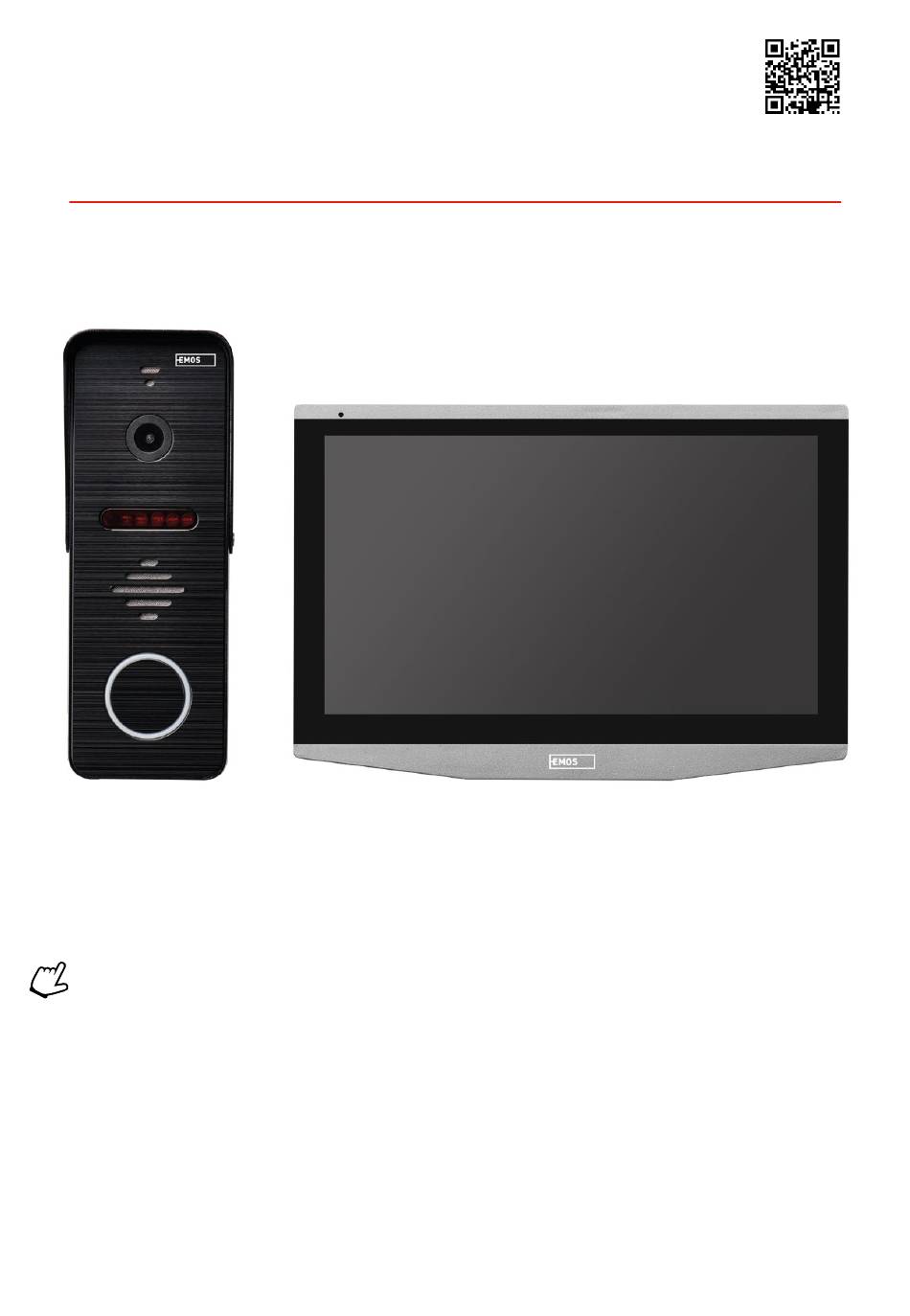

GB | IP-700A GoSmart 7" Video Door Phone Set
Contents
Safety Instructions and Warnings .....................................................................................2
Package Contents .............................................................................................................3
Technical Specifications ....................................................................................................3
Device Description .............................................................................................................4
Installing the Device ..........................................................................................................6
Installing the Application ................................................................................................10
Controls and Functions ...................................................................................................15
Advanced Connection Options .........................................................................................21
Troubleshooting FAQ ........................................................................................................30
GB | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoSmart IP-700A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emos GoSmart IP-700A

Summary of Contents for Emos GoSmart IP-700A

  • Page 1: Table Of Contents

    H4010 GB | IP-700A GoSmart 7" Video Door Phone Set Contents Safety Instructions and Warnings ..................2 Package Contents ......................3 Technical Specifications ....................3 Device Description ......................4 Installing the Device ......................6 Installing the Application ....................10 Controls and Functions ....................15 Advanced Connection Options ..................21 Troubleshooting FAQ ......................30 GB | 1...

  • Page 2: Safety Instructions And Warnings

    Do not disassemble, repair or modify the device yourself. Doing so may cause a fire, injury by electric current or permanent damage. EMOS spol. s r.o. hereby declares that radio device type H4010 complies with directive 2014/53/EU. The full wording of the EU declaration of conformity is available at http://www.emos.eu/download.

  • Page 3: Package Contents

    Storage: SD card (max. 128 Gb, min. Class 10, FAT32), option to expand with cloud storage directly in the EMOS GoSmart app Enclosure rating: IP55 APP: EMOS GoSmart for Android and iOS Connection: 2.4 GHz WIFI (IEEE802.11b/g/n) GB | 3...

  • Page 4: Device Description

    Device Description Description of the Indoor Unit 1 – Microphone 2 – IPS screen 3 – slot for SD card 4 – Speaker 5 – Anchor points 6 – Gate controls 7 – Power supply 8 – Door unit – Entrance 1 9 –...
  • Page 5 × 12 V DC EXIT ALARM Description of Wiring Door Camera Unit 1 – Red – 12 V 2 – White – audio 3 – Black – GND 4 – Yellow – video 5 – Green – normally closed (NC) relay contact 6 –...

  • Page 6: Installing The Device

    Pushing the monitor slightly downwards will fix it in place. Recommendation: Cable management will be easier if you install junction box A9457 (common number of the product on the EMOS website). Attention: •...
  • Page 7 Installing the Indoor Unit 1. Choose a suitable mounting spot and attach the mounting frame. 2. Pull the power supply cable through the mounting opening and connect it to the terminal on the back of the door camera unit. 3. Mount the connected door camera unit onto the mounting frame using the enclosed screws. 4.
  • Page 8 Setting Volume and Unlock Duration 1 – Button for setting the duration (1–10 s) for opening the door lock 2 – Setting Volume for the Camera Unit • If you find the door unlock time unsuitable and would like to extend or shorten it, you can do so using the potentiometer hidden on the back of the outdoor unit under a rubber insert.
  • Page 9 DC12V DC12V AUDIO AUDIO VIDEO VIDEO power audio video EXIT Connecting Cabling When using a CAT5 or CAT6 network cable, the effective distance from the outdoor camera to the farthest outdoor monitor will be limited. If using an unshielded network cable, the maximum distance is 20 m. For a shielded network cable, the maximum distance is 40 m.

  • Page 10: Installing The Application

    Installing the Application Starting the System – EZ mode Step 1: Device ID is an important part of configuring the device in the system. Without the correct ID configuration the device will not work properly. If the current MASTER device is connected to outdoor unit 1, its ID must be set as 1 and the other SLAVE monitors must be set to 2/3/4/5/6 in order for everything to work correctly.
  • Page 11 Step 2: The input video signal must be set correctly, otherwise the image will not display properly. If you are using the original outdoor unit included with the main unit, leave the signal mode set to PAL and its type set to AHD1080. If you are using a different device or are unsure about resolution, you can use the automatic detection feature.
  • Page 12 Steps on the phone GB | 12...
  • Page 13 Starting the System – AP Mode If you have been unsuccessful in pairing the device using EZ mode, you can also pair it using AP mode. In AP mode, the device creates its own Wi-Fi hotspot, which you can then connect to using your phone and pair the device that way.
  • Page 14 In step connect your mobile phone to the Wi-Fi network broadcast directly from device H4010; the network name will be SmartLife-XXXX. The password for the network is stated on the monitor when selecting AP pairing mode. The default password is 12345678. GB | 14...

  • Page 15: Controls And Functions

    Controls and Functions Description of Icons on the Home Screen 1 – Motion detection on individual channels Red colour indicates that detection is active; if the icon is grey, it means the motion detection is turned off for the camera. 2 –...
  • Page 16 Description of Icons in the Application Channel switching Mute Zoom Fullscreen mode Take pictures using the app and save them in the mobile album Speak Capture video using the app and save it in the mobile album Play video stored on the SD card View videos and photos taken through the app Light mode / dark mode Open the lock...
  • Page 17 Advanced Device Settings in the App You can view additional setting options by tapping the 3 dots in the top right corner. • Device information – Basic information about the device and its owner • Tap-to-Run and Automation – View scenes and automations assigned to the device.
  • Page 18 Description of Icons in the Application during a Call These icons are used if you answer a call to the device through your phone. End the call Answer the call If you wish to unlock the gate or door without having to answer the call, slide your finger up in the menu.
  • Page 19 Main Menu Styles Here you can choose from 3 different graphical styles for the monitor’s main menu. Android menu: Standard menu: Windows menu: GB | 19...
  • Page 20 Description of Main Menu Icons System settings Settings for device parameters (E.g. gate unlock duration) Ringtone settings Play back recordings Play multi-media files Intercom Unlock the door "Home" mode "Away" mode "Do not disturb" mode Outdoor camera unit Security camera Intercom Function The intercom function allows you to communicate between interconnected indoor units.

  • Page 21: Advanced Connection Options

    Advanced Connection Options power audio MENU -> ID: 2 video MENU -> ID: 1 Connection of 2 independent entrances and an intercom for a single housing unit. GB | 21...
  • Page 22 power audio video EXIT EXIT Connection of 2 independent entrances for 2 independent housing units. GB | 22...
  • Page 23 power audio video Connection of 2 independent entrances for 4 independent housing units. GB | 23...
  • Page 24 power audio video 12 V DC bílá růžová Distribution box Cable duct black = control circuit grey (blue) = minus brown = plus Optional: use of cable disconnection plugs (included in delivery) Connection of a single housing unit with a single independent entrance in combination with a H8011 keypad and G.U-SECURY lock.
  • Page 25 ID: 1 (master) ID: 2 (slave) EXTRA ALARM PIR detect. CCTV Signal: AHD – analog HD CVBS – analog TVI, CVI EXTRA ALARM PIR detect. CCTV Signal: AHD – analog HD CVBS – analog TVI, CVI 12 V DC power audio video Connection of 2 independent entrances with a H8011 keypad and CCTV cameras for a single housing unit...
  • Page 26 Flash FLASH ELECTRONIC LOCK/OGI Photo Test +24 V DC Common PHOTO Photo PHOTO1 Photo1 L2 L1 Open AERIAL 12 V DC power audio video Connection of a single independent entrance in combination with a H8011 keypad and a WINGO NICE 2024 KCE gate drive for a single independent housing unit.
  • Page 27 power audio video Relay 12 V EXIT ELEKTROBOCK CZ ZV2 Econom ZV2-1 Gong ZV2-3 Gong ZV2 Melody Connection of a single independent entrance with a push to exit button and an additional ELEKTROBOCK ZV2 indoor bell for a single independent housing unit. GB | 27...
  • Page 28 power audio video shielding FTP CAT.5 / CAT.6 EXIT Connection of a single independent entrance with a push to exit button for a single independent housing unit. Interconnection using an FTP cable. Bilateral shielding connected to GND. GB | 28...
  • Page 29 power audio video EXIT DC ON V Adj. H7009 (12 V/5 A) 230 V Connection of a single independent entrance with a push to exit button for 2 independent housing units. Powered via a H7009 DIN-rail power supply mounted in the electrical cabinet. ATTENTION: Do not interconnect master monitors with one another.

  • Page 30: Troubleshooting Faq

    Troubleshooting FAQ The devices are not pairing. • If you are having trouble pairing the devices, first try resetting the monitor to factory settings two or three times (Settings -> factory settings -> OK). • Make sure you are using a 2.4 GHz Wi-Fi network. •...
  • Page 31 Is it possible to connect an RFID reader from the other side as exit authentication? • A push to exit button located on the inside by the door would be sufficient in that case. Or you can buy a H8011 keypad (must be connected to power); adapter for it is not included. When the SD card’s memory is full, are the oldest recordings automatically overwritten or do I have to delete them manually? •...
  • Page 32 GB | 32...
