Commax CDL-200P User Manual page 2

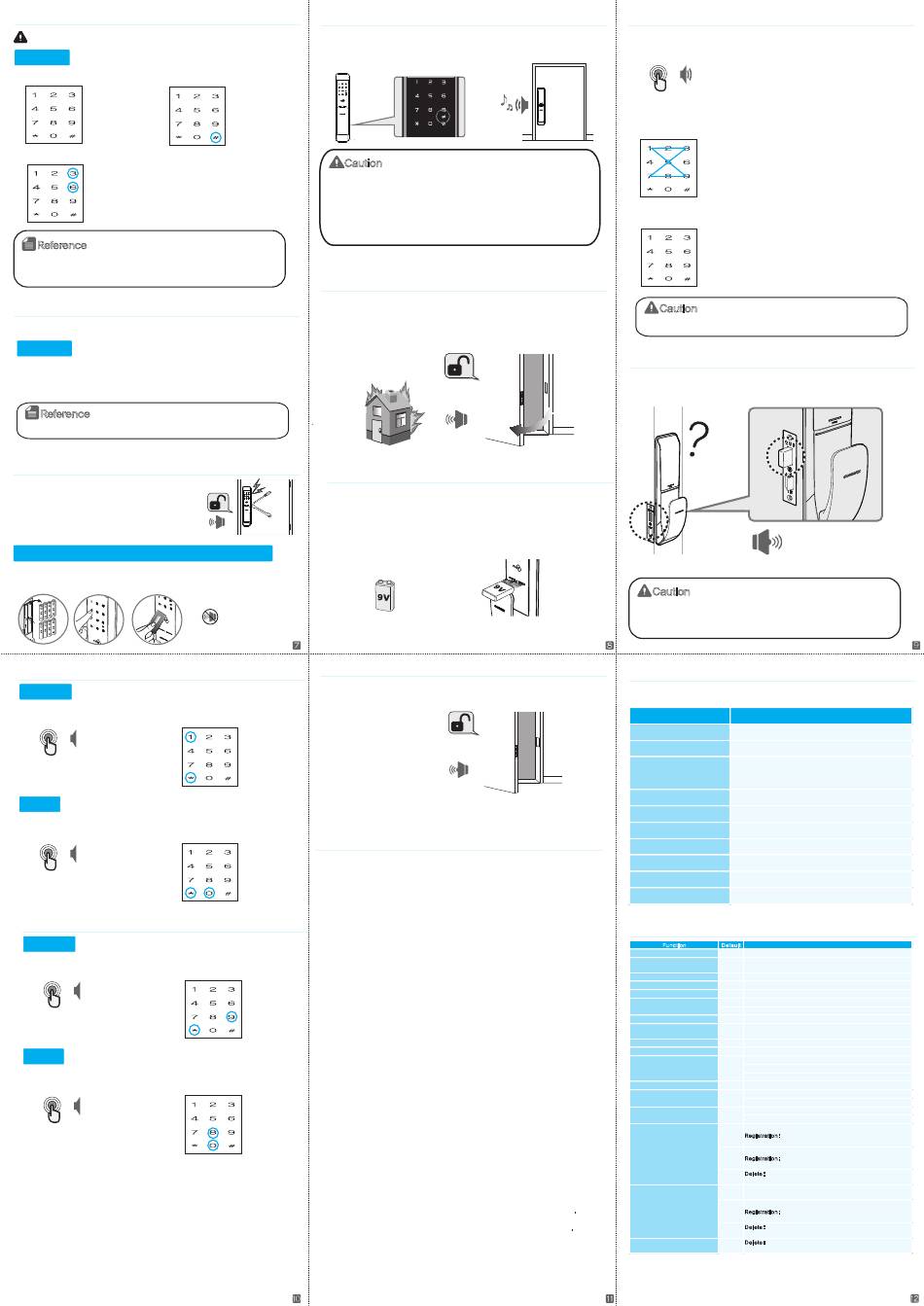

Volume Adjustment
Deadbolt of indoor unit must be come out from mortise before setting
How to
1. Enter Password
2. Press [#] button
Touch the number
plate and enter your
password
3. Press [3] or [6] to adjust volume
[3] for volume up
[6] for volume down
Reference
1. Available total 8 levels of volume sound
2. If sound pause mode, numbers are only flicking without sound
Sound Pause Mode
Temporary silence function (1 time) regardless latest volume setting
How to
1. Touch number plate and press [#]
2. Press [*] after password or, contact smart key to open the door.
Reference
Sound is back to the original volume if pause mode is operated once
Burglar Alert
If door to be opened by abnormal operation such
as door gap break through, burglar alert rings
with more than 80db noisy sound.
How to deactivate burglar or temperature alert
Remove batteries or [password + *] , [Smart key touch]
* if temperature is too high, no deactivation.
How to register/delete ZIGBEE
Register
1. Press [registration] button 2. Press [1]button twce
for 5 seconds
then press [*]
Beep
Open the battery cover and
press [registration]button
Delete
1. Press [registration] button 2. Press [0]button twce
for 5 seconds
then press [*]
Beep
Open the battery cover and
press [registration]button
How to register/delete BLE
Register
1. Press [registration] button 2. Press [9]button twce
for 5 seconds
then press [*]
Beep
Open the battery cover and
press [registration]button
Delete
1. Press [registration] button 2. Press [0]button twce
for 5 seconds
then press [*]
Beep
Open the battery cover and
press [registration]button
Battery Replacement Alert
If battery alert light is on on number plate or beep sounds ring, battery has to
be replaced. All batteries must be replaced with new one at once.
Caution
1. Lifetime of battery can be varied according to manufacturers, date of production,
working condition. (Expected lifetime : 10 months assuming no wireless operation,
AA type alkaline 8ea, 10 times per one day use)
2. If battery liquid leaks out, product can be damaged. Regular checking is
recommended – every 6 months.
3. Battery lifetime might be shortened if wireless module is activated.
High Temperture Alarm
Once extremely high temperature is detected (60℃± 10℃), locker is automatically
released to open the door with huge sound to secure user's safety.
Emergency Power
When door can not be opened due to fully discharged battery.
1. Contact the terminals of 9V battery to emergency power outlet
Press [Password] and [ * ] to open the door while contacting
terminals of 9V battery to emergency power outlet.
9V emergency battery
(sold separately)
Door Open Alert during automatic lock setting
To inform door open status during automatics lock
setting, alert sound rings 2 times with each 15 seconds
interval if door opened.
Regulatory Compliance
This product complies with standards established by the following regulatory bodies:
• Federal Communications Commission (FCC)
• Industry Canada
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet ona circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
IMPORTANT ! Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement
The equipment complies with FCC Radiation exposure limits set forth for uncontrolled
environment. This equipment should be installed and operated with minimum distance 20 cm
Industry Canada
This device complies with Industry Canada licenceexempt RSS standard(s). Operation is subject
to the following two conditions:
( 1 ) this device may not cause interference, and ( 2 ) this device must accept any interference,
including interference that may cause undesired operation of the device.
This device complies with ISED radiation exposure limits set forth for an uncontrolled environment
and meets the ISED radio frequency (RF) Exposure Guidelines. It is desirable that it should be
installed and operated keeping the radiator at least 20 cm or more away from person's body.
Canada, avis d'Industrie Canada (IC)
Cet appareil est conforme aux normes RSS exemptes de licenced'Industrie Canada.
Son utilisation est soumise aux deux conditions.
suivantes : (1) cet appareil n'engendre pas d'interférences, et (2) cet appareil doit tolérer tout type
d'interférences, notamment les interférences pouvant provoquer une utilisation non désirée
del'appareil.
Cet équipement est conforme aux limites établies par Industrie Canada en matière d'exposition
aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé
avec une distance minimale de 20 cm entre le radiateur et votre corps.between the radiator and
your body.
Factory Reset Mode
1. Press [Registration] button.
Open the battery cover and
press [Registration] button for 5 secs
BEEP
2. Enter "123578951" when number plate lights on
3. Press [#] button for 2 secs.
Factory default mode is completed with beep sound.
Caution
1. All settings back to the default after factory reset including master
information
Deadbolt Jam alert
When deadbolt is jammed during door open/close, alert sound of
bee bee bee bee" rings 3 times.
Caution
1.If no sound deactivation or door lock malfunction, product installed position
has to be adjusted. Please contact your local installer or service provider.
Self-Diagnosis Table by each LED number flicking
To see the status of product by means of checking flicking number
ACTION SELF-DIAGNOSIS
Flicking ALL LEDs - Anti-mischief alert and 1 minute pause
Flicking LED number 2 - Error on password
- Full of registered password
Flicking LED number 3
Flicking LED number 4 - Deadbolt Jam
Flicking LED number 5 - Burglar Alert
Flicking LED number 6 - Unregistered password
Flicking LED number 7 - Already registered address
Flicking LED number 8 - Fire Alarm
Flicking LED number 9 - Dual lock from Indoor unit
Flicking LED number 0
Summary of how to use
Function D efault
Password registration/change 1234 [Registration] ⇒ [1] ⇒ Password to register ⇒ [*] ⇒ [*]
[Registration] ⇒ [2] ⇒ Smart key touch to smart key input unit ⇒
Smart key registration None
[Registration]
Delete all card [Registration] ⇒ [7] button ⇒ [#] button More than 5 seconds
Open the door indoors Turn down the doorlock handle
Close the door indoors Press the [Doublel Lock]
Password: Touch the Number Plate ⇒ Password ⇒ [*]
Open the door outdoors
Smart key: Smart key touch to smart key input unit
Close the door outdoors After closing the door, Touch the Number Plate
Set registration
Off Password ⇒ [#] [#] ⇒ [8]
authenitication mode
Internal dual lock LED setting Password ⇒ [#] [#] ⇒ [5]
Double lock setting Off Hold the [Double lock] of indoor doorlock for 3 seconds
1. Turn down the indoor doorlock handle
Release internal Double lock
2. Press the [Double lock] of indoor doorlock
3. Password ⇒ [#] ⇒ [9]
Etiquette mode function [#] ⇒ Enter password ⇒ [*]
Volume up: Password ⇒ [#] ⇒ [3]
Buzzer volume setting
Volume down: Password ⇒ [#] ⇒ [6]
Indoor: Remove the battery
Release alram sound
Outdoor: Password ⇒ [*]
* Without registered master password
Registration: [Registration] ⇒ [1] ⇒ [Double lock] ⇒ [#] 5times
⇒ [New master password] ⇒ [*]
Register and delete master
* When there is a registered master password
password
Registration: [Registration] ⇒ [1] ⇒ [Double lock] ⇒ [#] 5times
⇒ [Master password] ⇒ [*] ⇒ [New master password] ⇒ [*]
D elete: [Registration] ⇒ [1] ⇒ [Double lock] ⇒ [#] 5times ⇒
[Master password/9635741] ⇒ [#] ⇒ [1] ⇒ [#]
* Without registered master password
Can't register
* When there is a registered master password
Register and delete master card
Registration: [Registration] ⇒ [1] ⇒ [Double lock] ⇒ [#] 5times
⇒ [Master password] ⇒ [*] ⇒ [New master card] ⇒ [*]
D elete: [Registration] ⇒ [1] ⇒ [Double lock] ⇒ [#] 5times ⇒
[Master password/9635741] ⇒ [#] ⇒ [2] ⇒ [#]
Delete all master passwords and D elete: [Registration] ⇒ [1] ⇒ [Double lock] ⇒ [#] 5times ⇒
cards [Master password/9635741] ⇒ [#] ⇒ [3] ⇒ [#]
