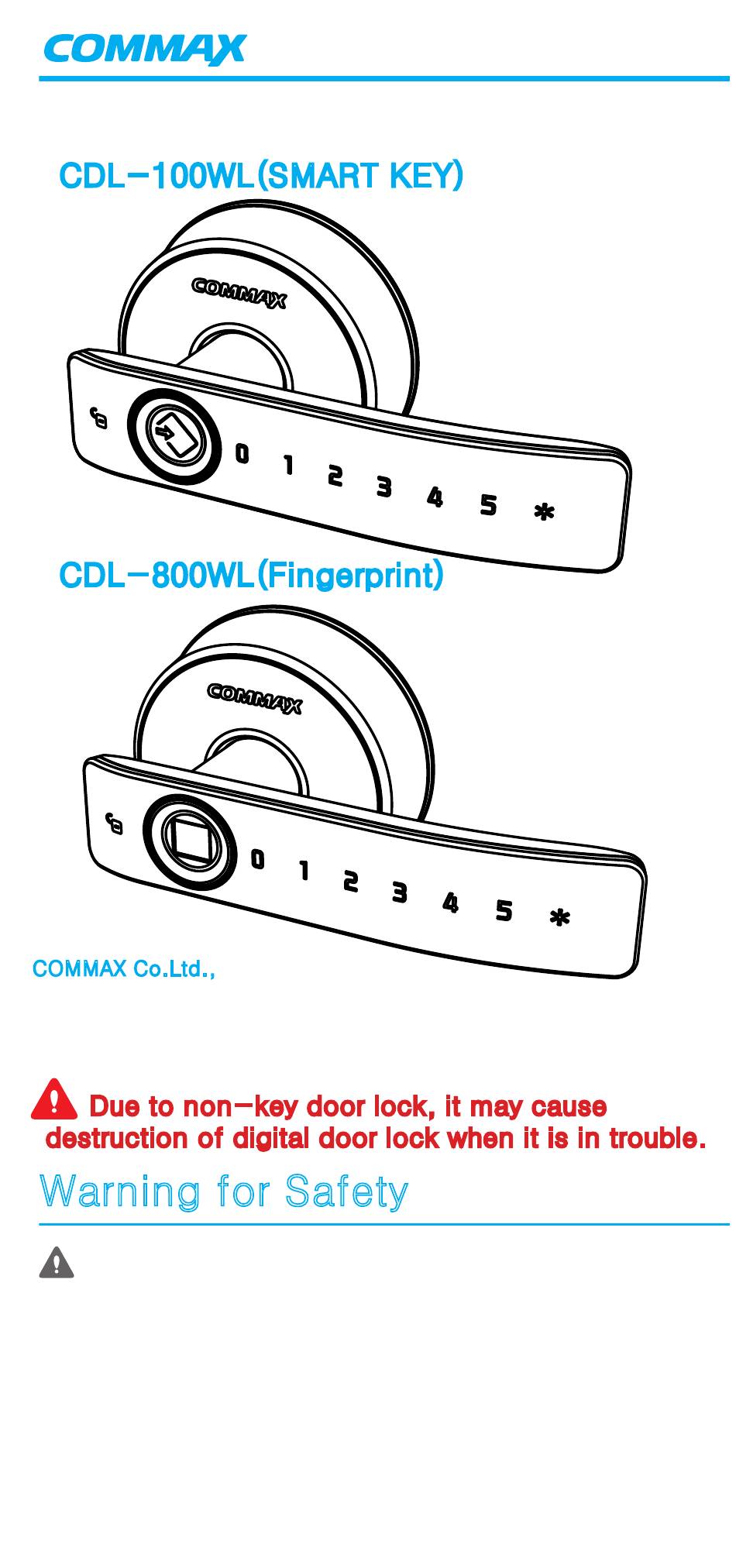

USER MANUAL

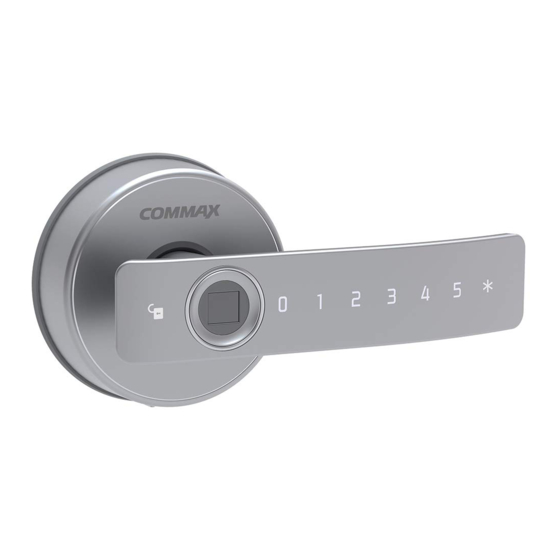

CDL-100WL(SMART KEY)
CDL-800WL(Fingerprint)
COMMAX Co.Ltd.,
Thank you for purchasing COMMAX products.
Please carefully read this User's Manual(in particular, precautions for safety) before using a product and follow
instructions to use it correctly. The company is not responsible for any safety accidents caused by abnormal
operation of the product.
Due to non-key door lock, it may cause
destruction of digital door lock when it is in trouble.
Warning for Safety
These warnings are to secure user's safety and prevent the possible loss of property.
Please read carefully below to use the product in a correct manner.
* Do not disassemble, repair or modify the device by any unauthorized person.
* This product is for indoor, we do not guarantee any operation at other environment.
* Please use the product after reading User's Manual.
* Do not press the buttons with any tools(Ex. Awl, Pins..)
* Change your password from time to time for your safety.
* Do not impact on the device.
* Be careful that leakage or rupture may occur when inserting a battery in wrong direction.
* Be careful that water should not seep into the device.
* When replacing a battery, change all the batteries with new alkaline batteries.
* Please wipe the product with soft, dry towels.
* Do not use this product with other purposes except digital door lock function.
Advertisement
Table of Contents
Related Manuals for Commax CDL-100WL
Summary of Contents for Commax CDL-100WL
- Page 1 CDL-800WL(Fingerprint) COMMAX Co.Ltd., Thank you for purchasing COMMAX products. Please carefully read this User’s Manual(in particular, precautions for safety) before using a product and follow instructions to use it correctly. The company is not responsible for any safety accidents caused by abnormal operation of the product.
-
Page 2: Product Specifications
Temperature Alarm Temperature sensor 60‘C ± 10’C Out body AL,ZN,ABS,PC Material In body AL,ZN,ABS,PC CDL-100WL(Smart Key, Anti-fireproof type, Non-key type, Master key door lock) Type of product CDL-800WL(Fingerprtint, Anti-fireproof type, Non-key type, Master key door lock) Outbody Striker Screw Inbody... - Page 3 2. Do not use consecutive number for your password. How to Register Your Smart Key(CDL-100WL) When registering or re-registering a smart key, you must register all your keys together. Other smart key or transportation card will not be registered.
- Page 4 How to Delete Your Smart Key(CDL-100WL) 1. Press [Register] button 2. Press [5] on the main parts (Outside) 0 1 2 3 4 5 * Beep Open the battery cover inside of the main part and press [Register] button. 3. Press [*] on the main parts for 5 sec. (Outside)
- Page 5 How to Unlock from Outside(password) 1. Press [Start] button. 2. Enter your password 0 1 2 3 4 5 * Beep Press [Start] button from Enter registered password when LED the outdoor handle. light is on. 3. Press [*] button. 0 1 2 3 4 5 * When you press the button, the door will be opened with confirmation tone.
- Page 6 How to Set Dual Lock Function This function is to prevent the door opening even with a password or fingerprint from outside the door. 1. How to set dual lock function Press [Dual Lock] button for 3 seconds from inside Beep [Dual Lock] while the door is locked.
- Page 7 How to Register/Delete 3D Touch 1. Press [Start] button. 2. Enter password. 0 1 2 3 4 5 * Beep Press [Start] button from Enter registered password when LED light is on. the outdoor handle. 3.Press [Start] button. 0 1 2 3 4 5 * Beep Beep [Register]...
- Page 8 Alarm Alert for Battery Replacement When warning light is on the number plate after operation or if you hear ‘Beep, Beep, Beep’ sounds, you need to change the battery. At this time, you need to replace all the batteries for new one. Warning 1.
- Page 9 Setting/Deleting Register Authentication 1. Press [Start] button. 2.Enter password. 0 1 2 3 4 5 * Beep Press [Start] button from Enter registered password the outdoor handle. when LED light is on. 3. Press [Start] button. 0 1 2 3 4 5 * Beep Beep [Register]...
- Page 10 Setting the sound temporary pause You can set the sound temporary pause at once whatever you have set the sound volume. Settings 1-1. Press [Start] button on outer body 2times After pressing password, press [*] button 1-2. Press [Start] button on outer body 2times Contact [fingerprint] or [smart key] to unlock the door This is for only once, you will hear the operating Note...
- Page 11 Factory Reset Mode 1. Press [Register] button 2. When all the lamp on for 5 sec. [number plate] is on, enter “01234543210”. Beep 0 1 2 3 4 5 * Open the battery cover inside of the main part and press [Register] button for 5 sec.
- Page 12 Smart key regi s trati o n(CDL-100WL) [Regi s trati o n] ⇒ [2] ⇒ Contact Smart key Del e te al l S mart key(CDL-100WL) [Regi s trati o n] ⇒ [5] ⇒ [*] button More than 5 seconds...
