Commax CDL-210P User Manual

CDL-210P
USER MANUAL
Durable Door lock
Metal body
Additional number entry for secure password
Multiple passwords can be registered
Multi-level volume control / Selectable silence function
Light-up buttons for visibility
Emergency power function (9V battery)
High-voltage protection/Fire protection/Anti-hack system
Simple registration
Remote control using ZIGBEE
COMMAX Co., Ltd.
Thank you for purchasing COMMAX products.
Please red this manual before use.
Commax is not responsible for any safety issues
due to abnormal operation of
the product
This lock does not come with a physical key and
in the rare event of failure, may require the destruction
of the lock for removal and replacement.
Safety Warning
These warning are to ensure the secure operation of the lock.
Carefully read the instructions below
* No unauthorized person should disassemble, repair or modify the device.
* This product is for indoor use.
* Please read the User Manual before useing product.
* Do not press the buttons with any sharp objects
* Change your access code from time to time for your safety.
* Do not impact the device.
* Be careful of leakage or rupture that may occur when inserting a battery in wrong direction.
* Prevent the device coming in contact with water
* when replacing a battery, change all the batteries with new alkaline batteries.
* Please wipe the product with soft, dry towels.
* Please keep product warranty card for after service.
* Do not use this product for other purposes than digital door lock function.
How to register and change password
Be sure to register your password with the door open.
1. Press 2. Press [1]button in the number
[registration] button
plate of outdoor side
Beep
Open the battery cover and
press [registration]button
3. Enter new password
After entering the new password(4~12 digits),
press * button and the confirmation tone sounds
and registration is completed. Press the * button
once more to end registration.
Reference
1. When adding the password, repeat the above item 3 before the key pad
turns off.
2. Up to 4 password can be registered
Cautions
1. If you register a new password, the existing password will be automatically
deleted.
2. Do not use consecutive numbers when registering your password.
How to register smart key
1. Press 2. Press [2]button in the number
[registration] button
plate of outdoor side
Beep
Open the battery cover and
press [registration]button
3. Contact smart key to smart key input unit
If you touch the smart key to be registered one by one,
you will hear a confirmation sound every time you touch it.
Registration is completed by clicking the [Registration]
button on the indoor side body.
Reference
1. When adding the smart key, please repeat the above item 3 before the
[Number plate lamp] turns off.
2. Up to 30 smart keys can be registered.
Cautions
1. When registering a new smart key, the existing smart key is automatically
deleted.
Products specifications and components
Sort
Password 4-12 digits (Up to 4 can be registered)
Opening method RF key
Fingerprint
Rated voltage DC 6V LR6 1.5V AA sized alkaline batteries 8
Emergency power DC 9V Alkaline batteries 8 (Separate purchase)
Type of product
Fire-proof, Temperature-sensitive form, None-key, Primary keylock / F-T-NK-M
High temperature
Temperature sensor type
sensing
Out body
material
In body
Mortise & Stricker Screw
Inbody
Outbody
8 Batteries Construction diagram 4 Smart key
*The components of the product may change depending
on the installation environment.

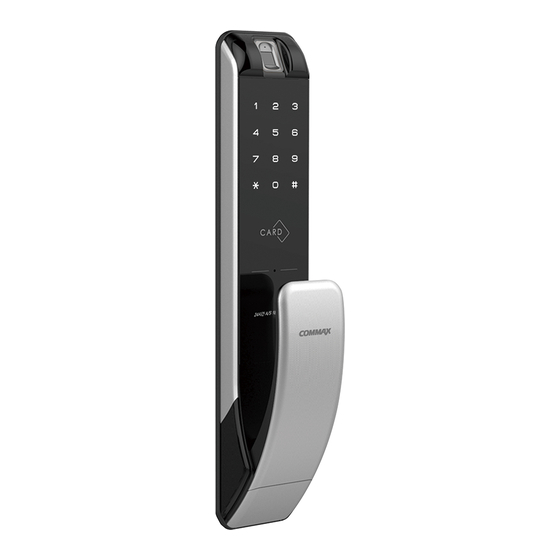

Outdoor Names and Functions
No Name
1 Number plate Enter the number when registering or changing password.
2 Battery warning light Turns on with an audible alarm at low voltage.
3 Outdoor handle It is Used to open or close doors from outdoors.
Emergency In case the battery is completely discharged, you can
4
power terminal use 9V battery then, the power will be on.
You can register your fingerprint, open the door by
5 Fingerprint input unit
using the fingerprint registered.
It is the place where smart keys are recognized to
6 Smart key input unit open the door. You can open the door by registering
the smart key or touching the registered smart key.
9V emergency battery
(Separate purchase)
How to register fingerprint
1. Press 2. Press [4]button in the number
[registration] button
plate of outdoor side
Beep
Open the battery cover and
press [registration]button
3. Contact fingerprint to be registered to fingerprint input unit
After contacting the fingerprint to the fingerprint
input part four times, register the registration
by pressing the [register] button on the room body.
Reference
1. Up to 100 fingerprints can be registered.
2. If registration is not in progress for 20 seconds, registration will be canceled.
How to delete fingerprint, smart key
1. Press
2. Press number in the number plate
[registration] button
- Delete fingerprint: No 9.
- Delete smart key: No 7.
Beep
Open the battery cover and
press [registration]button
3. Press [#]button
Press and hold the [#] button for 5 seconds to delete
the registered fingerprint or smart key
Open the door in outside
Open the door by password
Method 1
1. Enter password 2. Press [*]button
Touch the number
plate and enter your
password
Indoor Names and Functions
Specifications
No
1
It can register within 30
It can register within 100 2
3 Registration button(R) Used to register or change password or smart key
4
60℃ ± 10℃
5
(Square locking type)
AL,ZN,ABS,PC
6
AL,ZN,ABS,PC
7 Alkalina AA battery
Double lock button
8
Installation
User manual
instruction
Outdoor shaft
Specifications
Method 2
1. Contact registered fingerprint to fingerprint input unit
Method 3
1. Contact smart key to smart key input unit
Locking door from inside and outside
Press the [double lock] button
on the inside
Internal double lock setting
It is a function that can not open a door with a password or a smart
key outside the door.
Setting
1. While the door is locked, press and hold the [double lock]
button for 3 seconds
How to release internally
1. Pull the indoors handle
Press the [*] button,
Deactivation from outdoor unit
you will hear a
1. Enter Password
confirmaion tone and
then the door will open
Name Specifications
This cover protects the batteries and the
Battery cover
registration button.
Indoor handle Used to open or close the door indoors.
Mortise Closes or locks the door
Dead bolt
It locks the door
Latch bolt Stabilizes door on closing
Power source thst operates the door lock
Cna be used to lock the door so that it can not
(Close button) be opened from the outside.
Open the door by fingerprint
Open the door with smart key
When the registered [Smart Key] is touched to the
smart key input part, a confirmation tone is heard
and it opens when you open the door.
Indoor Outdoor
Touch the keypad
If you press and hold the [DUAL LOCK] button for
3 seconds, the setting is completed with sound.
2. Press the [double lock] button
inside to dismiss double lock setting
2. Press [#], [9] button
Touch the number
Press [#] then press [9],
plate and enter your
internal double lock is off
password
with beep sound
