8.3 Audio Inputs
Tracker has two audio inputs that provide a source to sampling and
recording from external sources. The physical inputs are located on the rear
of the device and provide access for microphone and line in either using
TRS Stereo or TS Mono jacks or the supplied 3.5mm to 2 x 6.3mm adapter.
Line Input
The input can be selected between Left, Right or Stereo. While these are
selectable options Tracker records in mono. Tracker can record audio or
play a pattern audio but not both together at the same time. Playing
patterns will therefore output MIDI but not audio if sample recording is in
progress.

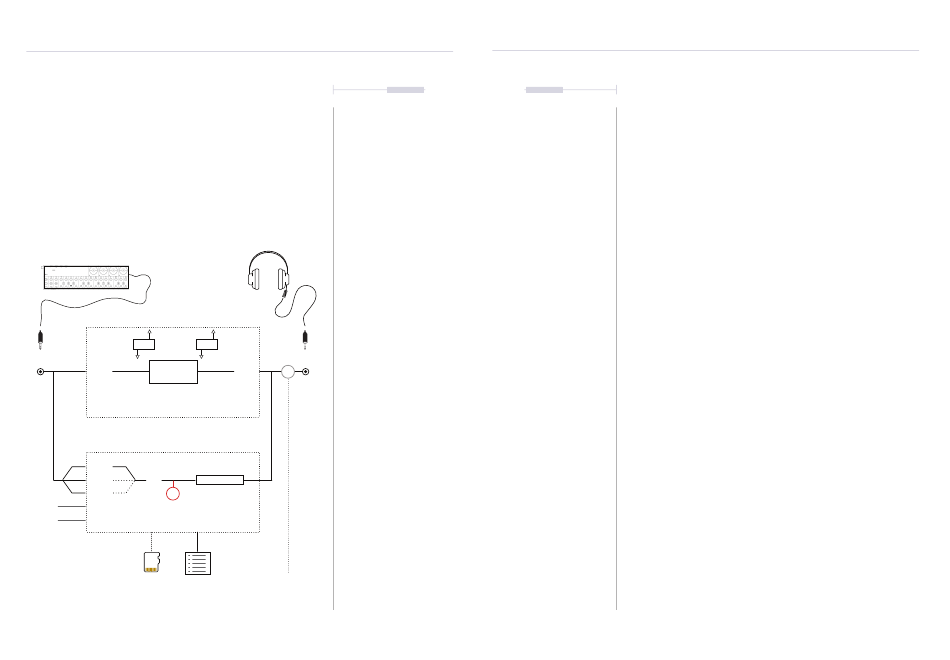

Line In Pass Through
Delay Send FX
Line In
Line In
Stereo
Mute On / Off
[Master]
Global Mixer - Page 3 of 3
Recording
Left
Stereo Gain
Right R
FM Radio
[Sample Recorder]
Mic In
All Samples are Recorded in Mono
SD Card Instrument List
Audio saved to SD Card and / or
directly to the instrument list
180
Reverb
Out
Stereo M
Monitor On / Off
Master Output
Page 1 of 3
Polyend Tracker Manual
NOTES NOTES
Polyend Tracker Manual
The sample recorder page can select sampling input, but the general input
is defined in the 'Config' parameter settings. The Mixer passthrough audio
operates in stereo.
▌ SETTING THE SAMPLER LINE IN STEREO / MONO OPTION
1. Press [Config] to open the configuration settings.
2. Navigate with the 1 st and 2 nd Screen buttons to select 'General'.
3. In the central window pane, Press the 4 th
navigate to 'Line in channel'.
4. Press [Change], 6 th Screen button to select the options. The pop-up
window will appear.
5. In the middle page pane, Press the 4 th or 5
to select 'Stereo', 'Mono Left' or 'Mono Right'.
6. Press [Apply], 6 th Screen Button or [Cancel], 3
without changing.
▌ SETTING THE MIXER LINE IN PASS THROUGH PARAMETERS
1. Press [Master] to open the configuration settings. Navigate to the Global
Mixer, Page 3 of 3, by Pressing [Master].
2. Line In by default is muted. Press [Unmute] 4
Line In channel to toggle mute / unmute. If unmuted this will be [Mute].
3. Line In can be soloed. Press [Shift] + [Solo] 4
Line In channel to toggle solo on or off.
4. Hold [Mute], 4 th Screen button for Line In + Turn (Jog) to adjust level.
5. The Line in signal can also be sent to the master Delay and Reverb
effect. These channels may also be muted. Press [Mute] / [Unmute] to
toggle the Mute / Unmute State of the respective screen button.
6. To adjust the Delay and Reverb send amount, Hold [Mute] for the
respective effect screen button + Turn (Jog).
7. The Mixer bar graphs will show the audio in real time for the level,
dimmed if muted and bright if audible / unmuted. The level and send
amount settings are also shown on the bar and in the label.
