Master Effects
10.1 Effects Overview
Tracker has 8 voices which would represent each of the tracks playback.
The common processing of the voices comes together at the master stage
where the voices are mixed and the master effects applied. Also the Delay
and Reverb 'send' audio is mixed into the main out.
Voice
Master
Panning
Reverb
Saturation
Limiter
Inserts
Space
Bass Boost
EQ
Left Right
Out

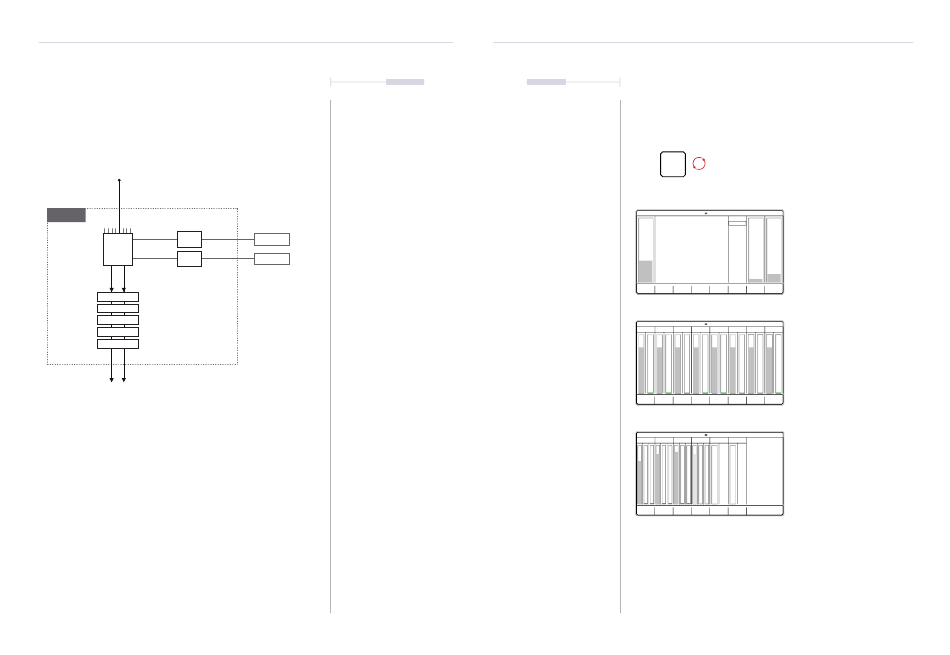

The diagram shown is for illustration purposes and does not constitute an
exact or official schematic of Polyend's Tracker circuitry. It does however
serve to give an insight into the signal path and identify the six master
effects covered in this section.
The reverb and delay send effects can be sent pre-fader or post-fader in the
global mixer. This is set in the 'Config' settings. This means the effect is sent
before the volume fader or after the volume fader adjustment.
226
Delay Sends
Sends
Polyend Tracker Manual
NOTES NOTES
Polyend Tracker Manual
10.2 Master Pages
The 6 master effects are located in the master section of Tracker. This is
accessible with the [Master] dedicated button which opens to 3 mixer /
master pages. The main effects settings are contained within this pages.
Press [Master] to select the Master section.
Each Press of [Master] will cycle through 3 master pages:
Master, Page 1; Track Mixer, Page 2; Global Mixer, Page 3.
Master
Master 1/3 0m:00s P1.008 Master - Page 1/3
Hard Clip
Soft Clip
Saturate
Gives access to the master output level volume
Overdrive
Drive+
level. Access to the settings pages for the Limiter
and EQ are available from the screen buttons.
The Saturation, Bass Boost and Space effects
have one parameter each and are directly
adjustable when selected with (Jog). The two
send effect parameter pages are also accessible
when using the respective screen buttons.
Volume Reverb Delay Limiter EQ Saturation Bass Boost Space
-33.08 dB Soft Clip 5 1
Track Mixer 2/3 0m:00s P1.008
Track Mixer - Page 2/3
Track 1 Track 2 Track 3 Track 4 Track 5 Track 6 Track 7 Track 8
Gives access to the individual track levels to
allow mixing of the entire song. Hold one or more
screen buttons and turn (Jog) to adjust.
Mute and Solo can be set here as well as editing
the track names when [Rec] is active.
No effects are provided from this page.
0.00 dB 0.00 dB 0.00 dB 0.00 dB 0.00 dB 0.00 dB 0.00 dB 0.00 dB
Mute Mute Unmute Mute Mute Unmute Unmute Unmute
Global Mixer 3/3 0m:00s P1.008 Global Mixer - Page 3/3
Delay Reverb Dry Mix Line In Line Dly Line Rvb
The main output delay and reverb sends are
visible and can be adjusted. The main dry and
wet mix of the audio and effects is also provided.
Control for pass through of line inputs. Reverb
and delay can be applied to this audio signal.
Pre-fader or post-fader are in the configurable in
the 'Config' settings.
-4.50 dB 0.00 dB 1.80 dB 0.00 dB 0.00 dB 0.00 dB
All settings accessible with the screen buttons
Mute Mute Mute Unmute Unmute Unmute
To adjust effect parameters, select the page then use the screen buttons or
use [Left] or [Right] to select the parameter. Screen buttons select pages
such as delay, reverb etc. Turn (Jog) or Press [Up] or [Down] to change the
selected parameter value. Multiple track mixer levels can be adjusted when
holding the screen buttons simultaneously.
10
Master Effects
