Overview
1.1 How to Use This Notebook
This book combines a formal reference alongside your own notes and
comments, collectively bringing together a comprehensive guide to Tracker.
Sections are laid out to cover the full workflow with walkthroughs, step by
step guides and tips. Some pages carry a wide margin and some are
intentionally blank enabling you to make your own notes.
Control conventions.
(Jog)
Rounded parentheses represent the large single rotary control jog wheel.
Selected functions can be navigated or changed depending on the context.
[Function]
Square parentheses contain functions that are selectable by a physically
dedicated button - either as a primary or secondary function. Examples are
[Rec], [Play]. The arrow symbol buttons will be represented by [Left],
[Right], [Up], [Down] text.
[Function] + [Option]
Functions which require multiple button selections simultaneously are
shown with a + symbol between each required button. An example is the
[Shift] + [Copy/Paste] command.
[PAD]
Each of the 48 pad buttons will be simply represented by [PAD]. These
functions will depend on the mode and function selected.
[Dynamic Screen Key]
The 8 dynamic screen buttons located under the display will be written in
this book using italic text. The actual function that each button serves will
change depending on the current context. The function it serves will be
labelled on the screen above each button on the device. Currently
unavailable options will show on the tracker screen as dimmed text. An
example is [Create Project].
6

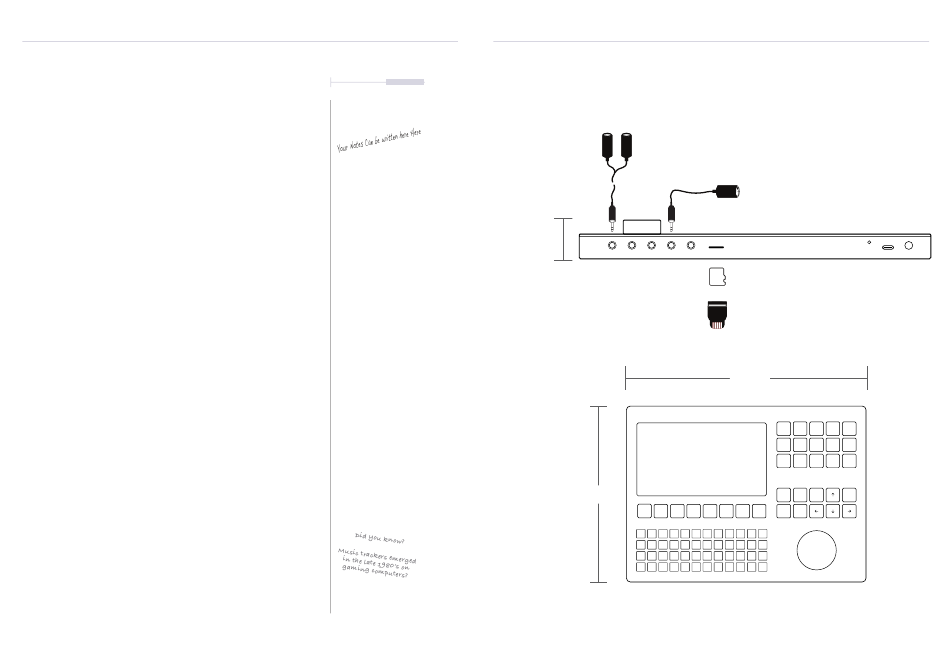

1.2 Hardware Overview
NOTES
33 mm
Polyend Tracker Manual Polyend Tracker Manual
Stereo audio output also serves as headphone out.
3.5mm Male Stereo TRS Jack
to 2 x 6.3mm TR Mono Female
adapter supplied.
3.5mm Jack to 5 Pin MIDI
adapter (type B) supplied
Out Line In Mic MIDI Out MIDI In Micro SD
3.5mm Stereo 3.5mm MIDI Micro SD Card Slot.
Audio Input & Input & Output
Pins face down.
Output
16GB Micro SD Card Supplied
Input is TR Mono and output Micro SD Card to USB-A
TRS Stereo, also supports adapter supplied.
headphones.
282 mm
207 mm
1
Overview
Reset On / Off
Switch Switch
USB Power
USB Power Input
USB-C to USB-A Cable Supplied
Supply is 5V, 1A so can use
the supplied mains to USB or a
battery power bank.
