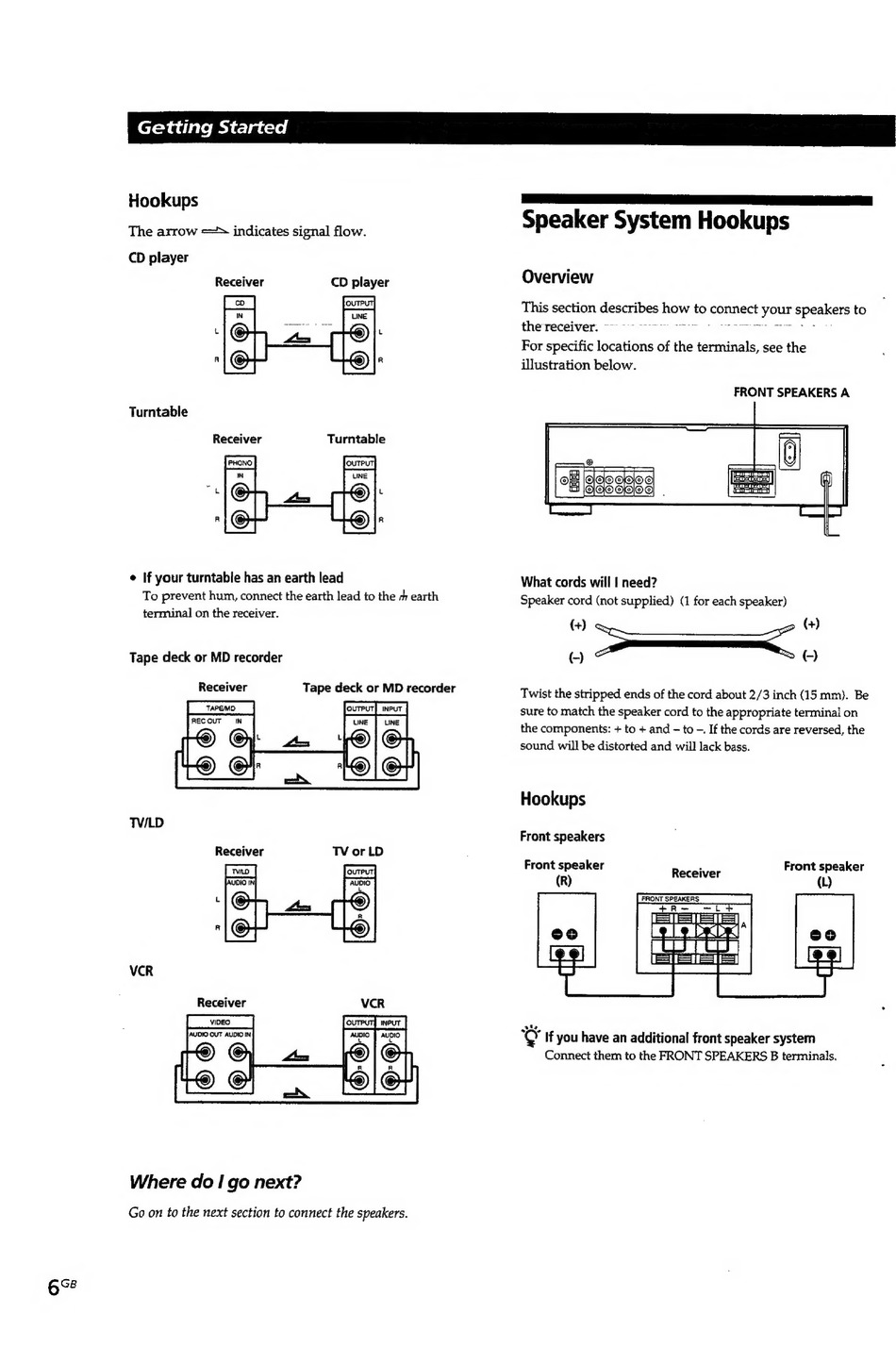

Getting Started
Hookups
The arrow => indicates signal flow.
CD player
Receiver CD player
Turntable
Receiver Turntable
e If your turntable has an earth lead
To prevent hum, connect the earth lead to the - earth
terminal on the receiver.
Tape deck or MD recorder
Receiver Tape deck or MD recorder
TV/LD
VCR
Where do !| go next?
Go on to the next section to connect the speakers.
Speaker System Hookups
Overview
This section describes how to connect your speakers to
the receiver: <=? 0'* 2s Seo tee te
For specific locations of the terminals, see the
illustration below.
FRONT SPEAKERS A
—— ©
eecenee
What cords will | need?
Speaker cord (not supplied) (1 for each speaker)
. .
SS
OW = Ra
Twist the stripped ends of the cord about 2/3 inch (15 mm). Be
sure to match the speaker cord to the appropriate terminal on
the components: + to + and - to -. If the cords are reversed, the
sound will be distorted and will lack bass.
Hookups
Front speakers
ak Receiver Front oc
|FRONTSPEAKERS SPEAKERS
Pty TT Us
o If you have an additional front speaker system
Connect them to the FRONT SPEAKERS B terminals.
