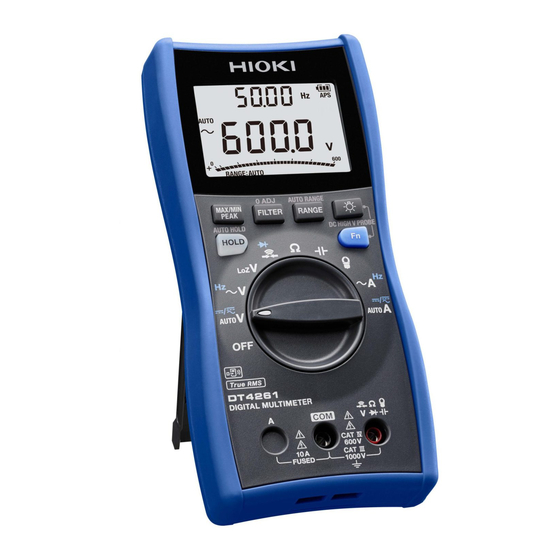

- Page 1 DIGITAL MULTIMETER DT4200 Series New wireless “Middle Model” DT4261 between the Standard and High-end models of the DT4200 lineup!
- Page 2 Bluetooth wireless technology support for recording ® and managing measurement data Now joined by the DT4261! Bluetooth communication with Z3210 attached to DT4261 ® Install the Wireless Adapter Z3210 to the DT4261 to enable Bluetooth communications. ® With the Z3210, you can transfer data directly to an Excel file or pair the instrument with GENNECT Cross.
- Page 3 Safe testers that protect workers from dangerous accidents Prevent unavoidable debris from shorting the Continued high input may result in major Hazard Hazard measurement target and causing an accident. accidents such as fire. The DT4255’s voltage input terminals incorporate a To prevent an accident, a warning function immediately protective fuse so that contamination of the instrument’s notifies the operator if the DMM receives excessively high...
- Page 4 3-year warranty for peace of mind All development, design, and manufacturing processes for almost all Hioki digital multimeters are carried out at our Head Office in Nagano Prefecture. Some of the industry’s most advanced technological capabilities enable us to...
- Page 5 Rotary switch that’s easy to operate even when an angle or even in a dim location wearing gloves The DT4200 series features a display The DT4200’s rotary switch is with a wide viewing angle and a designed to be easy to turn even backlight function so that it’s easy to...
- Page 6 High-end models Featuring high accuracy, extensive additional functionality, and a broad range of measurement parameters DC V typical accuracy: ±0.025% rdg. ±2 dgt. Measurement categories: CAT III (1000 V), CAT IV (600 V) For electrical For laboratory and work in the field research use DT4281 DT4282...
-
Page 7: Functions And Features
Functions and Features Magnetic strap frees both hands Automatically hold display values Manage measurement data on a for work and save results with one touch to computer the DMM’s internal memory Using the magnetic strap (option) Using the Communication Package DT4900-01 (option) By using the magnetic strap to secure the The display is automatically held once the Measurement results can be downloaded to... - Page 8 Middle model Supports wireless communication to increase work efficiency DC V typical accuracy: ±0.15% rdg. ±2 dgt. Measurement categories: CAT III (1000 V), CAT IV (600 V) Easily go wireless and manage your data digitally WIRELESS ADAPTER Z3210 Wireless communication is supported in combination with Multi-functional, for the wireless adapter Z3210 (sold...
- Page 9 Link with GENNECT Cross Troubleshoot in the field When combined with GENNECT Cross, the DT4261 you can perform simple harmonic analysis. Appli- cations include harmonic measurement of power conditioners for solar systems and problem analysis of power supply systems. Problems that can be caused by harmonics •...
-
Page 10: Standard Models
Featuring the world’s fastest DMM engine* The DT4200 series features a dedicated IC that Hioki developed in-house in order to deliver unprecedented measurement speed. *According to Hioki research conducted in April 2015. Standard models Introducing a line of field-optimized instruments that can be chosen based on the application at hand DC V typical accuracy: ±0.3% rdg. - Page 11 Functions and Features AC contacts DC contacts Magnetic strap and auto-hold Automatic switching of Use a computer in the field to save function free up hands for easier measurement in locations where and check measured values work AC and DC voltages are mixed With the Communication Package DT4900-01 (option) Using the magnetic strap (option)
- Page 12 Featuring the world’s fastest DMM engine* The DT4200 series features a dedicated IC that Hioki developed in-house in order to deliver unprecedented measurement speed. *According to Hioki research conducted in April 2015. Pocket models Featuring a compact body for ergonomic hold and a reliable, safe design DC V typical accuracy: ±0.5% rdg.
- Page 13 AC and DC voltages, automatic Results are communicated with a beep. speed with that of the Hioki Card HiTESTER switching eliminates the need to operate the 3244-60. rotary switch and helps prevent...
- Page 14 DT4200 Series Basic Comparison DT4281 DT4282 DT4261 / DT4261-90* DT4252 DT4253 DT4254 DT4255 DT4256 DT4221 DT4222 DT4223 DT4224 Basic Characteristics True RMS DC V basic accuracy ±0.025% rdg. ±2 dgt. ±0.15% rdg. ±2 dgt. ±0.3% rdg. ±5 dgt. ±0.3% rdg. ±3 dgt.
- Page 15 High-End DT4281 / DT4282 (Accuracy guaranteed for 1 year, post-adjustment accuracy guaranteed for 1 year) DC Voltage AC Clamp (AC Current) DT4281 only Range Accuracy Input Impedance Accuracy Range 60.000 mV ±0.2% rdg. ±25 dgt. 40 Hz to 65 Hz 65 Hz to 1 kHz 1 GΩ...
-
Page 16: General Specifications
High-End General Specifications Durability Safety Maximum rated voltage Drop proof between CAT Ⅲ 1000 V, CAT Ⅳ 600 V Operating temperature and humidity* -15°C to 55°C input terminals and ground Storage temperature and humidity* -30°C to 60°C Maximum rated voltage Between the V and COM terminals: 1000 V DC/AC between terminals Applicable standards... - Page 17 Middle General Specifications Durability Safety Maximum rated voltage between Drop proof CAT Ⅲ 1000 V, CAT Ⅳ 600 V input terminals and ground Operating temperature and humidity* -25℃ to 65℃ Maximum rated voltage Storage temperature and humidity* -30℃ to 70℃ Between the V and COM terminals: 1000 V DC/AC between terminals Applicable standards...
- Page 18 Frequency Temperature DT4253 only Range Accuracy Thermocouple Type Range Accuracy 99.99 Hz -40.0 to 400.0℃ ±0.5% rdg. ±2℃ 999.9 Hz The optional K Thermocouple DT4910 is used. Accuracy does not include the error of the K ±0.1% rdg. +1 dgt. 9.999 kHz thermocouple.
-
Page 19: Accessories / Options
Pocket General Specifications Durability Safety Drop proof Maximum rated voltage between CAT III 600 V, CAT IV 300 V input terminals and ground -10°C to 50°C (DT4221, DT4222) Operating temperature and humidity* -10°C to 65°C (DT4223, DT4224) Maximum rated voltage between terminals Between the V and COM terminals: 600 V DC/AC -30°C to 60°C (DT4221, DT4222) -
Page 20: Wireless Adapter
*The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, CARRYING CASE Inc. and any use of such marks by HIOKI E.E. CORPORATION is under license. C0207 *For the latest information about countries and regions where wireless operation is currently supported, please visit the Hioki website.
