Contec PCE68-9PS User Manual

Connection Conversion Cable for RS-232C
PCE68-9PS User's Guide
This product converts the CN1 (68-pin 0.8mm pitch connector) on the board of RS-232C 8CH to 9-pin
D-SUB male connectors for eight channels as shown below.
Suitable boards : COM-8C-LPE, COM-8C-LPCI

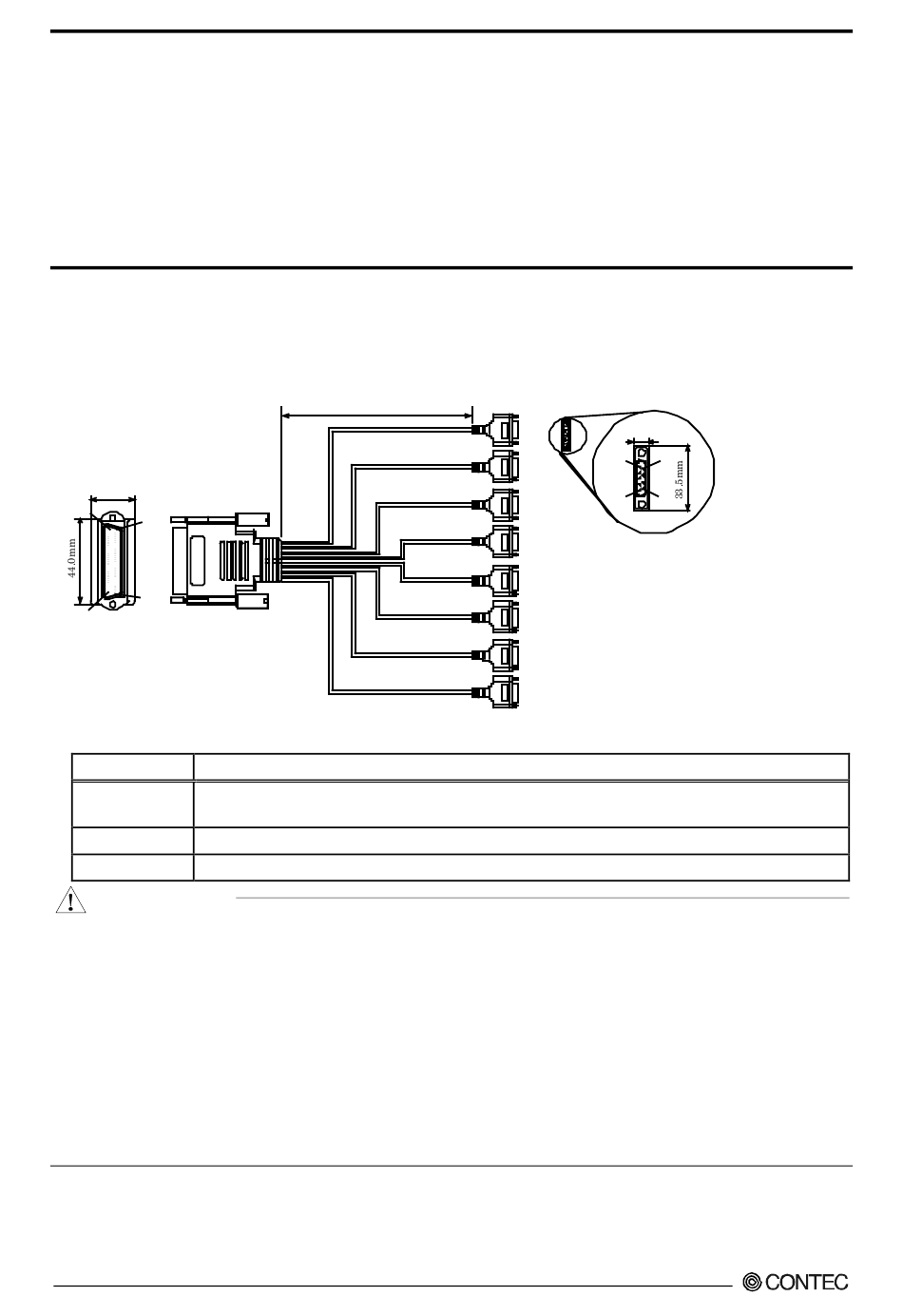

External Dimensions

13.0m m
3 4
68
35
1

Specifications

Item
Connector 68-pin 0.8mm pitch connector Thumb screw: M2
9-pin D-SUB male connector Screw nut: UNC#4-40 (Inch screw) x 8
Cable 9 core shield cable
Weight 380g
CAUTION
- Do not strike or bend the product. Otherwise, the product may malfunction, overheat, cause a
failure or breakage.
- Do not insert or remove the connector while the power is turned on to the PC. Failure to observe
this precaution may cause malfunction, overheating.
- The specifications of this product are subject to change without notice for quality improvement.
Even when using the product continuously, be sure to read the manual and understand the contents.
- Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may
appear in this document or for any results of using the product.
- All relevant issues have been considered in the preparation of this document. Should you notice an
omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.
1
(68Pin → 9Pin×8)
CONTEC CO.,LTD.
1 000 mm
Specification
Conductor size: AWG30 Conductor composition: 7pcs/0.1mm UL1571
C H1 1 5.0mm
5 9
C H2
1
6
C H3
C H4
C H5
C H6
C H7
C H8
PCE68-9PS
