Contec PCA96PS-0.5P User Manual

Shielded Cable with One 96-pin Half-Pitch Connector
PCA96PS-0.5P, PCA96PS-1.5P,
PCA96PS-3P, PCA96PS-5P
The PCA96PS-0.5P, PCA96PS-1.5P, PCA96PS-3P, and PCA96PS-5P are cables for connecting a 96-pin
half-pitch connector on CONTEC board with other devices.

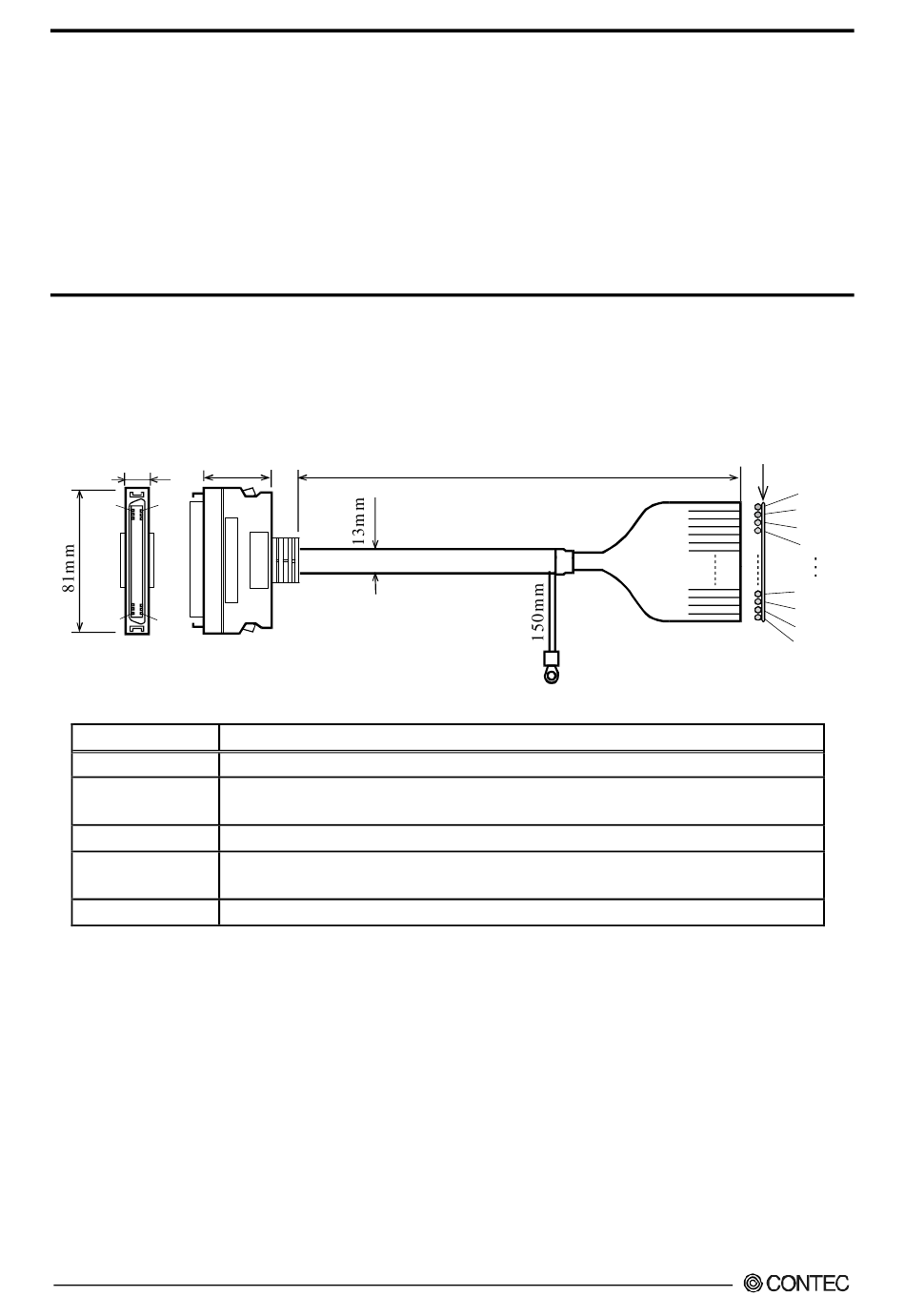

External Dimensions
38.2mm
14.6mm
A01
B01
B48
A48

Specifications

Item
Connector used
Cable
Round terminal
Specification of
wire Terminals
Weight
Notes!
- Do not strike or bend the product. Otherwise, the product may malfunction, overheat, cause a
failure or breakage.
- Do not insert or remove the connector while the power is turned on to the PC. Failure to observe
this precaution may cause malfunction, overheating.
- The specifications of this product are subject to change without notice for quality improvement.
Even when using the product continuously, be sure to read the manual and understand the contents.
- Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may
appear in this document or for any results of using the product.
- All relevant issues have been considered in the preparation of this document. Should you notice an
omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.
1
User's Guide
CONTEC CO.,LTD.
PCA96PS-0.5P
PCA96PS-1.5P
PCA96PS-3P
PCA96PS-5P
96-pin half-pitch, female connector PCR-E96FA[HONDA] or equivalent
96 core shield cable(48pair). Conductor size: AWG#30
Conductor composition: 7pcs/0.10mm UL2464
V1.25-3[JST] or equivalent
It lamination-processes in 1.27mm pitch.
200g(PCA96PS-0.5P), 420g(PCA96PS-1.5P), 750g(PCA96PS-3P), 1170g(PCA96PS-5P)
PCA96PS-0.5P, PCA96PS-1.5P, PCA96PS-3P, PCA96PS-5P
500mm
1,500mm
3,000mm
5,000mm
Specification
Laminate Side
A01
B01
A02
B02
A47
B47
A48
B48
