Contec PCA68PS-0.5P User Manual

Shielded Cable with One 68-pin Connector
PCA68PS-0.5P, PCA68PS-1.5P
The PCA68PS-0.5P and PCA68PS-1.5P are cables for connecting a 68-pin connector on CONTEC board
with other devices.

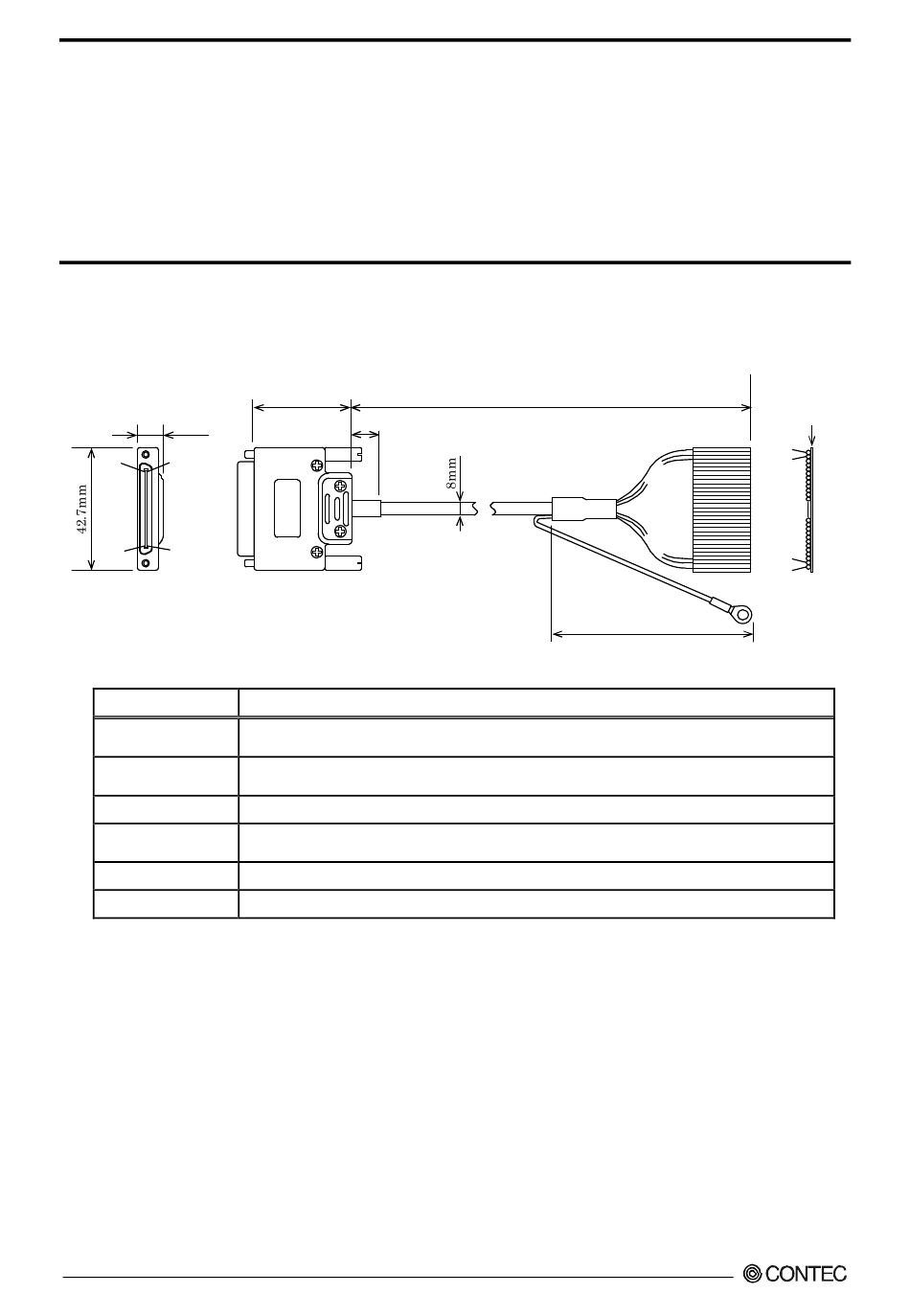

External Dimensions

9mm
34
68
35
1

Specifications

Item
Connector used
Cable
Round terminal
Specification of
wire Terminals
Weight
Line core color

Notes!

- Do not strike or bend the product. Otherwise, the product may malfunction, overheat, cause a failure or breakage.
- Do not insert or remove the connector while the power is turned on to the PC. Failure to observe this precaution
may cause malfunction, overheating.
- Insert or remove the cable straightly. Otherwise, the part of connector may distort, cause a failure or breakage.
- The specifications of this product are subject to change without notice for quality improvement.
Even when using the product continuously, be sure to read the manual and understand the contents.
- Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may appear in this
document or for any results of using the product.
- All relevant issues have been considered in the preparation of this document. Should you notice an omission or
any questionable item in this document, please feel free to notify CONTEC CO., LTD.
1
User's Guide
CONTEC CO.,LTD.
33.69mm
15mm
68-pin 0.8mm-pitch connector HDRA-E68MA1 [HONDA] or equivalent
Thumb screw: M2
68 core shield cable (34pair). Conductor size: AWG#30
Conductor composition: 7pcs/0.1mm UL20276
V1.25-3[JST] or equivalent
It lamination-processes in 1.27mm pitch.
120g(PCA68PS-0.5P), 220g(PCA68PS-1.5P)
Line core color depends on the product revision. Please refer to the next page.
PCA68PS-0.5P 500mm
PCA68PS-1.5P 1,500mm
150mm
Specification
PCA68PS-0.5P, PCA68PS-1.5P
Laminate Side
1
2
67
68
