Contec PCA68PS-0.5P User Manual

Shield Cable with One 68-Pin Connector
PCA68PS-0.5P, PCA68PS-1.5P
The PCA68PS-0.5P and PCA68PS-1.5P are cables for connecting a 68-pin 0.8mm-pitch connector on
CONTEC PC Card with other devices.

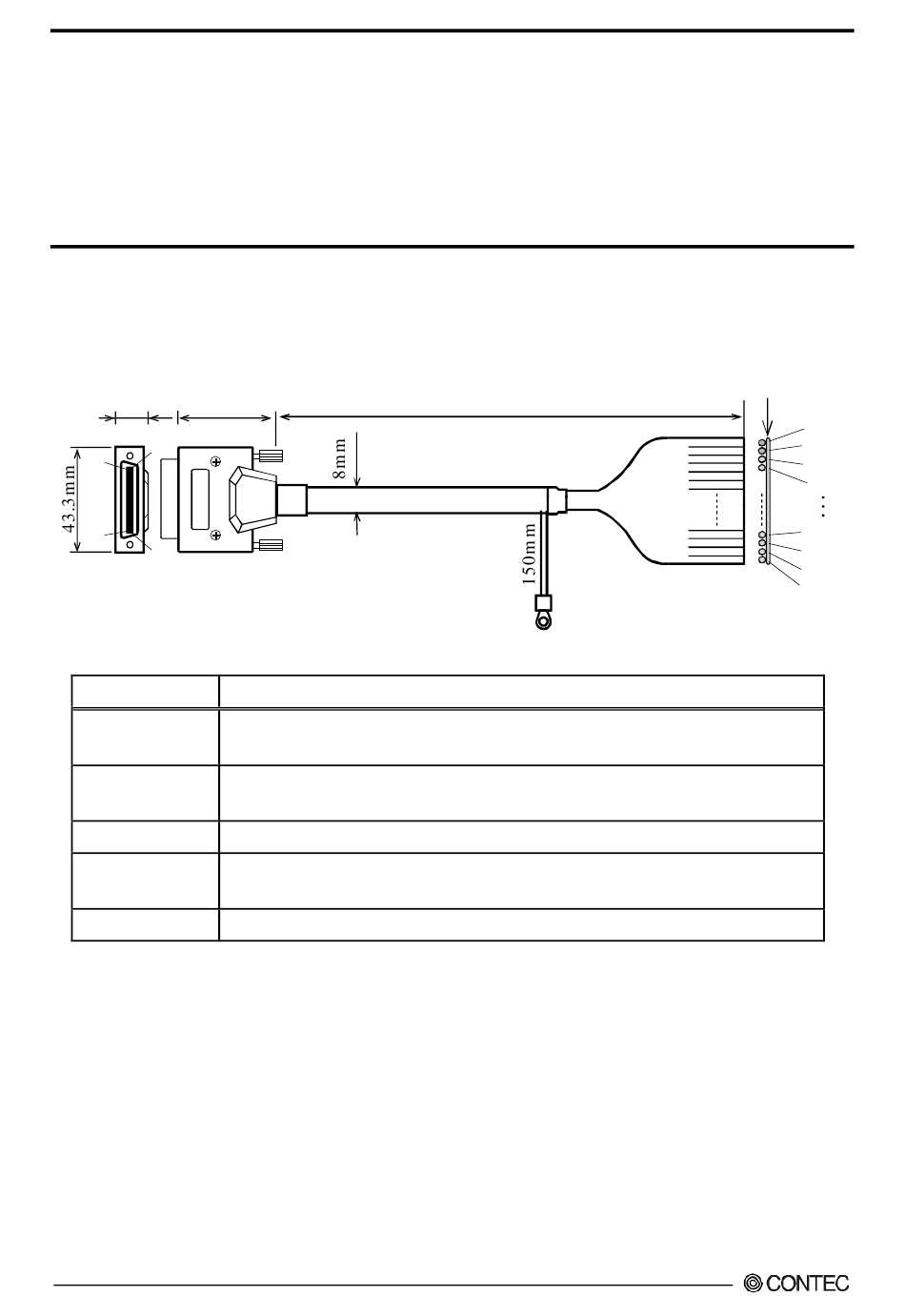

External Dimensions

11.7mm 39.7mm
68
34
1
35

Specifications

Item
Connector used
Cable
Round terminal
Specification of
wire Terminals
Weight

Notes!

- Do not strike or bend the product. Otherwise, the product may malfunction, overheat, cause a
failure or breakage.
- Do not insert or remove the connector while the power is turned on to the PC. Failure to observe
this precaution may cause malfunction, overheating.
- The specifications of this product are subject to change without notice for quality improvement.
Even when using the product continuously, be sure to read the manual and understand the contents.
- Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may
appear in this document or for any results of using the product.
- All relevant issues have been considered in the preparation of this document. Should you notice an
omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD
1
User's Guide
CONTEC CO.,LTD.
PCA68PS-0.5P
PCA68PS-1.5P
68-pin 0.8mm-pitch connector HDRA-E68MA1 [HONDA] or equivalent
Thumb screw: M2
68 core shield cable(34pair). Conductor size: AWG#30
Conductor composition: 7pcs/0.1mm UL20276
V1.25-3[JST] or equivalent
It lamination-processes in 1.27mm pitch.
120g(PCA68PS-0.5P), 220g(PCA68PS-1.5P)
500mm
1,500mm
Specification
PCA68PS-0.5P, PCA68PS-1.5P
Laminate Side
1
35
2
36
33
67
34
68
