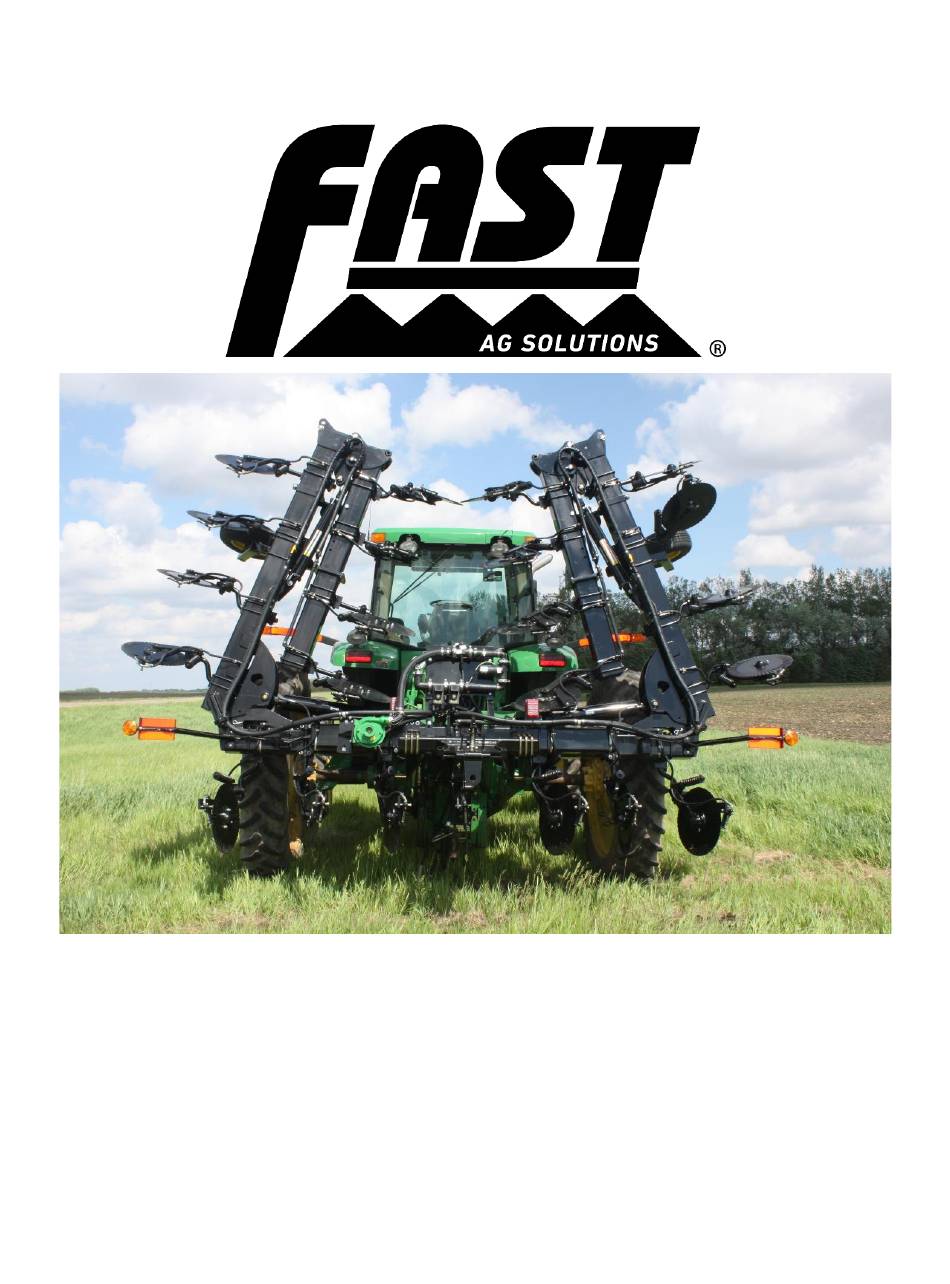

- Page 1 813P / 833P - 40' / 60' 3PT APPLICATOR OWNER’S MANUAL...
- Page 2 820101 813P / 833P - 30' / 40' / 60' 3PT Applicator 2023-11-29...
-
Page 3: Table Of Contents
Keep Riders O昀昀 Machine ............................. 23 Observe Maximum Transport Speed ........................23 EC Compliance No琀椀昀椀ca琀椀on ..........................24 Use a Signal Person ............................. 24 Tow Loads Safely ..............................24 Avoid Overhead Power Lines ..........................24 Table of Contents 3PT Applicator 813P / 833P Page 3... - Page 4 Keep Riders O昀昀 the Machine ..........................38 Cau琀椀on for All Machines ............................38 Unfolding/Extending the Toolbar ..........................39 Field Opera琀椀on Notes ............................39 Outer Wing of 40’ Machines ..........................39 Table of Contents 3PT Applicator 813P / 833P Page 4...
- Page 5 Avoid High-Pressure Fluids ............................51 Preven琀椀ng Hydraulic System Contamina琀椀on ......................51 Replace Hydraulic Hoses ............................52 Tightening Hardware .............................. 52 PREPARING FOR STORAGE ........................... 53 Removing from Storage ............................53 Table of Contents 3PT Applicator 813P / 833P Page 5...
- Page 6 Face Seal Adjustable Stud End O-Ring Installa琀椀on ....................56 Face Seal Straight Stud End O-Ring Installa琀椀on ....................56 Fi琀�ng Installa琀椀on ............................... 56 Assembly Torque ..............................56 SAE Face Seal and O-Ring Stud End Fi琀�ng Torque Chart ..................57 Table of Contents 3PT Applicator 813P / 833P Page 6...
- Page 7 This warranty shall expire one (1) year after the date of delivery of the new machinery. If these conditions are fulfilled, Fast Ag Solutions shall at its own cost and at its own option either repair or replace any defective parts provided that the buyer shall be responsible for all expenses incurred as a result of repairs, labor, parts, transportation or any other work, unless Fast Ag Solutions has authorized such expenses in advance.
-
Page 8: Warranty Registra琀椀On
The above equipment and Operator’s Manual have been received by me, and I have been thoroughly instructed as to care, adjustments, safe operation, and applicable warranty policy. Date_____________________ Owner’s Signature________________________________________________________ White - FAST Yellow - Dealer Pink – Customer Warranty Registration 3PT Applicator 813P / 833P Page 8... - Page 9 FAST 813P / 833P Series Applicator APPLICATOR SERIAL NUMBER _______________________________ DATE PURCHASED ______________/_____/__________ NUMBER OF ROW UNITS ___________________________________ PUMP MANUFACTURER: (CIRCLE ONE) ACE FMC-150-HYD-206 ACE FMCSC-205F-HYD-304 ACE FMCSC-205F-HYD-304 HYPRO 9306C-HM1C 3PT Applicator 813P / 833P Page 9...
-
Page 10: Inspec琀椀Ons
Transport pins are inserted in the transport holes. This machine has been thoroughly checked and to the best of my knowledge is ready for delivery to the customer. Signed: _________________________ Date: _________________________ Inspections 3PT Applicator 813P / 833P Page 10... -
Page 11: Delivery
To the best of my knowledge, this machine has been delivered ready for field use, and the customer has been fully informed as to its proper care and operation. Signed: _________________________ Date: ________________________ Inspections 3PT Applicator 813P / 833P Page 11... -
Page 12: A昀琀Er-Sale
Ask the customer if recommended periodic lubrication has been performed. o Review the Operator's Manual with the customer and stress the importance of proper lubrication and safety precautions. Signed: _________________________ Date: _________________________ Inspections 3PT Applicator 813P / 833P Page 12... -
Page 13: Owner Register
Owner Register Model Number Serial Number Name Address County State Date Purchased Name Address County State Date Purchased Name Address County State Date Purchased Name Address County State Date Purchased Owner Register 3PT Applicator 813P / 833P Page 13... -
Page 14: Foreword To The Owner
Intended Use. The manufacturer accepts no liability for damage or injury resulting from this misuse, and these risks must be borne solely by the user. Foreword to the Owner 3PT Applicator 813P / 833P Page 14... - Page 15 TIRE MANUFACTURER'S warranty applicable to your machine may not apply outside U.S. If you are not the original owner of this machine, it is in your interest to contact your local Fast Ag Solutions dealer to inform them of this unit's serial number. This will help Fast Ag Solutions notify you of any issues or product improvements.
-
Page 16: Introduction
Substitute parts will void the warranty and may not meet standards for safe and satisfactory operation. Warranty is provided as part of Fast Ag Solutions’ support program for customers who operate and maintain their equipment as described in this Manual. The warranty is explained on the warranty certificate you should have received from your dealer. -
Page 17: Safety
Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from your Fast Ag Solutions dealer. There can be additional safety information contained on This is a Safety Alert Symbol. When you see... -
Page 18: General Safety
Disengage all power and operate controls to relieve pressure. Lower equipment to the ground. Stop the engine. Remove the key. Allow machine to cool. Securely support any SAFETY 3PT Applicator 813P / 833P Page 18... -
Page 19: Support Raised Equipment
If there is a failure in the Replace worn or damaged hose assemblies hydraulic system, unsupported or raised immediately with Fast Ag Solutions approved equipment could suddenly lower, causing replacement parts. serious personal injury or death. -
Page 20: Inspect Li昀琀 Circuit Hoses
Worn or damaged hose assemblies can fail during use and should be replaced immediately. See your Fast Ag Solutions dealer for replacement hoses. Do not attempt to mount a tire unless you have the proper equipment and experience Store Attachments Safely to perform the job. -
Page 21: Dispose Of Waste Properly
Avoid inhaling vapor, aerosol, or dust. Always have soap, water, and a towel available when working with chemicals. If a chemical contacts skin, hands, or face, wash SAFETY 3PT Applicator 813P / 833P Page 21... -
Page 22: Handle Chemical Products Safely
A Material Safety Data Sheet (M/SDS) provides specific details chemical Tow the machine behind a properly equipped products: physical and health hazards, tractor only. safety procedures, and emergency response techniques. SAFETY 3PT Applicator 813P / 833P Page 22... -
Page 23: Use Safety Lights And Devices
Riders also when operating under adverse surface obstruct the Operator’s view resulting in the conditions, when turning, and when on machine being operated in an unsafe inclines. manner. SAFETY 3PT Applicator 813P / 833P Page 23... -
Page 24: Ec Compliance No琀椀昀椀Ca琀椀On
Towed on public roads. loads with or without brakes that are too heavy for the tractor or are towed too fast can cause loss of control. Consider the total Use a Signal Person weight of the equipment and its load. -
Page 25: Prepare For Transport
Ensure that the lights and reflective markings IMPORTANT: When transporting the or emblems are clean and visible. Contact machine on a roadway, ALWAYS USE your Fast Ag Solutions dealer for lights and appropriate lamps and devices for lighting harnesses. adequate warning to operators of other vehicles. -
Page 26: Replace Safety Signs
Replace missing or damaged safety signs. Use this Operator’s Manual for correct safety sign placement. There can be additional safety information contained on parts and components sourced from suppliers that is not reproduced in this Operator's Manual. Wing SAFETY 3PT Applicator 813P / 833P Page 26... -
Page 27: Safety Features
The customer is responsible for understanding and complying with all local, regional, and national requirements regarding roadway transport. SAFETY 3PT Applicator 813P / 833P Page 27... -
Page 28: Sign-O昀昀 Form
Fast Ag Solutions follows the general Safety Standards specified by the American Society of Agricultural Engineers (ASAE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be operating and/or maintaining the FAST 3PT Applicator must read and clearly understand ALL Safety, Operating, and Maintenance information presented in this Manual. -
Page 29: Specifications
45 LPM (12 GPM) (3000 PSI) 20684 kPa (206.8 bar) Flip Fold 19 LPM (5 GPM) (3000 PSI) Chemical/Fertilizer Pump Drive 20684 kPa (206.8 bar) 30 LPM (8 GPM) Motor (3000 PSI) SPECIFICATIONS 3PT Applicator 813P / 833P Page 29... -
Page 30: Machine Dimensions & Speci昀椀Ca琀椀Ons
20.5 x 8-10 (Standard), 6.7R15 (Optional) Crop Clearance 0.7 m (2 ft. 3.5 in.) Delivery Type Injection Standard Hydraulic Pump ACE FMC-150-HYD-206 Hydraulic Down Pressure Hydraulic Wing Kick Checking Tire Pressure for tire information. SPECIFICATIONS 3PT Applicator 813P / 833P Page 30... -
Page 31: Preparing The Machine
Check that all placement components are clean and working properly. After 50 hours of operation: Tighten all wheel lugs. Then follow the normal servicing and maintenance schedule in LUBRICATION & MAINTENANCE. PREPARING THE MACHINE 3PT Applicator 813P / 833P Page 31... -
Page 32: Pre-Opera琀椀On Checklist
Replace any that are damaged. Re-route those that are rubbed, pinched, or crimped. See Replace Hydraulic Hoses. Check chemical application components. Remove and replace any that are worn. Remove all entangled material. Replace any plugged nozzles or tubes. 3PT Applicator 813P / 833P Page 32... -
Page 33: Axles, Tires, And Tracks
Check tightness of all wheel nuts (B) during the first week of operation and periodically after that. Tighten all wheel bolts to specification. Item Specification (B) Gauge Wheel Nut 95 N-m (70 ft-lbs.) AXLES, TIRES, and TRACKS 3PT Applicator 813P / 833P Page 33... -
Page 34: Attaching And Detaching
Applicator model if required. Do not operate unless Various safety lights and devices are tractor and implement hydraulics are available from your Fast Ag Solutions dealer. compatible. 5. Connect Hydraulics ATTACHING and DETACHING 3PT Applicator 813P / 833P... -
Page 35: Connect Rate Controller Or Nutrient Applicator System Wiring
If the quick couplers do not fully body from high-pressure fluids. engage, check to see that the couplers are the same size and type. WARNING: Prevent serious injury or death. Relieve hydraulic system ATTACHING and DETACHING 3PT Applicator 813P / 833P Page 35... -
Page 36: Scv Iden琀椀昀椀Ca琀椀On Chart
Flip Fold (Base End) Return Yellow Product Pump Return Pressure Product Pump Pressure Return Black Pressure White IMPORTANT: Hose colors do not match SCV color Hydraulic System Requirements for system compatibility. ATTACHING and DETACHING 3PT Applicator 813P / 833P Page 36... -
Page 37: Transporting
7. Toolbar is in transport position. Check local governmental regulations. Various safety devices are available from your Fast Ag Solutions dealer. Keep safety Transport Notes and Checks items in good condition. Replace missing or Be sure that the Applicator is properly damaged items. -
Page 38: Transpor琀椀Ng The Machine
Check local governmental regulations. Various safety lights and devices are available from Fast Ag Solutions dealer. Keep safety items in good condition. Replace missing or damaged items. During periods of limited visibility, use pilot vehicles and use extra lights on the machine. -
Page 39: Unfolding/Extending The Toolbar
Turn 8. Toolbar is in field position. valves (E) off to get a 30’ application width. Open valves when narrow requirements are finished. Figure 2: Flip Wing shutoff valve, right side TRANSPORTING 3PT Applicator 813P / 833P Page 39... -
Page 40: Hydraulic Flow
HYDRAULIC FLOW HYDRAULIC FLOW HYDRAULIC FLOW 3PT Applicator 813P / 833P Page 40... -
Page 41: Regula琀椀Ng Hydraulic Flow To The Pump
5. Adjust “Rabbit/Turtle” flow control valves if equipped. and agitation valve(s) to get desired 4. Adjust tractor flow control to minimum injection pressure. flow setting (Turtle). 5. Move hydraulic lever “Lower/Retract” position start pump. HYDRAULIC FLOW 3PT Applicator 813P / 833P Page 41... -
Page 42: Open Center System (Open)
When the tractor’s SCV I is pulled backward, parameters and lock the jam nut. the following functions are enabled: 6. Open the sprayer agitation valve to get desired injection pressure. 1. Raises main wing kicks. HYDRAULIC FLOW 3PT Applicator 813P / 833P Page 42... - Page 43 Figure 11: SCV III Pushed Forward enabled: When the tractor’s SCV III is pushed forward, 1. Disengages product pump. the following functions are enabled: 1. Unfolds flip wings. HYDRAULIC FLOW 3PT Applicator 813P / 833P Page 43...
-
Page 44: Adjust Depth Control
8. Raise the toolbar fully. 9. Toolbar is ready for application. Use only as much down pressure as needed to get coulters to their proper depth. Excess pressure could cause damage to the toolbar. ADJUST DEPTH CONTROL 3PT Applicator 813P / 833P Page 44... -
Page 45: Adjust Gauge Wheels
1. Remove pin (A) and adjust gauge wheel height as desired. 2. Install pin and lock pin. 3. Repeat for the other side. ADJUST GROUND SPEED 3PT Applicator 813P / 833P Page 45... -
Page 46: Adjust Nozzles
This will ensure that liquid enters the soil via a furrow and is retained in the soil as the furrow closes. ADJUST NOZZLES 3PT Applicator 813P / 833P Page 46... -
Page 47: Preparing The Liquid System
IMPORTANT: Do not run the pump dry canister and crack its head. - damage may occur. 5. Install the screen in the canister and tighten by hand. 6. Open the liquid supply valve. PREPARING THE LIQUID SYSTEM3PT Applicator 813P / 833P Page 47... -
Page 48: Lubrication & Maintenance
Manual apply to both conventional and synthetic lubricants. Properly dispose of all old containers and any residual lubricant they may contain. Re-refined base stock products may be used finished lubricant meets performance requirements. LUBRICATION & MAINTENANCE3PT Applicator 813P / 833P Page 48... -
Page 49: Lubrica琀椀On And Maintenance Intervals
8 hours. Grease the Main Wing Fold Hinges • (both sides) Grease the Inner Wing Lift Cylinders • Grease the Inner Wing Lift Pins • • Grease the Coulter hubs. LUBRICATION & MAINTENANCE3PT Applicator 813P / 833P Page 49... -
Page 50: Service
Remove rings and other jewelry to prevent On towed implements, disconnect its wiring electrical shorts and entanglement in moving harnesses from the tractor before servicing parts. any electrical system components or welding on the machine. SERVICE 3PT Applicator 813P / 833P Page 50... -
Page 51: Support The Machine Properly
Replace worn or damaged hose assemblies A. Piston immediately with Fast Ag Solutions approved B. Rod Guide or Gland replacement parts. SERVICE 3PT Applicator 813P / 833P... -
Page 52: Replace Hydraulic Hoses
Worn or damaged hose assemblies can fail during should replaced immediately. See your Fast Ag Solutions dealer for replacement hoses. CAUTION: If an incorrectly rated hose is used, machine damage, injury, or death could occur. If hoses are to be fabricated, ensure that the... -
Page 53: Preparing For Storage
10. Inspect liquid lines connections. Tighten loose fittings. Replace any line that is cut, nicked, or abraded. 11. Touch paint nicks scratches to prevent rusting. PREPARING FOR STORAGE 3PT Applicator 813P / 833P Page 53... -
Page 54: Tightening Hardware
M20 and larger fasteners with JDM F13C, F13F or F13J zinc flake coating. “Dry” means plain or zinc plated without any lubrication, or M6 to M18 fasteners with JDM F13B, F13E or F13H zinc flake coating. TIGHTENING HARDWARE 3PT Applicator 813P / 833P Page 54... -
Page 55: Uni昀椀Ed Inch Bolt And Screw Torque Values
7/8 in. and larger fasteners with JDM F13C, F13F or F13J zinc flake coating. “Dry” means plain or zinc plated without any lubrication, or 1/4 to 3/4 in. fasteners with JDM F13B, F13E or F13H zinc flake coating. TIGHTENING HARDWARE 3PT Applicator 813P / 833P Page 55... -
Page 56: Face Seal Fi琀�Ngs Assembly & Installa琀椀On - All Pressure Applica琀椀Ons
G. Tube Nut B. Bulkhead Union and Bulkhead Lock H. Swivel Nut Lock Nut C. 90° Swivel Elbow and Tube Nut D. 90° Adjustable Stud Elbow E. Port Plug F. Stud End TIGHTENING HARDWARE 3PT Applicator 813P / 833P Page 56... -
Page 57: Sae Face Seal And O-Ring Stud End Fi琀�Ng Torque Chart
The straight hex wrench sizes listed apply to connectors only and may not be the same as the corresponding plug of the same thread size. These torques were established using steel plated connectors in aluminum and brass. TIGHTENING HARDWARE 3PT Applicator 813P / 833P Page 57... - Page 58 Fast Ag Solutions 4130 Commerce Boulevard Windom, MN 56101 1-800-772-9279 Toll Free 1-507-427-3861 Voice 1-507-427-3030 Fax https://fastagsolutions.com/ 820101 3PT Applicator 813P / 833P Page 58...
