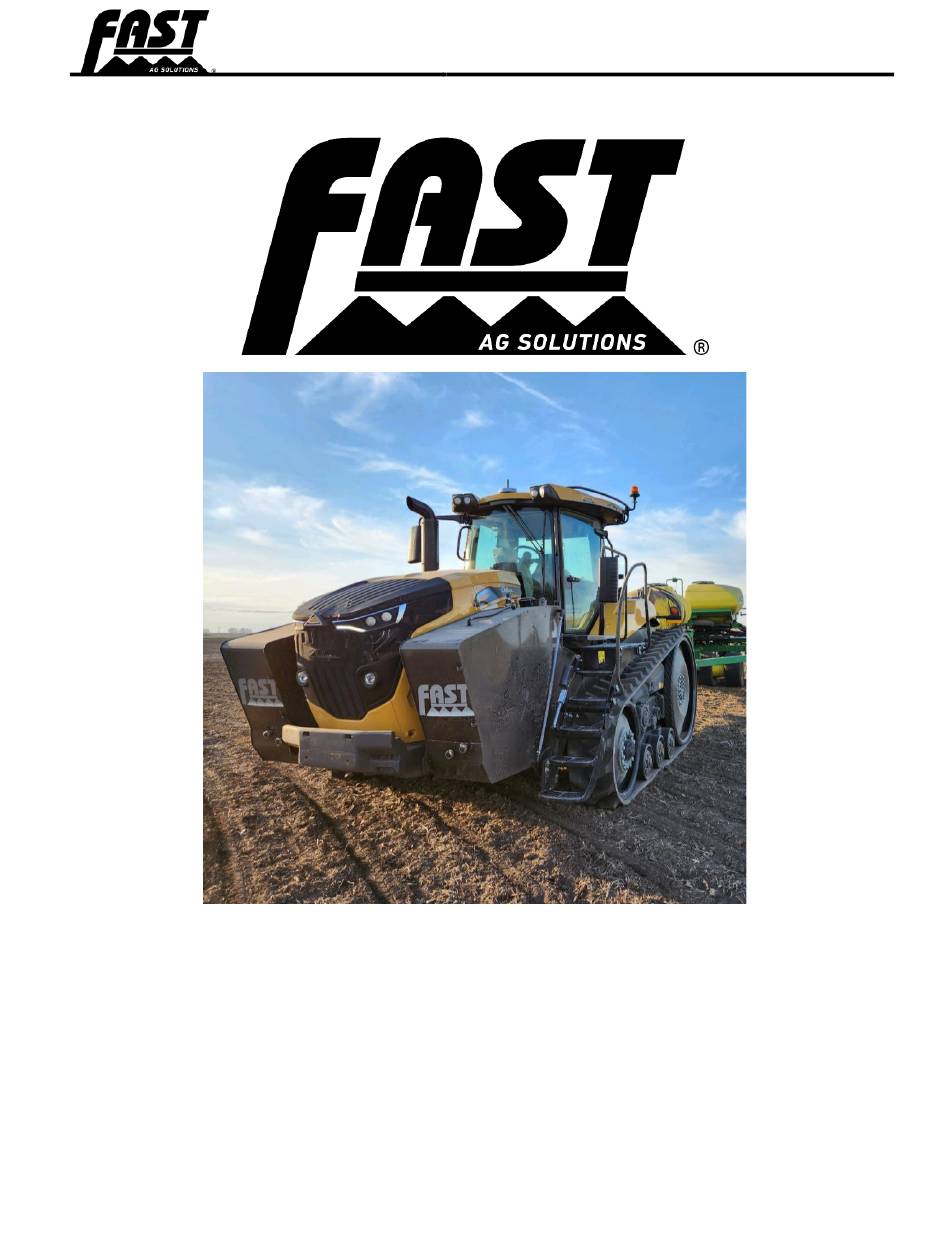

- Page 1 INSTALLATION & PARTS MT765 Challenger TRACK TANK INSTALLATION and PARTS MANUAL 820107 MT765 Challenger Track Tank 2023-11-08...
- Page 2 INSTALLATION & PARTS 820107 MT765 Challenger Track Tank 2023-11-08...
- Page 3 This warranty shall expire one (1) year after the date of delivery of the new machinery. If these conditions are fulfilled, Fast Ag Solutions shall at its own cost and at its own option either repair or replace any defective parts provided that the buyer shall be responsible for all expenses incurred as a result of repairs, labor, parts, transportation or any other work, unless Fast Ag Solutions has authorized such expenses in advance.
- Page 4 The above equipment and Manual have been received by me, and I have been thoroughly instructed as to care, adjustments, safe operation, and applicable warranty policy. Date_____________________ Owner’s Signature________________________________________________________ White - FAST Yellow - Dealer Pink – Customer MT765 Challenger Track Tank Page 4...
- Page 5 INSTALLATION & PARTS FAST MT765 Challenger Series Tank TANK SERIAL NUMBER _______________________________ DATE PURCHASED ______________/_____/__________ MT765 Challenger Track Tank Page 5...
-
Page 6: Table Of Contents
Modifications made subsequent to initial delivery are not included. Always verify the parts and color required when ordering parts. If you have any questions, please contact your Fast Ag Solutions Parts and Service Department. Explanation of Lists... -
Page 7: Table Of Contents
Parts List 35255: Quick Fill, 3” ..........................25 Hardware ................................26 Parts List 590892: Hardware ..........................28 TORQUE SPECIFICATIONS ............................. 29 Metric Bolt and Screw Torque Values ........................29 Uni昀椀ed Inch Bolt and Screw Torque Values ......................30 MT765 Challenger Track Tank Page 7... - Page 8 INSTALLATION & PARTS MT765 Challenger Track Tank Page 8...
-
Page 9: Installation
Manual for bolt assembly. torque values. Remove the step assembly. Remove the four bolts (2) and lower step tube (3). Discard the tube and its hardware. Repeat Step 1 with the right-side mounting bracket (3). Track Tank MT765 Challenger Page 9... -
Page 10: Install Underside Supports
Raise the receiver mounting tube (7) into position with the radar bracket to the rear and install eight center-lock nuts (8). Repeat the procedure for the left- hand side. INSTALLATION Track Tank MT765 Challenger Page 10... -
Page 11: Install Radar
Install the rubber isolator (3) with three 1/2” x 1-3/4” bolts (4), 1/2” washers, and center-lock nuts. Snug the bolts to slightly compress the rubber. Repeat the procedure for the left- hand side. INSTALLATION Track Tank MT765 Challenger Page 11... -
Page 12: Install Tanks
(3). Refer to torque charts in this instruction set for bolt torque values. Repeat the procedure on the left- hand side. Repeat the procedure with the left- hand tank (4). INSTALLATION Track Tank MT765 Challenger Page 12... -
Page 13: Install Step Assembly
Attach a lifting device to the step assembly. Install the step assembly (5) as shown into its receiver and tighten its setscrews (6). INSTALLATION Track Tank MT765 Challenger Page 13... -
Page 14: Install Plumbing Components
INSTALLATION & PARTS Install Plumbing Components Install all plumbing components as shown in the PARTS section(s). INSTALLATION Track Tank MT765 Challenger Page 14... -
Page 15: Parts
INSTALLATION & PARTS PARTS Tanks & Plumbing PARTS Track Tank MT765 Challenger Page 15... - Page 16 INSTALLATION & PARTS PARTS Track Tank MT765 Challenger Page 16...
- Page 17 INSTALLATION & PARTS PARTS Track Tank MT765 Challenger Page 17...
- Page 18 INSTALLATION & PARTS PARTS Track Tank MT765 Challenger Page 18...
- Page 19 INSTALLATION & PARTS PARTS Track Tank MT765 Challenger Page 19...
-
Page 20: Parts List 35500: Tanks & Plumbing
16 FT HOSE 1/2 IN EPDM 510016 34 FT HOSE, 1 IN EPDM 530019 GASKET, 2.00 EPDM 530035 STRAIGHT, 1/2 MPT 1/2" HB 530041 FITTING, 1.00 MNPT X 1.00 HB, POLY 530043 FITTING, 1.00 MPT X .75 HB PARTS Track Tank MT765 Challenger Page 20... - Page 21 KIT, HARDWARE, FENDT CHALLENGER TRACK TANKS 740071 4 PIN DEUTSCH EXTENSION 60" 740072 4 PIN DEUTSCH EXTENSION 60" 800079 FAST TANK LOGO 800351 DECAL, RH GALLON MARKER 800352 DECAL, TANK AG-2T1000 800353 DECAL, LH GALLON MARKER PARTS Track Tank MT765 Challenger Page 21...
-
Page 22: Barrier Chain
Parts List 35104: Barrier Chain ITEM PART NO. QTY. DESCRIPTION 35133 CHAIN, STRAIGHT LINK 540035 P-CLAMP, 1-1/4" 596128M BOLT, HH 3/8-16 X 1 GR5 MAGNI 596213M NUT, HEX 3/8-16 MAGNI 596250M LOCKWASHER, 3/8 MAGNI PARTS Track Tank MT765 Challenger Page 22... -
Page 23: F/C Ss Riser
35189 WLDMNT, REAR TANK SS RISER 500014 CHECK VALVE, .75 VITON F, POLY 530040 HOSE SHANK, 3/4" MPT X 3/4" HB 90~ 530131 NIPPLE, POLY PIPE 3/4" SHORT 530156 TEE, 3/4" POLY PIPE PARTS Track Tank MT765 Challenger Page 23... -
Page 24: Quick Fill, 2
CROSS, 2.00 FULL PORT 530334 2" FP PLANGE X HOSE SHK SWEEP 530386 MANIFOLD SWEEP, 2" FP FLANGE 540002 CLAMP, FP WORM SCREW, 2.00 540052 P-CLAMP, 3" W/3/8" HOLE 540069 HOSE CLAMP, 2.00 T-BOLT PARTS Track Tank MT765 Challenger Page 24... -
Page 25: Quick Fill, 3
MANIFOLD REDUCER 3" X 2" CPLR 530439 MANIFOLD SWEEP, FLANGE 3" 530441 FLANGE SWEEP, 90 X 3" HOSE BARB 540003 CLAMP, WORM SCREW 3" 540027 CLAMP, HOSE 3" T-BOLT 540053 P-CLAMP, 4" W/3/8" HOLE PARTS Track Tank MT765 Challenger Page 25... -
Page 26: Hardware
INSTALLATION & PARTS Hardware PARTS Track Tank MT765 Challenger Page 26... - Page 27 INSTALLATION & PARTS PARTS Track Tank MT765 Challenger Page 27...
-
Page 28: Parts List 590892: Hardware
NUT, HEX FLANGE 3/8-16 MAGNI 596771M NUT, HEX FLANGE 1/2-13 MAGNI 596814M BOLT, HEX FLANGE 3/4-10 X 2 GR8 MAGNI 596831M BOLT, FLANGED 5/8-11 X 2" GR8 MAGNI 596850M NUT, HEX FLANGE TOPLOCK 3/4-10 GR8 MAGNI PARTS Track Tank MT765 Challenger Page 28... -
Page 29: Torque Specifications
M20 and larger fasteners with JDM F13C, F13F or F13J zinc flake coating. “Dry” means plain or zinc plated without any lubrication, or M6 to M18 fasteners with JDM F13B, F13E or F13H zinc flake coating. TORQUE SPECIFICATIONS Track Tank MT765 Challenger Page 29... -
Page 30: Uni昀椀Ed Inch Bolt And Screw Torque Values
7/8 in. and larger fasteners with JDM F13C, F13F or F13J zinc flake coating. “Dry” means plain or zinc plated without any lubrication, or 1/4 to 3/4 in. fasteners with JDM F13B, F13E or F13H zinc flake coating. TORQUE SPECIFICATIONS Track Tank MT765 Challenger Page 30... - Page 31 INSTALLATION & PARTS Fast Ag Solutions 4130 Commerce Boulevard Windom, MN 56101 1-800-772-9279 Toll Free 1-507-427-3861 Voice 1-507-427-3030 Fax https://fastagsolutions.com/ 820107 Track Tank MT765 Challenger Page 31...
