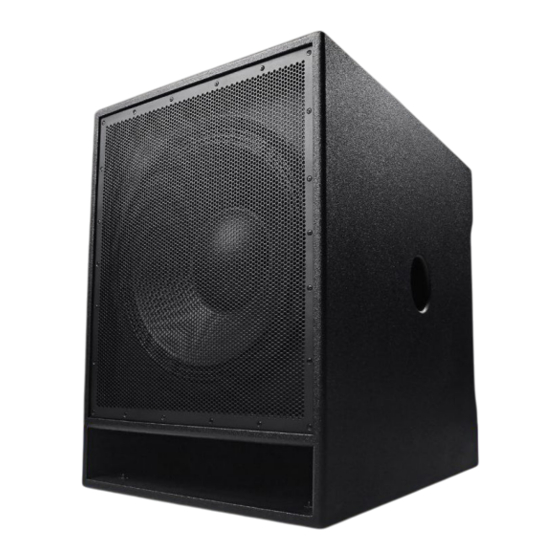

- Page 1 User ManUal Single 18” DJ18S-MK3 Powered Subwoofer...
-
Page 2: Table Of Contents
Single 18” DJ18S-MK3 Powered Subwoofer Table of Contents Overview Quick Start Guide Outboard Processor Warning Setup Procedure Operation and Controls Indicator LEDs How to Use the Presets Pre-Installed Onboard Presets Power Distribution Troubleshooting Cardioid Mode Specifications Warranty Safety Information Important Notes FCC Compliance Notice Este manual está disponible en español en nuestro sitio web en bassboss.com/support Overview The DJ18-MK3 is a premium-quality subwoofer which delivers deep bass at levels far higher than would be expected from its size. - Page 3 The MK3 DSP features storage capacity of up to 100 presets, eight of which can be accessed at the touch of a button with no need for a connected computer. The eight directly accessible presets are compatible with all the presets in the MK3 Top Boxes and are also compatible with previous generation tops and subs. bassboss.com 3...
-
Page 4: Quick Start Guide
Provided the cabinets are physically aligned, any BASSBOSS sub can be combined with any BASSBOSS top and their outputs will be phase-coherent. This means no cancellations and no gaps in the response at the crossover frequency, regardless of which preset is selected. -
Page 5: Outboard Processor Warning
The internal processing can accomplish everything an external processor could accomplish, but without degrading the sound quality and without putting components at risk. Before considering using an outboard processor, contact BASSBOSS customer service with your use-case scenario for assistance in setting up the internal processing to achieve your goals. -
Page 6: Operation And Controls
1. Each preset includes all necessary low-pass and high-pass filters at the selected frequencies, and all the necessary alignments to maintain phase coherence in the crossover range when used with other BASSBOSS powered speakers. Presets help you fine-tune the balance between the subwoofers and top speakers. More details on the different combinations are on page 7. -
Page 7: How To Use The Presets
It’s recommended that you try several, if not all, combinations when first setting up to determine which combination works best in each environment. You will likely choose different combinations for wood floors, concrete floors and outdoors. Experiment with different combinations to dial in your preferred combination in different environments. bassboss.com 7... -
Page 8: Pre-Installed Onboard Presets
Additional presets are accessible through software. See “How to Use the Presets” section for more information. New presets will be available for download at bassboss.com/software as they are developed. To be notified when new presets are released register your gear at: www.bassboss.com/support Instructions on linking to your computer for remote monitoring and control: www.bassboss.com/software... -
Page 9: Power Distribution
Connect no more than one 5000W or two 2500W subwoofer amplifiers to a single 20A circuit. If you need to share circuits, don’t exceed two BASSBOSS single-driver subwoofers or one double-driver subwoofer, along with one or two top speakers, on the same circuit. -
Page 10: Cardioid Mode
Cardioid Mode Preset 8: Cardioid Mode To achieve cardioid operation, you need at least one subwoofer facing the audience and one cabinet in cardioid mode placed facing away from the audience. Ideally, you should have two cabinets facing the audience and one facing away from the audience. The cabinets facing the audience should have the same preset loaded in them. The cabinet facing away from the audience should be set to the Cardioid preset - Preset 8. The Cardioid Mode cabinet should be placed between the audience-facing cabinets for cancellation directly behind the array. The main subwoofer cabinets face the audience and use one of the first 7 presets, while the cardioid cabinet faces away from the audience with Preset 8 selected. When two cabinets are facing forward and one is facing backward in cardioid mode, set the input levels the same for all cabinets, with the same signal going to all. When one cabinet is facing forward and one is facing backward in cardioid mode, set the cardioid... -
Page 11: Specifications
Optional Cover: Heavy-duty padded nylon transport covers for 1 cabinet Casters: Locking 4” (100mm) swivel casters kit, 4 pieces. Online Information: bassboss.com/dj18 Our proactive philosophy causes specifications to be subject to change whenever improvements are made. bassboss.com 11... -
Page 12: Warranty
BASSBOSS personnel. Service will be performed upon the return of the failed unit, together with its original sales receipt or other proof of purchase, to BASSBOSS or an Authorized Service Facility. Purchaser is responsible for all costs of shipping and handling. Cosmetic damage is specifically excluded from this warranty. -
Page 13: Safety Information
Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual. Contact your dealer or BASSBOSS support if the product is not functioning properly. The audio system must comply with current local standards and regulations regarding electrical systems. -
Page 14: Important Notes
Important Notes Shielded data cables must be used. To minimize the occurrence of noise and interference, always use shielded signal cables. Avoid routing signal or data cables close to equipment that produces high-intensity electromagnetic fields such as transformers, power cables and loudspeaker wires. Do not coil excess power cable. - Page 15 29.5” D Manufacturer True Lee Loudspeakers | BASSBOSS 2028 E Ben White Blvd. #240-8220 Austin TX 78741 We declare, under our sole responsibility, that to the best of our knowledge to which this declaration relates, our products are in conformity with the applicable requirements.
- Page 16 Single 18” DJ18S-MK3 Powered Subwoofer Need more assistance? We’re here to help. bassboss.com/support...
