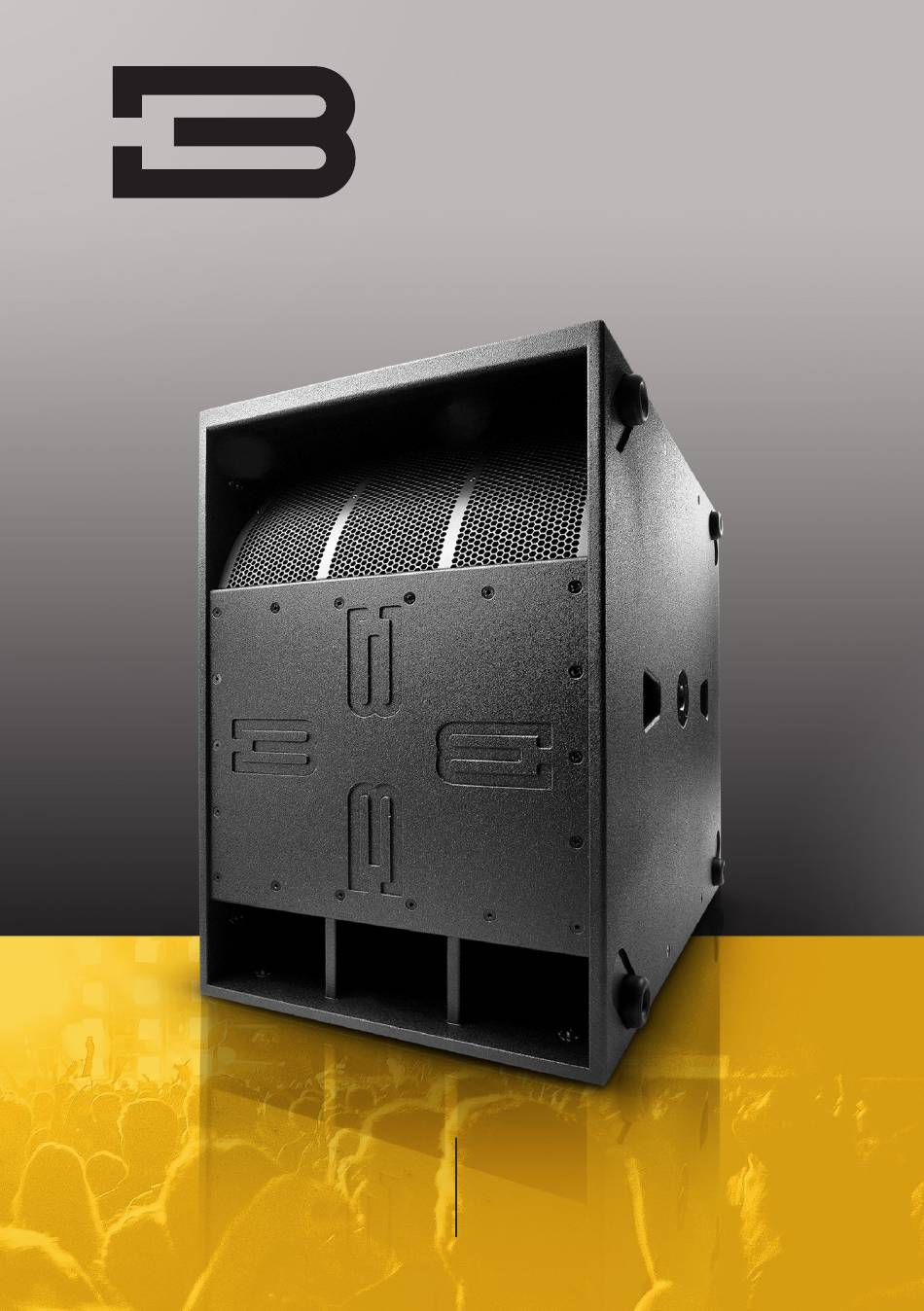

- Page 1 User Manual Single 21” VS21-MK3 Powered Subwoofer...
-
Page 2: Table Of Contents
18” subwoofers in combination with the hard hitting punch of horn loaded subwoofers. The VS21-MK3 brings the world of extended low frequency together with the world of high-impact: You’re no longer forced to choose either deep OR punchy, as the VS21 offers both. - Page 3 The MK3 DSP features storage capacity of up to 100 presets, eight of which can be accessed at the touch of a button with no need for a connected computer. The eight directly accessible presets are compatible with all the presets in the MK3 Top Boxes and are also compatible with previous generation tops and subs. bassboss.com 3...
-
Page 4: Quick Start Guide
Provided the cabinets are physically aligned, any BASSBOSS sub can be combined with any BASSBOSS top and their outputs will be phase-coherent. This means no cancellations and no gaps in the response at the crossover frequency, regardless of which preset is selected. -
Page 5: Outboard Processor Warning
Outboard Processing Warning Third-party outboard processing (Drive Racks, etc.) are not recommended and are not necessary with BASSBOSS MK3 series powered loudspeakers. Outboard processing will not improve, and will very likely degrade the sound quality, reliability and output capacity. Using external processing inappropriately can cause driver damage that is not covered by warranty. -
Page 6: Operation And Controls
1. Each preset includes all necessary low-pass and high-pass filters at the selected frequencies and all the necessary alignments to maintain phase coherence in the crossover range when used with other BASSBOSS powered speakers. Presets help you fine-tune the balance between the subwoofers and top speakers. More details on the different combinations are on page 7. -
Page 7: How To Use The Presets
It’s recommended that you try several, if not all, combinations when first setting up to determine which combination works best in each environment. You will likely choose different combinations for wood floors, concrete floors and outdoors. Experiment with different combinations to dial in your preferred combination in different environments. bassboss.com 7... -
Page 8: Pre-Installed Onboard Presets
Additional presets are accessible through software. See “How to Use the Presets” section for more information. New presets will be available for download at bassboss.com/software as they are developed. To be notified when new presets are released register your gear at: www.bassboss.com/support Instructions on linking to your computer for remote monitoring and control: www.bassboss.com/software... -
Page 9: Power Distribution
Connect no more than one 5000W or two 2500W subwoofer amplifiers to a single 20A circuit. If you need to share circuits don’t exceed two BASSBOSS single-driver subwoofers or one double-driver subwoofer along with one or two top speakers on the same circuit. -
Page 10: Cardioid Mode
The main subwoofer cabinets face the audience and use one of the first 7 presets, while the cardioid cabinet faces away from the audience with Preset 8 selected. When two cabinets are facing forward and one is facing backward in cardioid mode, set the input levels the same for all cabinets, with the same signal going to all. When one cabinet is facing forward and one is facing backward in cardioid mode, set the cardioid cabinet’s level 6dB lower than the forward-facing cabinet, with both cabinets receiving the same signal. If there’s only one cabinet facing forward and another one facing backward in cardioid mode, you can place the cardioid cabinet on top of the forward-facing cabinet. If you place the cardioid cabinet next to the forward-facing cabinet, position the forward-facing cabinets further away from the stage or the area where you want to reduce sound levels. The most significant sound reduction happens along an imaginary line drawn from the center of the forward-facing cabinet’s woofer back through the center of the cardioid cabinet’s woofer. How and When to Use Cardioid Mode Cardioid mode doesn’t make the sound louder for the audience. Instead, it reduces the bass level behind the subwoofer stacks. When you have two subwoofers facing the audience and add a third one in cardioid mode, the sound level in front of the two subwoofers won’t change much. However, the sound level behind them will decrease. In some situations a wall or structure may reflect the sound radiating from the rear of the subwoofers back towards the audience. That reflected sound can cause phase cancellations leading to a loss of impact and uneven frequency response. Cardioid mode can help eliminate those cancellations before they happen, leading to better sound quality and impact for the audience. Area of Audience Reduced Area Bass Level VS21-MK3 User Manual... -
Page 11: Specifications
Heavy-duty padded nylon transport covers for 1 cabinet Online Information: bassboss.com/VS21 *Peak output is calculated using “industry standard” techniques. These calculation methods create theoretical specifications that are inflated over what can actually be achieved. BASSBOSS real world output specifications are provided as “Maximum SPL” ratings, which reflect actual measured output levels. Our proactive philosophy causes specifications to be subject to change whenever improvements are made. bassboss.com 11... -
Page 12: Warranty
BASSBOSS personnel. Service will be performed upon the return of the failed unit, together with its original sales receipt or other proof of purchase, to BASSBOSS or an Authorized Service Facility. Purchaser is responsible for all costs of shipping and handling. Cosmetic damage is specifically excluded from this warranty. -
Page 13: Safety Information
Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual. Contact your dealer or BASSBOSS support if the product is not functioning properly. For installation purposes BASSBOSS strongly recommends that this product be installed by a qualified, professional installer who can ensure correct installation and certify that it is installed in compliance with the regulations in force. -
Page 14: Important Notes
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense. VS21-MK3 User Manual... - Page 15 Manufacturer True Lee Loudspeakers | BASSBOSS 2028 E Ben White Blvd. #240-8220 Austin TX 78741 We declare, under our sole responsibility, that to the best of our knowledge to which this declaration relates, our products are in conformity with the applicable requirements.
- Page 16 Single 21” VS21-MK3 Powered Subwoofer Need more assistance? We’re here to help. bassboss.com/support...
