Bromic Heating WATERBOY Vortex 7575150 Operation Manual

Congratulations on your purchase of your Bromic Waterboy
submersible Vortex sump pump.
This manual contains essential information on the installation,
operation and maintenance of the pump. Please read it thoroughly
and follow these instructions in order to install and use the pump
correctly. Failure to follow these instructions may result in motor
overcharging and other malfunctions. Bromic is not liable should
instructions not have been followed.

Specification

1. Maximum operating depth 5m below water level;
2. Continuous duty when fluid temperature under +40°C;
3. Value of PH in fluid 4~10;
4. Maximum kinematic viscosity: 7xl0
5. Maximum density: l.2xIO
Technical data (the data will be some change under
different voltage and frequency)
Power
Model Input Discharge
(kw)
(mm)
7575150
0.34 40,32,25
220-240/50

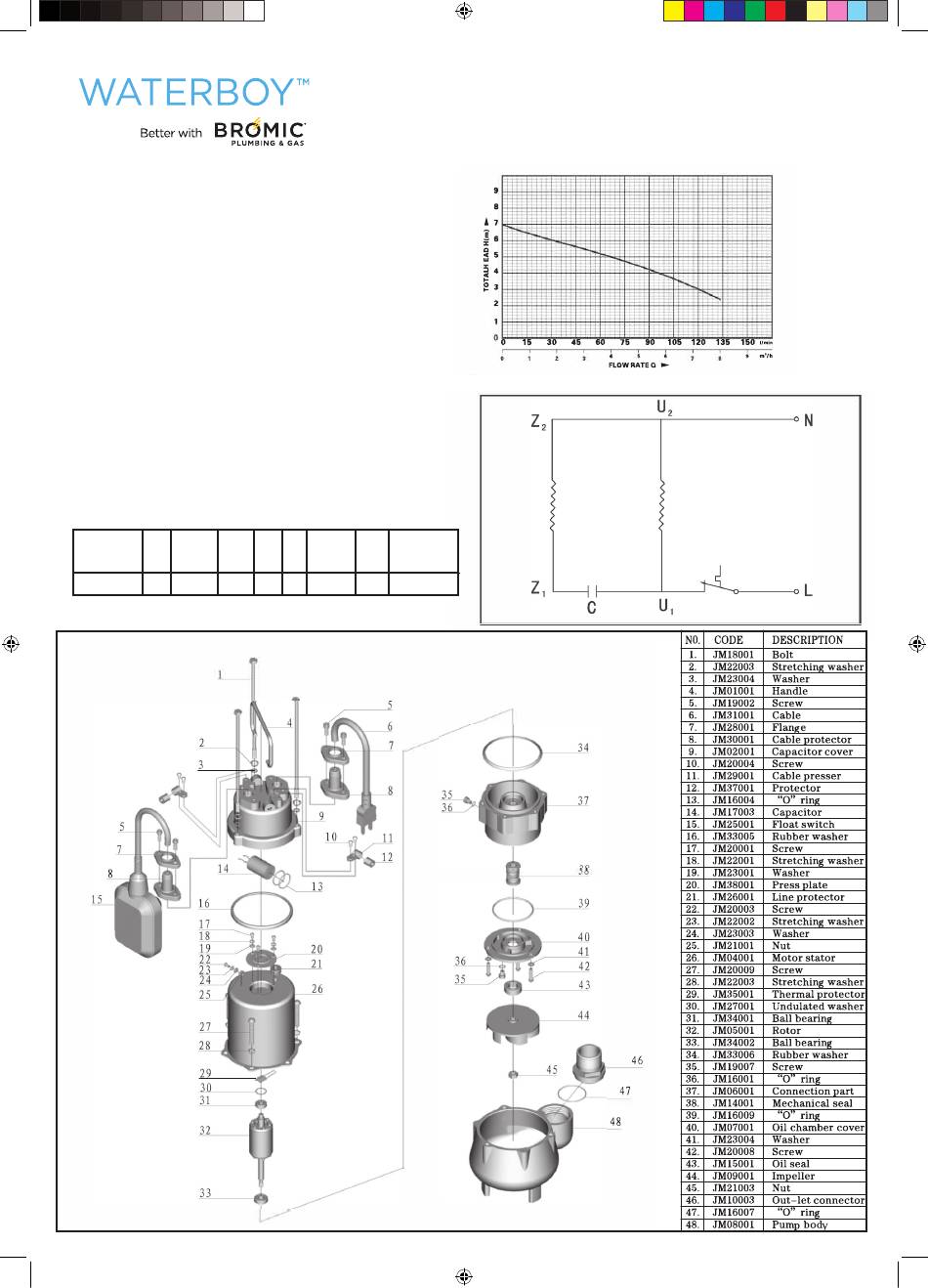

Part View
7575150 Instruction Manual - 2022.indd 1 7575150 Instruction Manual - 2022.indd 1
~23x10 m /s;
-7 -6 2
kg/m
3 3
Max Max Max.
Voltage Flow Head Suspended Weight
solid
(V/Hz) (l/min) (m) (l/min) (kg)
133 7 15 9 20.5
Vortex Submersible Pump - 7575150
Operation Manual
Performance Curve
Circuit Diagram
Packing
(cm)
20.0 37.5
X X
12/2022 - V1.5
