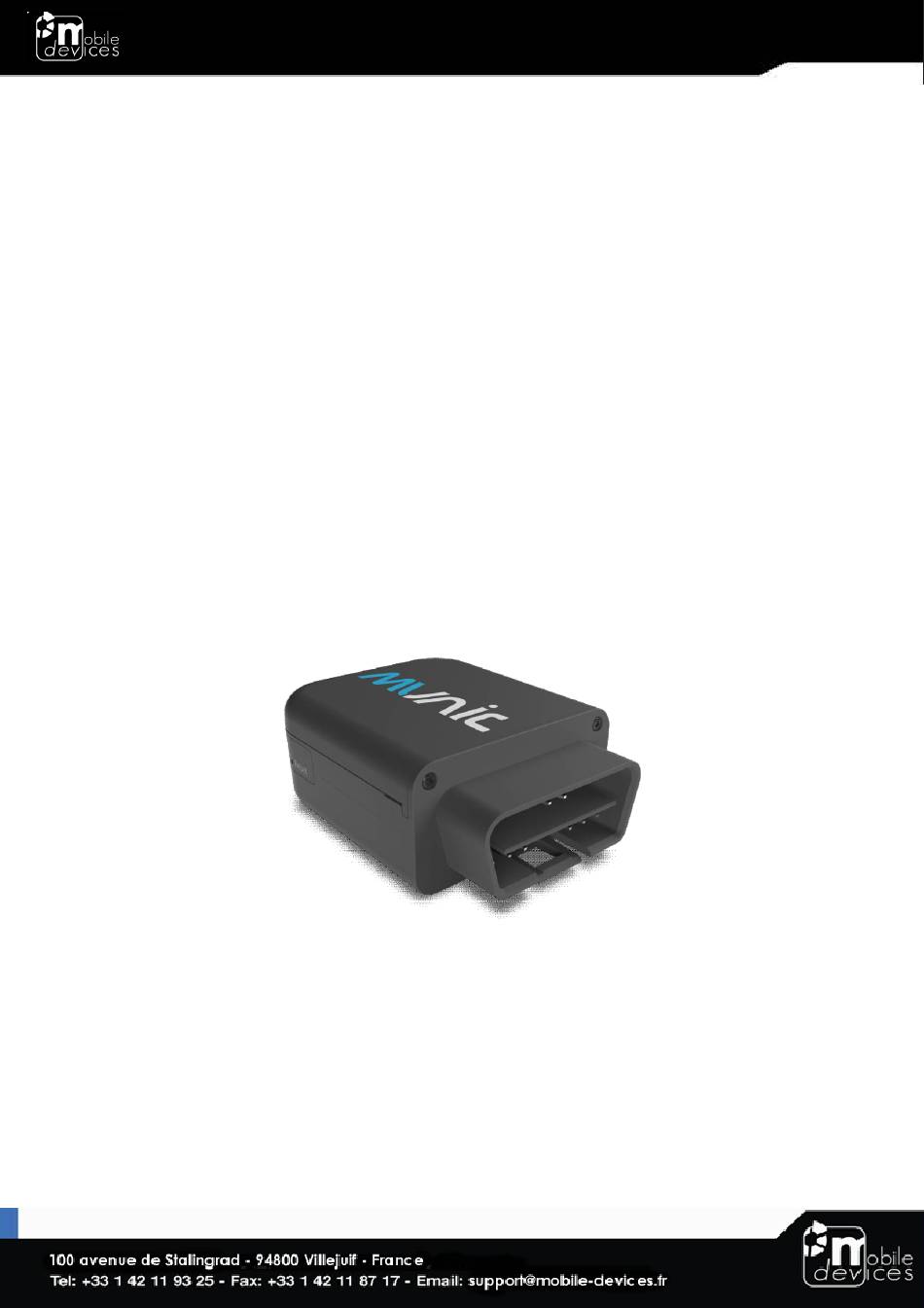

- Page 1 C4D-4G4EUAB_V7+ - INSTALLATION GUIDE V 1.0 08/11/2019...
-
Page 2: Table Of Contents
Table of contents Preface .................... 3 Warnings and notices ................3 1. Hardware features ................5 2. Hardware description ................6 2.1 External view .................. 6 2.2 Internal view ................... 6 2.3 OBD connector pin out ..............7 2.4 OBD adapter wires ..............7 3. -
Page 3: Preface
The information contained in this installation guide is subject to changes in order to improve the reliability, design or features without prior notice. Mobile Devices Ingénierie reserves the right to make changes in the content without obligation to notify any person or organisation of such changes or improvements. Mobile Devices Ingénierie can in no event be held liable for technical or editorial errors or omissions herein, nor for incidental,... -
Page 4: Hardware Features
1. Hardware features OBD Dongle Performance Processor Cortex A5 - 500MHz 1 Gbytes NAND Flash 2 Gbytes Power supply External power supply range 8-18V External voltage ● measurement Li-pol battery 270mAh Communication Modem 4G Cat.4 module (LE910C4-EU) Modem antenna Internal Micro SIM clot WLAN Wifi... -
Page 5: Hardware Description
2. Hardware description 2.1. External view 1 : OBD connector 2 : Reset button 3 : Power led 4 : Signal led 2.2. Internal view 5 : GNSS antenna 6 : SIM holder 7 : Internal battery* * Please read warnings section at the beginning of the installation guide... -
Page 6: Obd Connector Pin Out
2.3 OBD connector pin out Pin # Comment OEM specific J1850+ (PWM/VPW) OEM specific Chassis ground Signal ground CAN High K line OEM specific J1850- (PWM) OEM specific CAN low L line Battery voltage 2.4 OBD adapter wires This adapter is only used to connect the OBD to a computer (laptop/desktop). Pin # Wire color Yellow... -
Page 7: Preparing/Installing The Device
3. Preparing/installing the device Those operations may need the use of specific tools like : TORX pattern TX5 screwdriver for the screw. Small slotted screwdriver to remove the cover. Thin tweezers to insert/remove the SIM card. 3.1. Open the device Remove the two screw using TX5 screwdriver Use slotted screwdriver to pop-out the top cover on both side. - Page 8 Move apart the side of the device and pull the corner of the back cover out of his spot Pull the back cover on the rear and remove the back cover. Device is now open...
-
Page 9: Insert The Sim Card
3.2. Insert the SIM card The SIM card slot is located between the two electronic cards. Insert the card with contact on bottom into the slot and push it as far as it will go. Once inserted the SIM card looks like this:... -
Page 10: Properly Close The Device
3.3. Properly close the device First, insert the back cover beginning with corner near the power led. Second, Move apart the side of the device and push the back cover on the spot Third, insert the top cover beginning with the back and push on top to clip-on the top cover Finally, place the screw. -
Page 11: Install The Obd Dongle
3.4. Install the OBD Dongle Connect the OBD Dongle on your vehicle OBD connector. 4. LED sequences The Dongle has a two-coloured LED, green and red. When both colours are brightened, you can see an orange light. Green LED Red LED Sequence Meaning Sequence...
