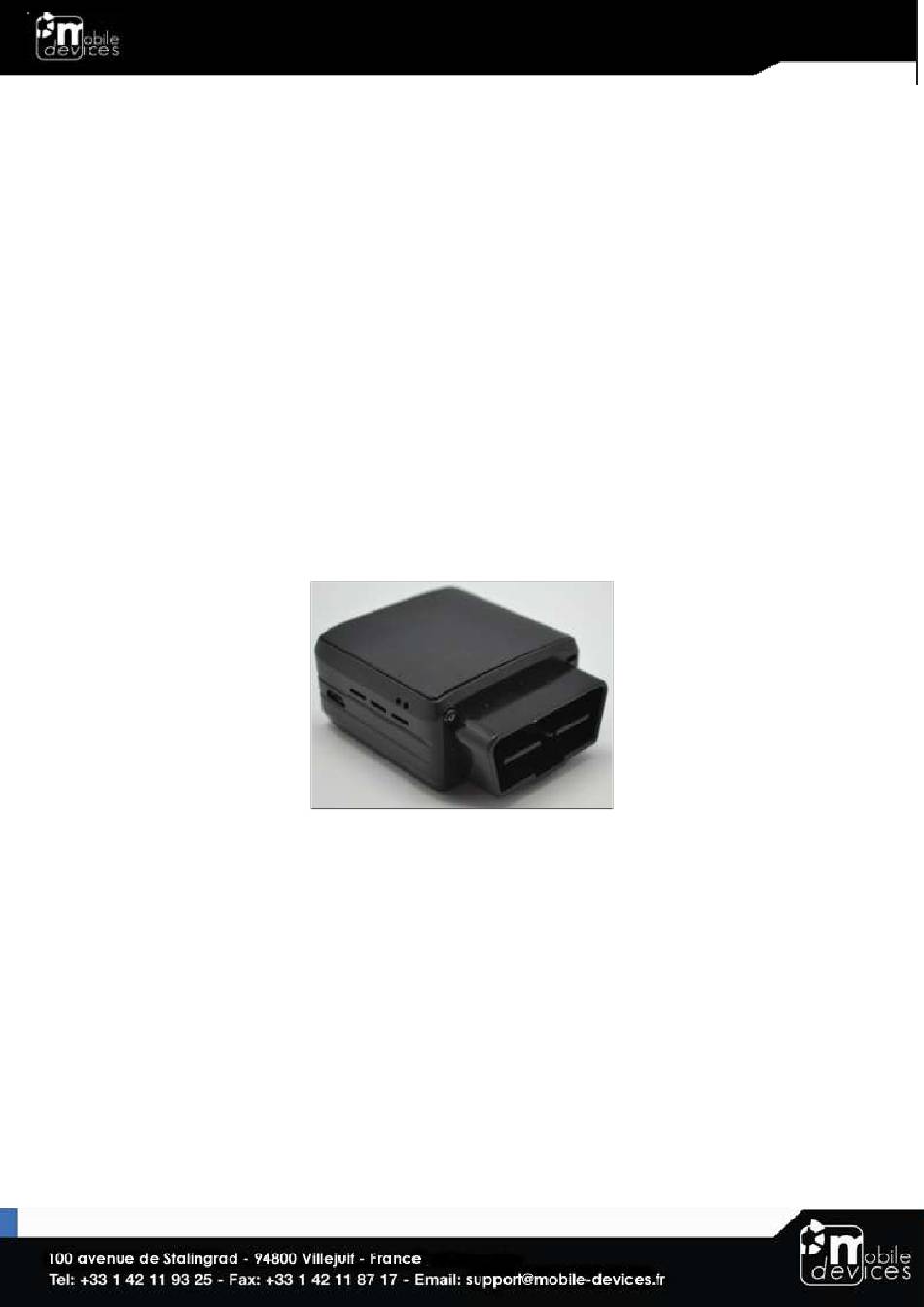

- Page 1 C4D-4MEUAD_V6 - INSTALLATION GUIDE 21/05/2019...
-
Page 2: Table Of Contents
Table of contents Preface............................. 3 Warnings and notices ......................3 1. Hardware features ......................4 2. Hardware description ...................... 5 2.1. External view ....................... 5 2.2. Internal view ........................ 5 * Please read warnings section at the beginning of the installation guide ..5 2.3 OBD connector pin out .................... -
Page 3: Preface
Mobile Devices Ingénierie can in no event be held liable for technical or editorial errors or omissions herein, nor for incidental, special or consequential damages from the furnishing, performance or use of this installation guide. -
Page 4: Hardware Features
1. Hardware features OBD Dongle Performance Processor Cortex A5 - 500MHz 128 Mbytes NAND Flash 256 Mbytes Power supply External power supply 8-18V range External voltage ● measurement Li-pol battery 450mA.h Communication Modem 4G Cat-M1data module (SARA R410M- 52B) Modem antenna Internal Positioning GNSS receiver... -
Page 5: Hardware Description
2. Hardware description 2.1. External view ODB connector microUSB connector 2.2. Internal view Modem antenna GNSS antenna SIM holder Internal battery* Please read warnings section at the beginning of the installation guide... -
Page 6: Obd Connector Pin Out
2.3 OBD connector pin out Pin # Comment J1850+ (PWM/VPW) Chassis ground Signal ground CAN High K line J1850- (PWM) CAN low L line Battery voltage... -
Page 7: Preparing/Installing The Device
3. Preparing/installing the device 3.1. Open the device to insert a SIM card... -
Page 8: Properly Close The Device
3.2. Properly close the device First, check that the hole of the electronic card is correctly inserted in the plastic part. If it’s not inserted proceed as shown below. GOOD NOT GOOD Second, insert the GPS antenna as shown below. - Page 9 Third, check that the micro USB port is correctly inserted on its place. If it’s not inserted proceed as shown below. NOT GOOD GOOD Finally, insert the battery and place the screw.
-
Page 10: Install The Obd Dongle
3.3. Install the OBD Dongle Connect the OBD Dongle on your vehicle OBD connector. 4. LED sequences The Dongle has a two-coloured LED, green and red. When both colours are brightened, you can see an orange light. Green LED Red LED Sequence Meaning Sequence...
