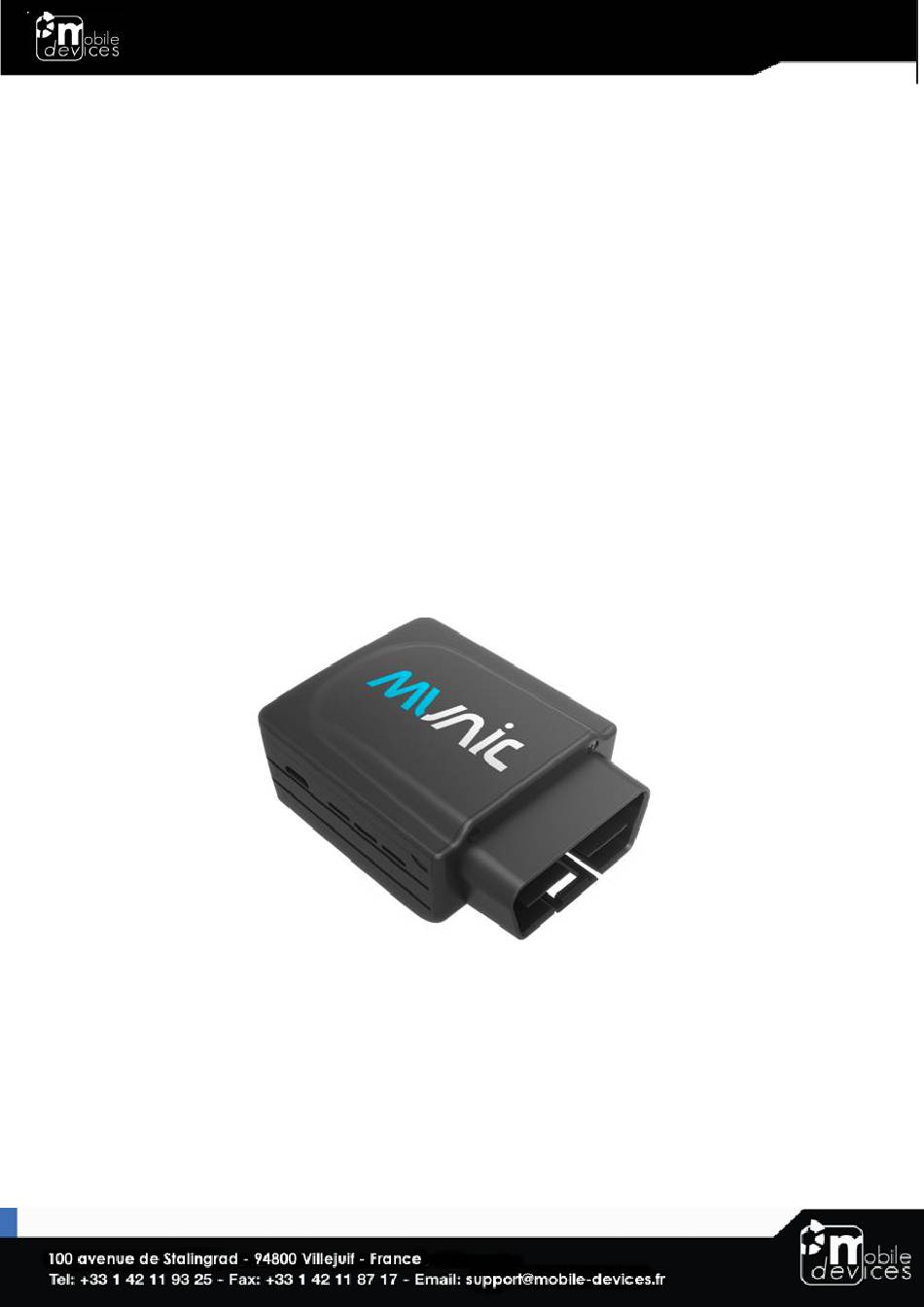

- Page 1 C4D-4G4EUAA_V6+ - INSTALLATION GUIDE V 2.0 30/12/2020...
-
Page 2: Table Of Contents
Table of contents Preface ........................3 Warnings and notices ....................3 RF Exposure Information (SAR) ................3 1. Hardware features ....................4 2. Hardware description ..................6 2.1. External view ....................6 2.2. Internal view ........................ 6 2.3 OBD connector pin out .................... 7 * Please read warnings section at the beginning of the installation guide .. -
Page 3: Preface
Mobile Devices Ingénierie can in no event be held liable for technical or editorial errors or omissions herein, nor for incidental, special or consequential damages from the furnishing, performance or use of this installation guide. -
Page 4: Hardware Features
1. Hardware features OBD Dongle Performance Processor Cortex A5 - 500MHz 128 Mbytes NAND Flash 256 Mbytes Power supply External power supply 8-18V range External voltage measurement Li-pol battery 270mA.h Communication Modem 4G Cat.4 Europe module (LE910-EU Modem antenna Internal WLAN Wifi WiFi 802.11 b/g/n 2.4G... - Page 5 Below value is the real value tested on conductive power, we kept sample at Lab. for trace. Mobile (UE) – GSM Power Band Power Class (dBm) E-GSM 900 32.70 DCS 1800 28.67 Mobile (UE) - UMTS Band I 22.14 Band VIII 23.1 Mobile (UE) - LTE FDD 1: Japan, Korea, Europe...
-
Page 6: Hardware Description
2. Hardware description 2.1. External view 1 : OBD connector 2 : USB connector 3 : Status led 2.2. Internal view 4 : GNSS antenna 5 : SIM holder 6 : Internal battery* * Please read warnings section at the beginning of the installation guide... -
Page 7: Obd Connector Pin Out
2.3 OBD connector pin out Pin # Comment J1850+ (PWM/VPW) Chassis ground Signal ground CAN High K line J1850- (PWM) CAN low L line Battery voltage Please read warnings section at the beginning of the installation guide 2.4 OBD adapter wires This adapter is only used to connect the OBD to a computer (laptop/desktop). -
Page 8: Preparing/Installing The Device
3. Preparing/installing the device 3.1. Open the device... -
Page 9: Insert/Remove The Sim Card
3.2. Insert/remove the SIM card The SIM card slot is located between the two electronic cards. Insert the card with contact on bottom into the slot and push it as far as it will go. Once inserted the SIM card looks like this:... -
Page 10: Properly Close The Device
3.3. Properly close the device First, check that the electronic card is correctly inserted in the plastic part and that usb port is correctly positioned into the casing. If it’s not inserted proceed as shown below. GOOD NOT GOOD NOT GOOD GOOD... - Page 11 Second, insert the back cover beginning with the bottom. Third, insert the top cover beginning with the back and push on top to clip-on the top cover Finally, place the screw.
-
Page 12: Install The Obd Dongle
3.3. Install the OBD Dongle Connect the OBD Dongle on your vehicle OBD connector. 4. LED sequences The Dongle has a two-coloured LED, green and red. When both colours are brightened, you can see an orange light. Green LED Red LED Sequence Meaning Sequence...
