C4D-2GEUAB_V6
INSTALLATION GUIDE
05/10/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C4D-2GEUAB V6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mobile Devices C4D-2GEUAB V6

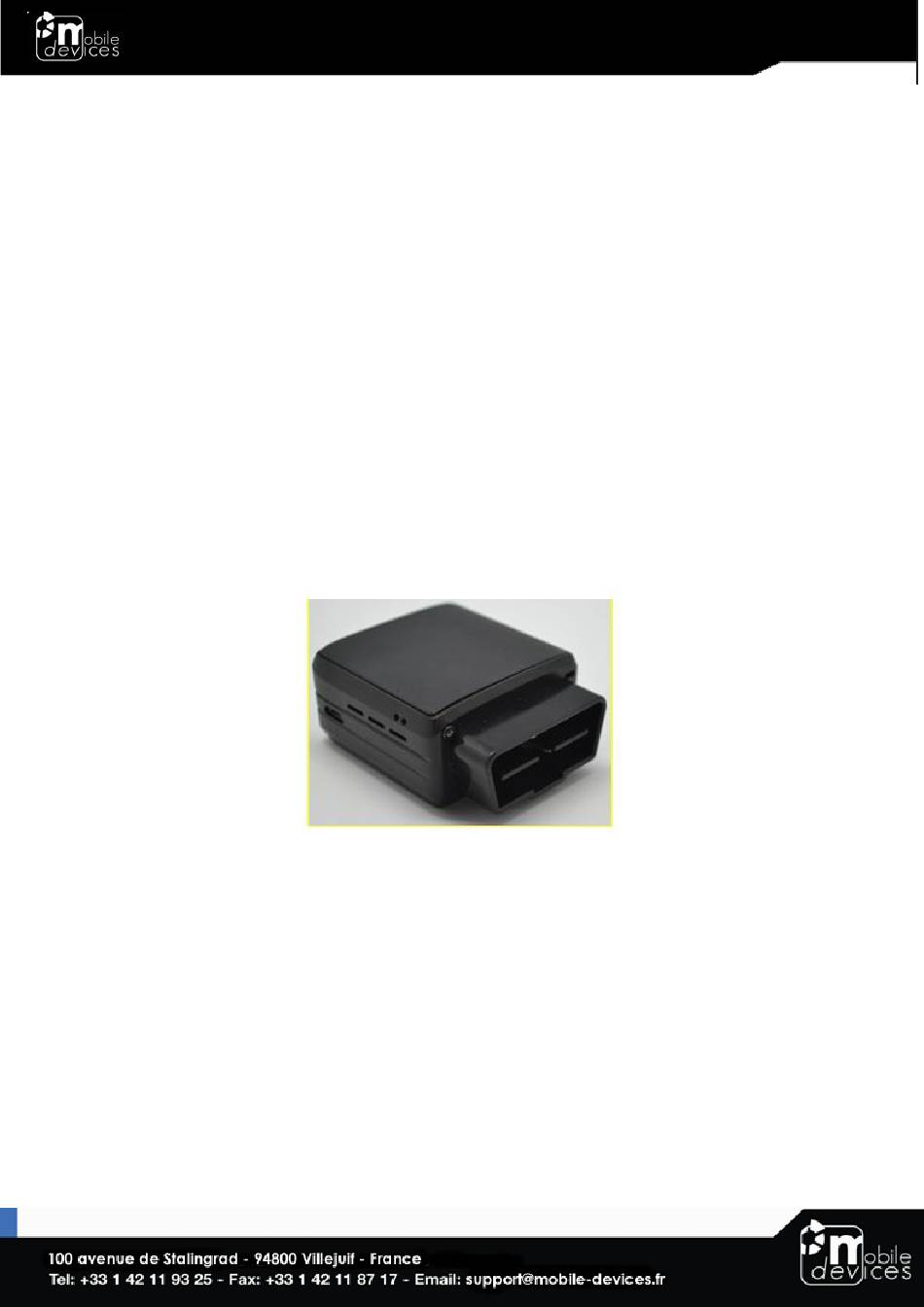

  • Page 1 C4D-2GEUAB_V6 INSTALLATION GUIDE 05/10/2019...
  • Page 2: Table Of Contents

    Table of contents Preface............................. 3 Warnings and notices ......................3 1. Hardware features ......................4 2. Hardware description ...................... 5 2.1. External view ....................... 5 2.2. Internal view ........................ 5 2.3. OBD connector pin out ................... 5 2.4 OBD adapter wires ..................... 6 3.
  • Page 3: Preface

    Mobile Devices Ingénierie can in no event be held liable for technical or editorial errors or omissions herein, nor for incidental, special or consequential damages from the furnishing, performance or use of this installation guide.
  • Page 4: Hardware Features

    1. Hardware features OBD Dongle Performance Processor Atmel SAMA5 - 500MHz 128 Mbytes NAND Flash 256 Mbytes Power supply External power supply 8- ● External voltage ● measurement Li-pol battery 450mA.h Communication Modem 2G QUAD Data module (u-blox SARA-G450) GSM antenna Internal Positioning GPS receiver...
  • Page 5: Hardware Description

    2. Hardware description 2.1. External view ODB connector microUSB connector 2.2. Internal view GSM antenna GPS antenna SIM holder Internal battery* 2.3. OBD connector pin out Pin # Comment Single-Wire CAN (optional) J1850+ (PWM/VPW) CAN2 High (optional) Chassis ground Signal ground CAN1 High K line CAN2 Low (Multiplexed...
  • Page 6: Obd Adapter Wires

    2.4. OBD adapter wires This adapter is only used to connect the OBD to a computer (laptop/desktop). Pin # Wire color Yellow Black Grey Green Blue Violet Orange White...
  • Page 7: Preparing/Installing The Device

    3. Preparing/installing the device 3.1. Open the device to insert a SIM card...
  • Page 8: Properly Close The Device

    3.2. Properly close the device First, check that the hole of the electronic card is correctly inserted in the plastic part. If it’s not inserted proceed as shown below. Second, insert the GPS antenna as shown below.
  • Page 9 Third, check that the micro USB port is correctly inserted on its place. If it’s not inserted proceed as shown below. Finally, insert the battery and place the screw.
  • Page 10: Install The Obd Dongle

    3.3. Install the OBD Dongle Connect the OBD Dongle on your vehicle OBD connector. 4. LED sequences The Dongle has a two-coloured LED, green and red. When both colours are brightened, you can see an orange light. Red LED Green LED Sequence Meaning Sequence...
