AW Pro Series Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW Pro Series and is the answer not in the manual?

Questions and answers

Related Manuals for Audex AW Pro Series

Summary of Contents for Audex AW Pro Series

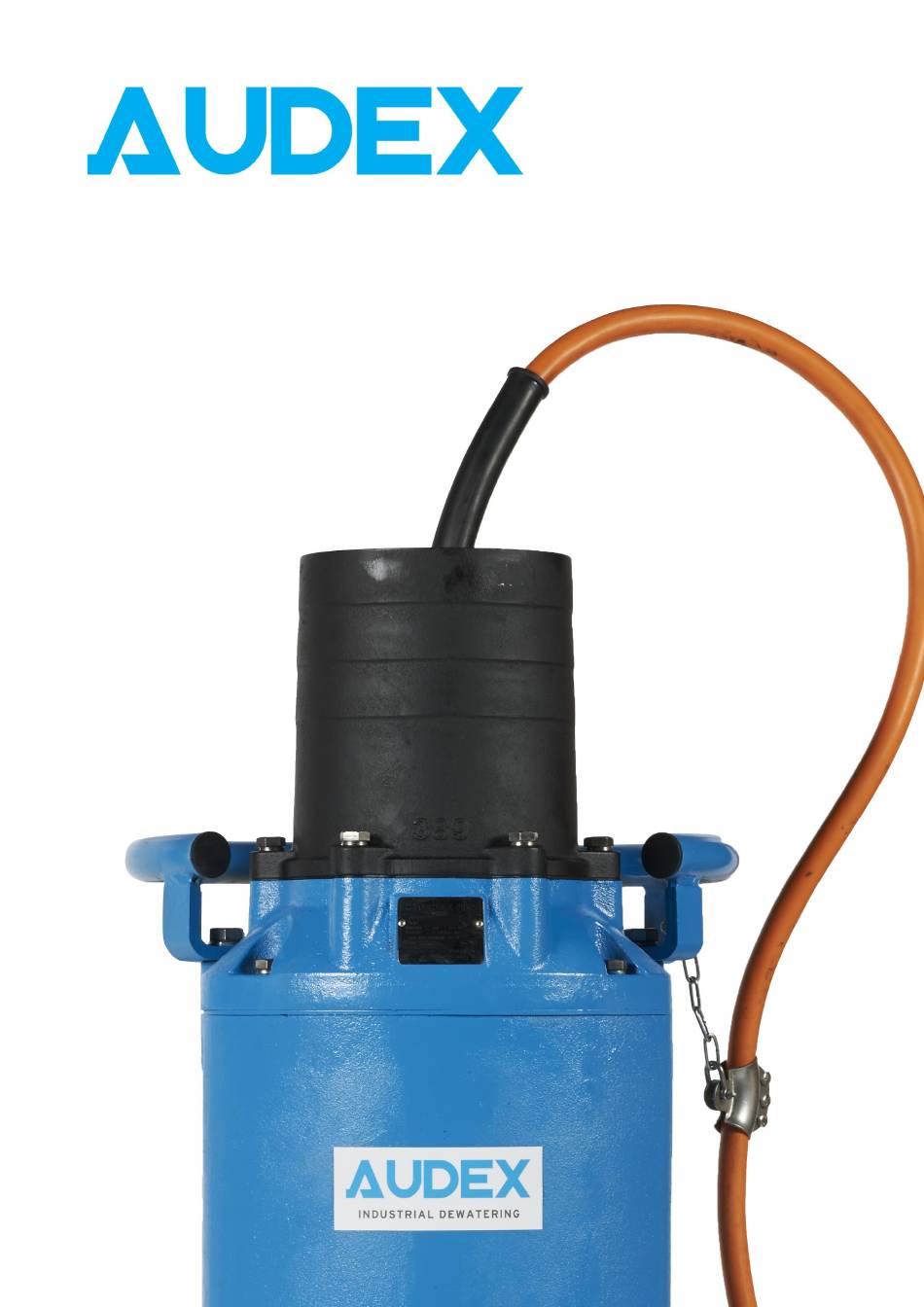

  • Page 1 AW Pro Series Manual...

  • Page 2: Table Of Contents

    Audex Manual Contents Warnings and Safety ……….…….……….……….………………….………….…..…………………… Prior to Use ……………………………………………………………………………………………... Installation Considerations ………………………………………………………………………………. Installation Preparation …………………………………………………………………………………... Installation Electrical …………………………………………….………………………………………... Installation Testing ……………………………………………………………………………………….. Running ………………………………………………………………………………………….………... Maintenance Routine …………………………………………………………………………………….. Maintenance Parts Diagrams ……………………………………………………………………………... Maintenance Disassembly AW 1.5 - 3.7kW …………..…………………………………………………. Maintenance Assembly AW 1.5 - 3.7kW …………..……………………………………………………..

  • Page 3: Warnings And Safety

    Warnings & Safety Warnings & Safety Read this manual carefully before installing and using your Audex AW Pro pump. Improper use of this product can cause personal injury and damage to property and may void the warranty. Please retain this manual for future reference and keep it readily available at the location of the unit.
  • Page 4 Warnings & Safety Installation For electrical installation recycling requirements, consult your local electricity authority and conform to all local and national regulations. Disconnect and lock out electrical power before installing, servicing, or maintaining the unit. Make sure that the unit is mechanically secure, and that it cannot roll or fall over and injure people or damage property.
  • Page 5 Warranty The Audex comprehensive global warranty is included in your sale price. Applies to Audex pumps purchased from Atlantic Pumps UK or All Pumps Argentina, or an authorized Intrax distributor. To keep your Warranty valid, please note: •...
  • Page 6 Warnings & Safety Environmental Always keep the operation, storage, and maintenance areas clean to avoid and/or discover oil and other contaminant leakages etc. Dispose appropriately of all waste, particularly if any non-biodegradable oils used. Handle and dispose of the processed liquid in compliance with all applicable environmental regulations. Clean up all spills in accordance with all applicable safety and environmental procedures.

  • Page 7: Prior To Use

    Prior to Use Prior to Use 1. Inspect the product a. Ensure that all items on the delivery note or packing list are present, and that no items are damaged. b. Unpack the goods and visually ensure that all parts are undamaged. Check that bolts and screws have not come loose during transit.

  • Page 8: Installation Considerations

    Audex pumps should never be stood on the base of a tank where silt or sand could build iii. Ensure that the cable has no sharp bends, is not pinched, and cannot be drawn into the pump inlet.

  • Page 9: Installation Preparation

    Installation Preparation Installation Preparation 1. Pre-installation a. Recommended required install tools i. AC voltmeter ii. AC ammeter (non-contact CT type) iii. Insulation resistance tester iv. Spanners / wrenches v. Screwdrivers vi. Cable preparation tools as appropriate vii. Electrical panel key...

  • Page 10: Installation Electrical

    Installation Electrical Installation Electrical 1. Electrical connection a. Preparation i. Ensure that the voltage and frequency of the supply match the requirements on the data plate. ii. Ensure that all circuit breakers and similar equipment are rated correctly, and set to the appropriate level where applicable.
  • Page 11 All cable bends should not be sharp. The cables have a minimum bending radius which is available from Audex or your local distributor if in doubt. vii. The voltage drop in long cables must be taken into account. The pump rated voltage is as at the pump, not the supply end of the cable.

  • Page 12: Installation Testing

    Installation Testing Installation Testing 1. Operation – This is a general guide and location specific considerations must be taken into account to ensure safety. i. Attach the hose / pipework ii. Put the pump into the fluid in its final location iii.

  • Page 13: Running

    Installation Testing Running Your pump will not start unless the float switch / level sensor is submerged. After turning the pump on it will not start for 60 seconds, which prevents the pump rapidly cutting on and off when the float switch / level sensor is splashed with water. If the pump is connected up to run the wrong way, it will not start at all.

  • Page 14: Maintenance Routine

    Maintenance Routine Maintenance Routine 1. Routine maintenance a. Oil checks i. Remove the oil plug and take out a small amount of oil. The oil can be extracted easily by tilting the pump so that the oil plug faces downward. If the oil appears discoloured or mixed with water, a likely cause is a defective or worn mechanical seal which means that a full refurbishment is necessary before the pump next runs.

  • Page 15: Maintenance Parts Diagrams

    Maintenance Parts Diagrams Maintenance Parts Diagrams AW Pro 2-150 TA...
  • Page 16 Maintenance Parts Diagrams I AW Pro 2-150 TA...
  • Page 17 Maintenance Parts Diagrams I AW Pro 2-150 TA Index Part Q'ty Material Index Part Q'ty Material Hose Coupling Cast Iron Spring Washer AISI304SS Handle Rubber & Steel Bearing Washer Upper Cover Cast Iron Washer AISI304SS Upper Support Cast Iron Washer AISI304SS Bearing House Cast Iron...
  • Page 18 Maintenance Parts Diagrams I AW Pro 2-220 TA AW Pro 2-220 TA...
  • Page 19 Maintenance Parts Diagrams I AW Pro 2-220 TA...
  • Page 20 Maintenance Parts Diagrams I AW Pro 2-220 TA Index Part Q'ty Material Index Part Q'ty Material Hose Coupling Cast Iron Spring Washer AISI304SS Handle Rubber & Steel Bearing Washer Upper Cover Cast Iron Washer AISI304SS Upper Support Cast Iron Washer AISI304SS Bearing House Cast Iron...
  • Page 21 Maintenance Parts Diagrams I AW Pro 3-370 TA AW Pro 3-370 TA...
  • Page 22 Maintenance Parts Diagrams I AW Pro 3-370 TA...
  • Page 23 Maintenance Parts Diagrams I AW Pro 3-370 TA Index Part Name Q'ty Material Index Part Name Q'ty Material Hose coupling Cast iron Bolt AISI304SS Handle Rubber & steel Bolt AISI304SS Terminal box Cast iron Bolt AISI304SS Terminal block Screw Upper cover Cast iron Screw AISI304SS...
  • Page 24 Maintenance Parts Diagrams I AW Pro 4-370 TA AW Pro 4-370 TA...
  • Page 25 Maintenance Parts Diagrams I AW Pro 4-370 TA...
  • Page 26 Maintenance Parts Diagrams I AW Pro 4-370 TA Index Part name Q'ty Material Index Part name Q'ty Material Hose Coupling Cast Iron Bolt AISI304SS Handle Rubber & Steel Screw Terminal Box Cast Iron Screw AISI304SS Terminal Block Bolt Upper Cover Cast Iron Screw Upper Support...

  • Page 27: Maintenance Disassembly Aw 1.5 - 3.7Kw

    Maintenance Disassembly Maintenance Disassembly AW 1.5 - 3.7kW Disassembly Instructions Ensure that the pump has been isolated and that there is not any static energy within the pump system (i.e. that the discharge is not pressurised). Remove the cable gland, and internally disconnect the cable. Lay the pump on its side, with the oil drain plug lowermost over an oil collection vessel.
  • Page 28 Maintenance Disassembly Unfasten the agitator by screwing it anti-clockwise with a spanner whilst ensuring the impeller does not rotate. Remove the impeller spring washer and impeller protecting cap. 10. Remove the impeller, either by pulling directly by hand, or with mechanical aids. Do not under any circumstances heat the impeller.
  • Page 29 Maintenance Disassembly 12. Remove the impeller shim. 13. Take the shaft sleeve out. 14. Take off the impeller v-ring. 15. Unfasten the hex head volute set screws. 16. Carefully take off the volute with attached empty oil chamber. It is important that this part remains perpendicular to the shaft, avoiding contact with the shaft itself.
  • Page 30 Maintenance Disassembly 17. Remove the oil chamber O-ring seal. 18. Remove the screws holding the lower seal retaining plate to the inside of the oil chamber, and carefully take out the lower stationary mechanical seal hard wearing face by applying pressure from the outside face, to avoid damage.
  • Page 31 Maintenance Disassembly 24. Remove the fixings from the lower bearing retention plate, which holds the lower bearing(s) into the bearing housing. 25. Remove the bearing housing from the lower bearing(s) using mechanical aids if necessary. 26. Take out the oil (lip) seal from the bearing housing, where present. 27.

  • Page 32: Maintenance Assembly Aw 1.5 - 3.7Kw

    Maintenance Assembly Maintenance Assembly AW 1.5 - 3.7kW Assembly Instructions With the pump casing upright, place the stator housing o-ring onto the upper cover and the discharge gasket around the discharge. Take the upper casing and feed the stator cables through the gland hole. Place the upper casing onto the main casing (and the handle where present), then insert the set screws and tighten.
  • Page 33 Maintenance Assembly Lay the pump on its side, with the oil plug location uppermost. Insert the wave pad into the upper bearing journal. Heat the upper bearing on a suitable bearing heater, and slide it onto the non-threaded end of the shaft. Add the upper bearing retention circlip if present.
  • Page 34 Maintenance Assembly 21. Place the oil chamber o-ring seal onto the oil chamber. 22. Carefully put the volute assembly onto the shaft, taking great care to ensure that the mechanical seal face does not come into contact with the shaft. 23.
  • Page 35 Maintenance Assembly 27. Push the impeller onto the shaft with anti-seize, do not use any heat. 28. Insert the impeller boss cap, spring washer and screw on the agitator. 29. Place the wear plate shims onto the wear plate and place into the volute, fastening with the strainer studs.
  • Page 36 Maintenance Assembly 31. Pour the recommended amount of oil into the oil chamber (or until almost full). Audex recommends biodegradable hydraulic oil. 32. Ensure the oil plug has its o-ring seal on, and insert it into the pump. Wipe up any excess oil so that any leaks will be quickly spotted.

  • Page 37: Storage

    Storage Storage Storage Instructions If your pump is not needed for longer than one week, run it anyway for at least 10 seconds per week to ensure that the rotating elements do not seize, and the mechanical seal faces remain wetted. If your pump will not be in use for longer than one month, it is not advisable to leave it in the water.

  • Page 38: Running

    Data Tables Running Your pump will not start unless the float switch / level sensor is submerged After turning the pump on it will not start for 60 seconds, which prevents the pump rapidly cutting on and off when the float switch / level sensor is splashed with water. If the pump is connected up to run the wrong way, it will not start at all.

  • Page 39: Data Tables

    Data Tables Data Tables Data Tables Model Oil Volume (ml) Minimum Continuous Working Level Maximum Submergence Depth AW Pro 2-150 600ml 135mm 0.5MPa (5kgf/cm2) * AW Pro 2-220 600ml 135mm 0.5MPa (5kgf/cm2) * AW Pro 3-370 100ml 165mm 0.5MPa (5kgf/cm2) * AW Pro 4-370 100ml 165mm...
  • Page 40 T: 01246 284 420 E: info@atlanticpumps.co.uk W: audexpumps.com. Audex AW Manual first edition published 12/20. Audex is an Atlantic Pumps brand and is part of the Intrax Global Group. Atlantic Pumps Ltd is a Limited Company registered in England number 09400148. Registered Office: Atlantic Pumps, Unit 21 Prospect...

This manual is also suitable for:

Aw pro 2-150 taAw pro 2-220 taAw pro 3-370 taAw pro 4-370 ta
