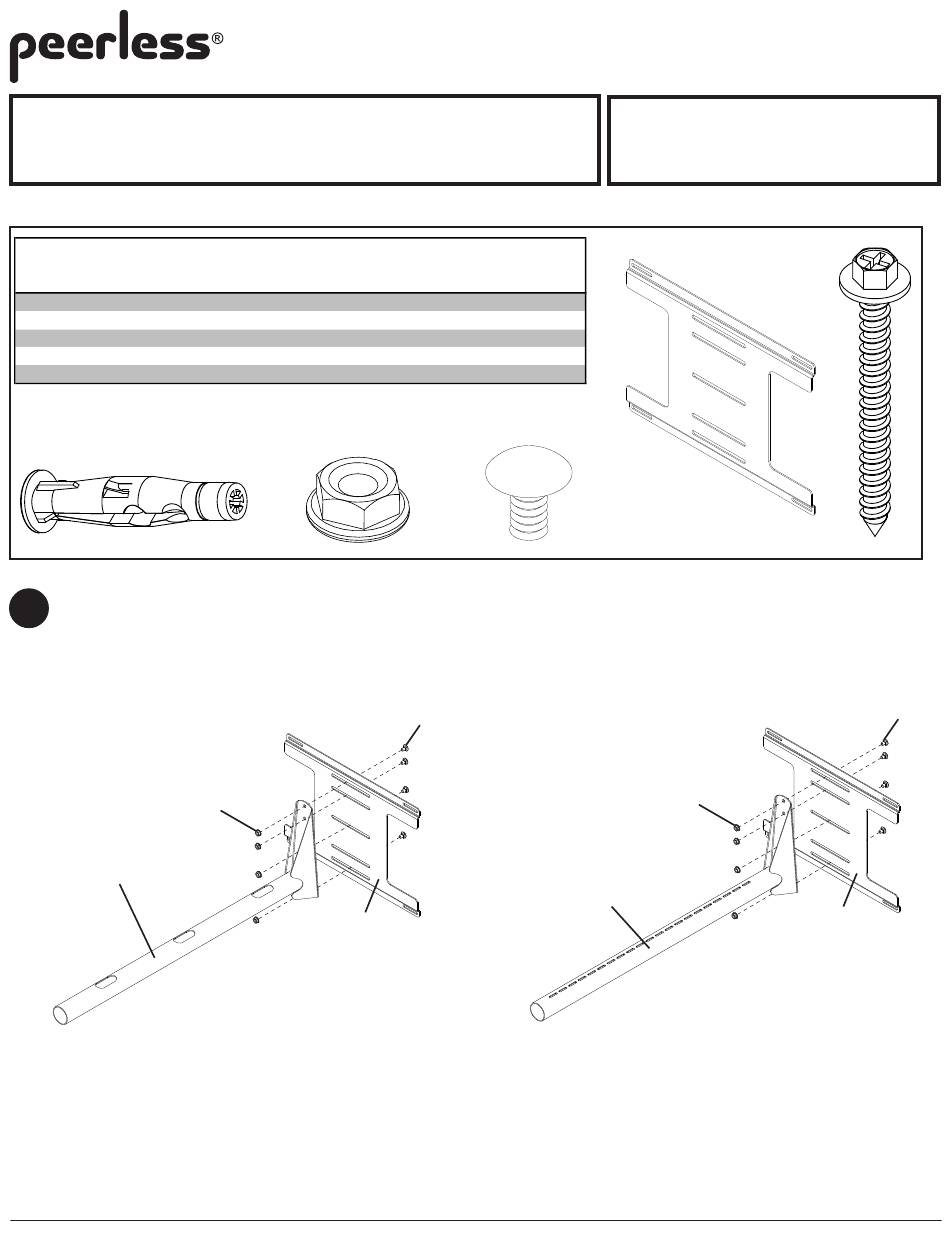

Installation and Assembly:
WALL PLATE ACC KIT FOR PSTA-%, PSTK-%
IMPORTANT: Read instruction sheet before you start installation and assembly.
Parts List
Description
A

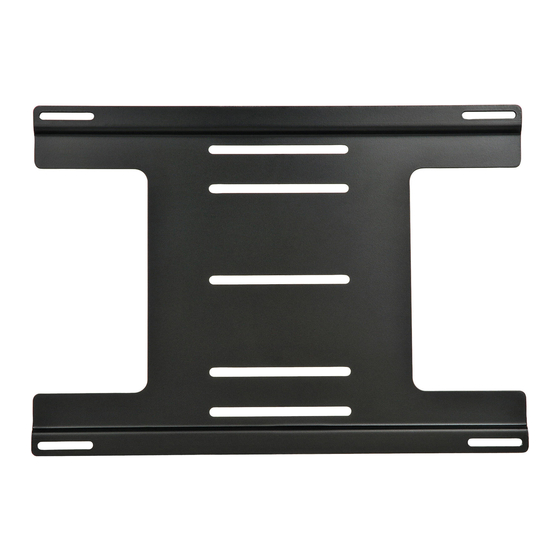

wall plate
B
#14 x 2.5 phillips hex head wood screw
concrete anchor
C
D
lock nut
E
carriage bolt
C
NOTE: Some parts may appear slightly different than illustrated.
1
Select model of projector wall arm. Secure wall arm (sold separately) to wall plate (A) using four carriage bolts (E)
and lock nuts (D).
Sold Separately
PSTA-028, PSTA-028-W
PSTK-028, PSTK-028-W
Visit the Peerless Web Site at www.peerlessmounts.com
Qty. Part #
1
4
4
4
4
D
D
A
WBK-100-W
WBK-100
Part #
055-1923
055-2923
5S1-015-C03 5S1-015-C04
590-0320
590-0320
530-1016
530-2016
520-9207
520-2047
E
E
Sold Separately
Models:
WBK100,
WBK100-W
A
D
PSTA-2955, PSTA-2955-W
PSTK-2955, PSTK-2955-W
ISSUED: 03-23-09 SHEET #:055-9262-1
B
E
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for peerless-AV WBK100
Summary of Contents for peerless-AV WBK100
- Page 1 Installation and Assembly: Models: WBK100, WALL PLATE ACC KIT FOR PSTA-%, PSTK-% WBK100-W IMPORTANT: Read instruction sheet before you start installation and assembly. Parts List WBK-100-W WBK-100 Description Qty. Part # Part # wall plate 055-1923 055-2923 5S1-015-C03 5S1-015-C04 #14 x 2.5 phillips hex head wood screw...
- Page 2 Installation to Wood Stud Walls WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.
- Page 3 Installation to a concrete or cinder block wall WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual con- crete surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
