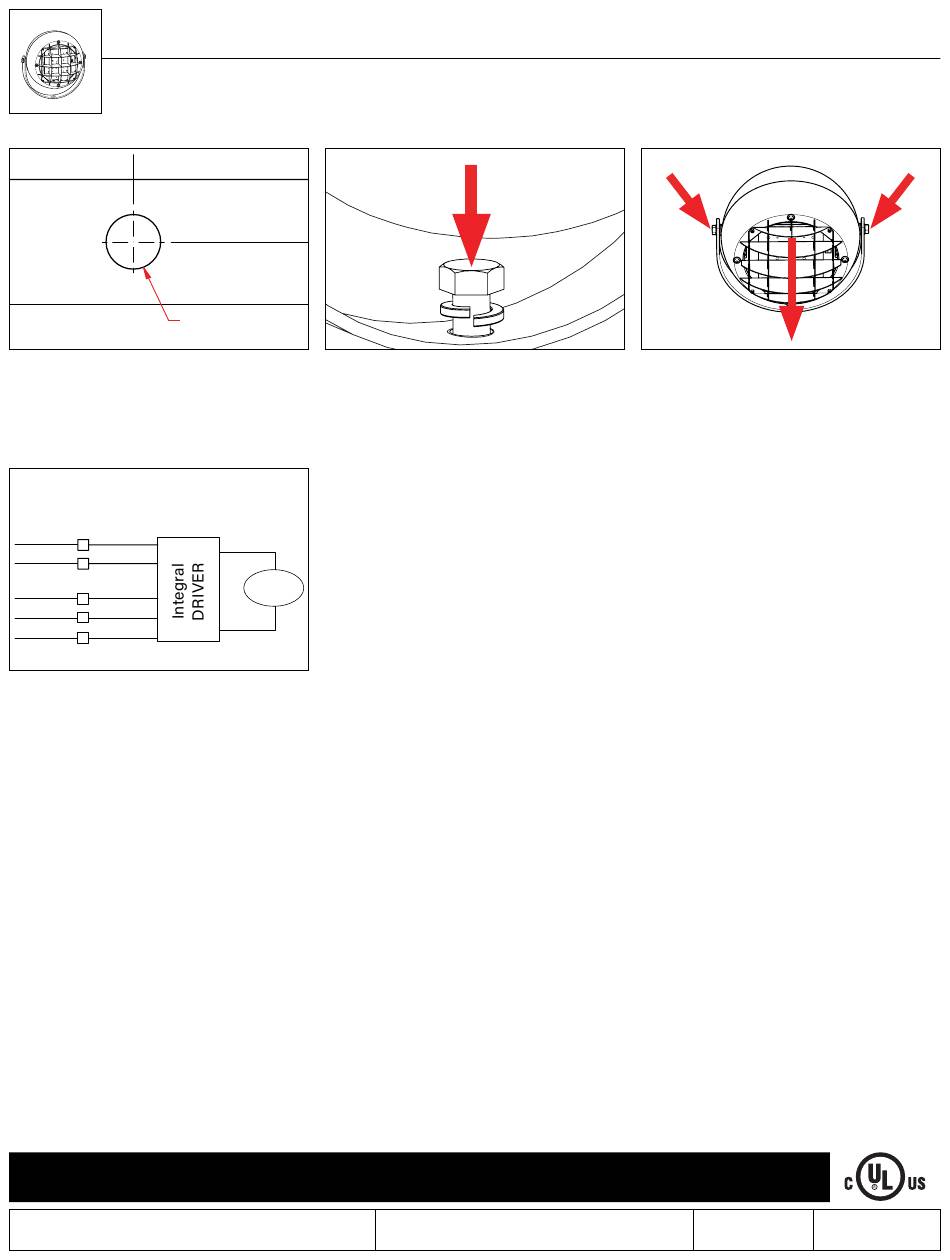

Wiring Diagram; Standard Installation - B-K lighting ORION Manual

Standard Installation

7/8" Dia.
1. Prepare for installation for yoke location. Clearance
hole is 7/8" diameter.
120V Through 277V (MT)
0-10V + 0-10V +
0-10V - 0-10V -
HOT HOT
GROUND GROUND
NEUTRAL NEUTRAL

WIRING DIAGRAM

4. Fixture internal wiring (primary and secondary)
are factory pre-wired. Fixture is provided with 2ft.
leads for installer to make appropriate connections.
Make watertight connections using waterproof
wire connectors to connect primary wiring per
NEC. Be sure to leave enough cord length for
aiming the fixture.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
2. Line up fixture yoke to mounting location and
secure with 3/4"-10 bolt (not included) and locking
washer. Using torque wrench, tighten to 30 ft-lbs
(mounting hardware not included).
+
LED
-
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
3. Adjust aim by slightly loosening two (2) 1/2-13"
bolts using an 3/4" socket. Aim fixture to desired
position and re-tighten bolts to secure in place.
Using torque wrench, tighten each bolt to 25
ft-lbs.
RELEASE DATE
06/27/2023
ORION
YOKE MOUNT
REFERENCE NUMBER
INS-2506-00
