Summary of Contents for MIRKA MR-38SGV

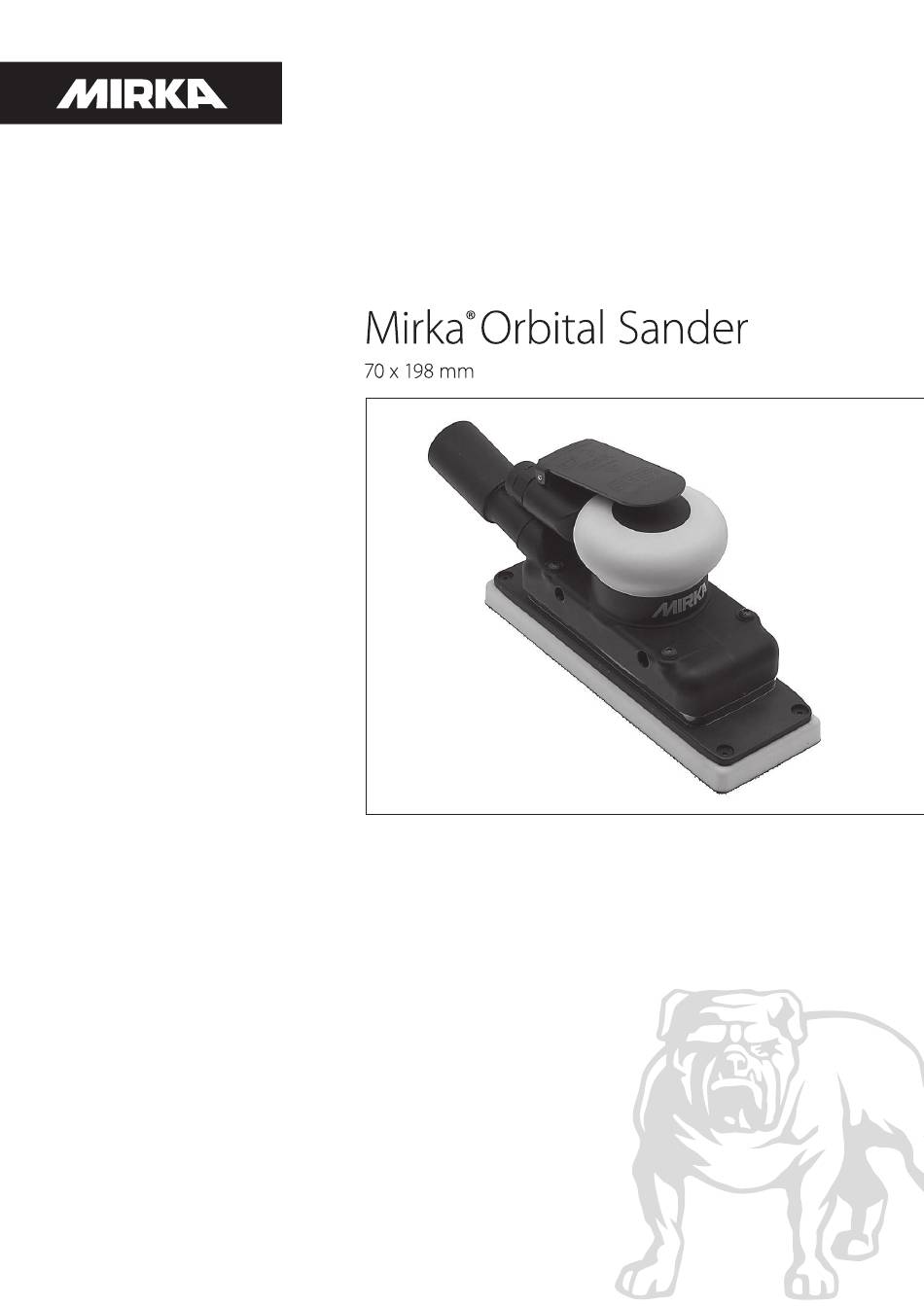

- Page 1 (3 x 8 in.)
- Page 2 Parts Page REVISED 05/26/09 INLET TO VACUUM SYSTEM FOR CENTRAL VAC INLET TORQUE SETTING ITEM Nm (in.-lbs.) 6.2 - 7.3 (55 - 65) 2.2 - 2.8 (20 - 25) 2.2 - 2.8 (20 - 25) 2.8 - 3.4 (25 - 30) 2.8 -3.4 (25 - 30) 10.7 -11.8 (95 - 110) 1.8 - 2.3 (16 - 20)
-
Page 3: Parts List
MPA0778 1 in./28 mm HOSE SEAL MPA0854 3/4 in./19 mm HOSE SEAL MPA0931 MIRKA 1 in./28 mm HOSE SEAL TAG W/INSTRUCTION MPA0092 1 in./28 mm OS SuperVAC CV SWIVEL EXHAUST ASSEMBLY MPA0298 OS SuperVAC 3/4 in. CV SWIVEL EXHAUST ASSEMBLY... - Page 4 Sander Spare Parts Kits Scaled 50% Scaled 50% MPA0805 MPA0802 MPA0798 MPA0932 10,000 OPM Muffler Kit Spindle Bearing Kit Air Inlet Kit DB Swivel Fitting Kit Code: 8993017211 Code: 8993019711 Code: 8993018811 Code: 8993011311 MPA0994 MPA0993 MPA3207 MPA0799 Cylinder & O-ring Kit Lock Ring &...
-
Page 5: Putting The Tool Into Service
Putting the Tool into Service Use a clean lubricated air supply that will give a measured air pressure at the tool of 6.2 bar (90 psig) bar when the tool is run- ning with the lever fully depressed. It is recommended to use an approved 10 mm (3/8 in.) x 8 m (25 ft) maximum length airline. - Page 6 KWH Mirka, Ltd. cannot be held responsible for the consequences of using declared values instead of actual exposure values for...
-
Page 7: Troubleshooting Guide
Lock Ring groove. Remove Motor Assembly and re-install the Motor Assembly. See ”Motor Disas- sembly“ and ”Motor Assembly“. Motor parts worn. Overhaul Motor. Contact authorized Mirka Service Center. Worn or broken Spindle Bearings. Replace the worn or broken Bearings. See ”Shaft Balancer and Spindle Disassembly“...
