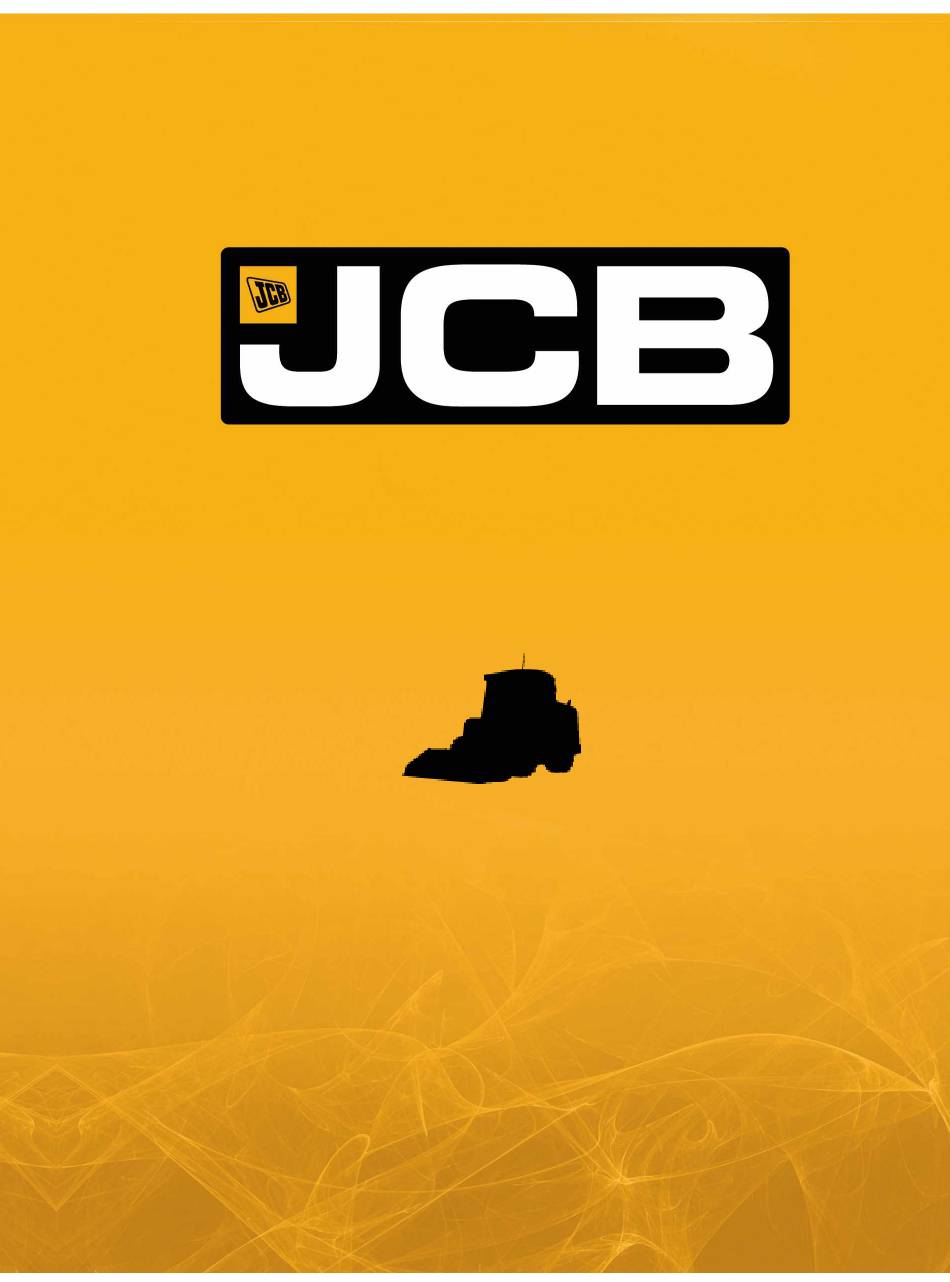

- Page 1 OPERATOR'S MANUAL 225, 225T, 260, 260T, 280, 300, 300T, 320T, 330 EN - 9821/3950 ISSUE 4 - 10/2014 THIS MANUAL SHOULD ALWAYS STAY WITH THE MACHINE...
- Page 2 Operator's Manual. You must understand and follow the instructions in the Operator's Manual. If you do not understand anything, ask your employer or JCB dealer to explain it. OPERATOR'S Do not operate the machine without an Operator's...
- Page 3 Notes: 9821/3950-4 Find manuals at https://best-manuals.com...
-
Page 4: Table Of Contents
Table of Contents Contents Page No. Acronyms Glossary ............................Introduction About this Manual Model and Serial Number ........................1 Using the Manual ..........................1 Left-Hand Side, Right-Hand Side ......................1 Cross References ..........................2 Location of Manual ..........................2 Safety Safety - Yours and Others ........................ - Page 5 Table of Contents Emergency Exit ........................... 29 Doors Operator Door ............................. 32 Windows Front Window ............................34 Side Window ............................35 Before Starting the Engine General ..............................36 Operator Seat General ..............................37 Basic Seat ............................37 Suspension Seat ..........................37 Seat Belt General ..............................
- Page 6 Table of Contents Working on Slopes ..........................96 Heating, Ventilating and Air-Conditioning (HVAC) General ..............................97 Air-Conditioning Controls ........................97 Power Sockets Auxiliary Power Socket ........................98 Radio General ..............................99 Battery Isolator General .............................. 103 Fire Extinguisher General .............................. 104 Moving a Disabled Product General ..............................
- Page 7 Put into Storage ..........................162 During Storage ..........................162 Take out of Storage .......................... 163 Security General .............................. 164 JCB Plantguard ..........................164 Construction Equipment Security and Registration Scheme (CESAR) ..........164 LiveLink ............................. 164 Maintenance Introduction General .............................. 165 Owner/Operator Support ........................
- Page 8 Tyres General ............................. 220 Tracks Rubber .............................. 222 Drive Gearbox Oil ..............................224 Hydraulic System General ............................. 225 Services ............................226 Oil ..............................226 Cylinder Rams ..........................227 Electrical System General ............................. 228 Battery ............................... 228 Battery Isolator ..........................229 Fuses ..............................
- Page 9 Table of Contents Technical Data Static Dimensions General .............................. 235 Dimensions ............................235 Weights ............................. 242 Performance Dimensions General .............................. 244 Driving Performance ......................... 247 Noise Emissions General .............................. 248 Noise Data ............................248 Vibration Emissions General .............................. 249 Vibration Data ........................... 250 Fluids, Lubricants and Capacities General ..............................
-
Page 10: Acronyms Glossary
Table of Contents Acronyms Glossary CESAR Construction Equipment Security and Registration Diesel Exhaust Fluid Electronic Control Unit FOPS Falling-Object Protective Structure HVAC Heating Ventilation Air Conditioning International Organization for Standardization Liquid Crystal Display Light Emitting Diode Product Identification Number Root Mean Square ROPS Roll-Over Protective Structure Society of Automotive Engineers... - Page 11 Notes: viii 9821/3950-4 viii...
-
Page 12: Introduction
If there is anything you are not sure about, ask your JCB dealer or employer. Do not guess, you or others could be killed or seriously injured. -
Page 13: Cross References
Introduction About this Manual Cross References In this manual, cross references are made by presenting the subject title in blue (electronic copy only). The number of the page upon which the subject begins is indicated within the brackets. For example: Refer to: Introduction >... -
Page 14: Safety
If you do not fully understand the warning messages, ask your employer or JCB dealer to explain them. Safety is not just a matter of responding to the warnings. All the time you are working on or with the product you must be thinking of what hazards there might be and how to avoid them. -
Page 15: Clothing And Personal Protective Equipment (Ppe)
This machine is manufactured in compliance with legislative and other requirements. It must not be altered in any way which could affect or invalidate any of these requirements. For advice consult your JCB dealer. Clothing and Personal Protective Equipment (PPE) Do not wear loose clothing or jewellery that can get caught on controls or moving parts. -
Page 16: About The Product
Product Compliance Your JCB product was designed to comply with the laws and regulations applicable at the time of its manufacture for the market in which it was first sold. In many markets, laws and regulations exist that require the owner to maintain the product at a level of compliance relevant to the product when first produced. -
Page 17: Description
Log Moving/Object Handling Do not use the machine to move or handle logs unless sufficient log protection is installed. You could cause serious injury to yourself and damage to the machine. For more information, contact your JCB dealer. Danger Zone The danger zone is any zone within and/or around the machinery in which a person is subject to a risk to their health or safety. -
Page 18: Main Component Locations
About the Product Description Main Component Locations Figure 4. ROPS/FOPS cab Fuel tank Lift arm/boom Front working lights Quickhitch Rubber tracks Battery Hydraulic tank Hydraulic sight glass Engine compartment rear door Engine top cover 9821/3950-4... -
Page 19: Product And Component Identification
About the Product Product and Component Identification Product and Component Identification Machine Machine Identification Plate Your machine has an identification plate. The PIN (Product Identification Number), weight, engine power, year of manufacture and serial number of the machine are shown on the identification plate. The serial number is also permanently stamped into the chassis. -
Page 20: Engine
Digit Description 1 to 3 World manufacturer identification. For example, JCB = UK Build. GEO = USA Build 4 to 8 Machine type and model. For example, 260 = 260 W = Wheeled T = Tracked S = Standard Flow H = High Flow. -
Page 21: Operator Protective Structure
If the machine is used in any application where there is a risk of falling objects then a FOPS must be installed. For further information, contact your JCB dealer. The FOPS has a data plate attached. The data plate indicates what level of protection the structure provides. - Page 22 About the Product Product and Component Identification Figure 9. 9821/3950-4...
-
Page 23: Safety Labels
Keep all of the safety labels clean and readable. Replace a lost or damaged safety label. Make sure the replacement parts include the safety labels where necessary. Each safety label has a part number printed on it, use this number to order a new safety label from your JCB dealer. 9821/3950-4... -
Page 24: Safety Label Identification
About the Product Safety Labels Safety Label Identification Figure 10. Table 5. Safety Labels Item Part No. Description Qty. 334/P0307 (Combination label) Crush hazard. Wear seat belt. 332/L8248 Noise warning. Wear ear protection. 817/70014 Warning. Read the Operator’s Manual before you operate the machine. 9821/3950-4... - Page 25 About the Product Safety Labels Item Part No. Description Qty. 817/70104 Crushing of whole body. Insert the boom support device before you complete any service or maintenance work underneath the boom. 332/P7181 Crushing of whole body. Attach/use the support or prop to lockout for service, maintenance or any access.
-
Page 26: Operator Station
About the Product Operator Station Operator Station Component Locations Figure 11. Left armrest (contains 12V accessory socket), Refer to: Operation > Locks (Page 55). Right interlock bar,Refer to: Operation > Locks (Page 55). Left lever, Refer to: Operation > Drive Controls (Page 58). Right Lever, Refer to: Operation >... - Page 27 About the Product Operator Station Interior rear view mirror, Refer to: Operation > Mirrors > General (Page 44). 9821/3950-4...
-
Page 28: Console Switches
About the Product Console Switches Console Switches Window Wipers Three position rocker switch. The switch functions operate when the ignition switch is in the on position. The wiper will self-park when switched off. Position : 1 = Off Position : 2 = On Position : 3 = Washer on (if installed) 9821/3950-4... -
Page 29: Interior Switches
About the Product Interior Switches Interior Switches Ignition Switch Caution! If any of the audible/visual warnings operate while the engine is running, stop the engine as soon as it is safe to do so and rectify the fault. Refer to: Operation > Instruments (Page 68). Key Start (Standard) The ignition switch is operated by a ignition key. -
Page 30: Cab Interior Light
