Table of Contents

PNEUMATIC / PNEUMATIQUE
U.S. Patent No. 4,682,919
Brevet américain N°4,682,919
OPERATOR'S MANUAL
GUIDE DE L'UTILISATEUR
UPC 616A
UPC 636A
UPC 648A
REED MANUFACTURING COMPANY
1425 West Eighth St.
Erie, PA 16502 USA
Phone: 800-666-3691 or 814-452-3691
Fax: 800-456-1697 or 814-455-1697
www.reedmfgco.com
1
708-57512

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPC 616A and is the answer not in the manual?

Questions and answers

Related Manuals for REED UPC 616A

Summary of Contents for REED UPC 616A

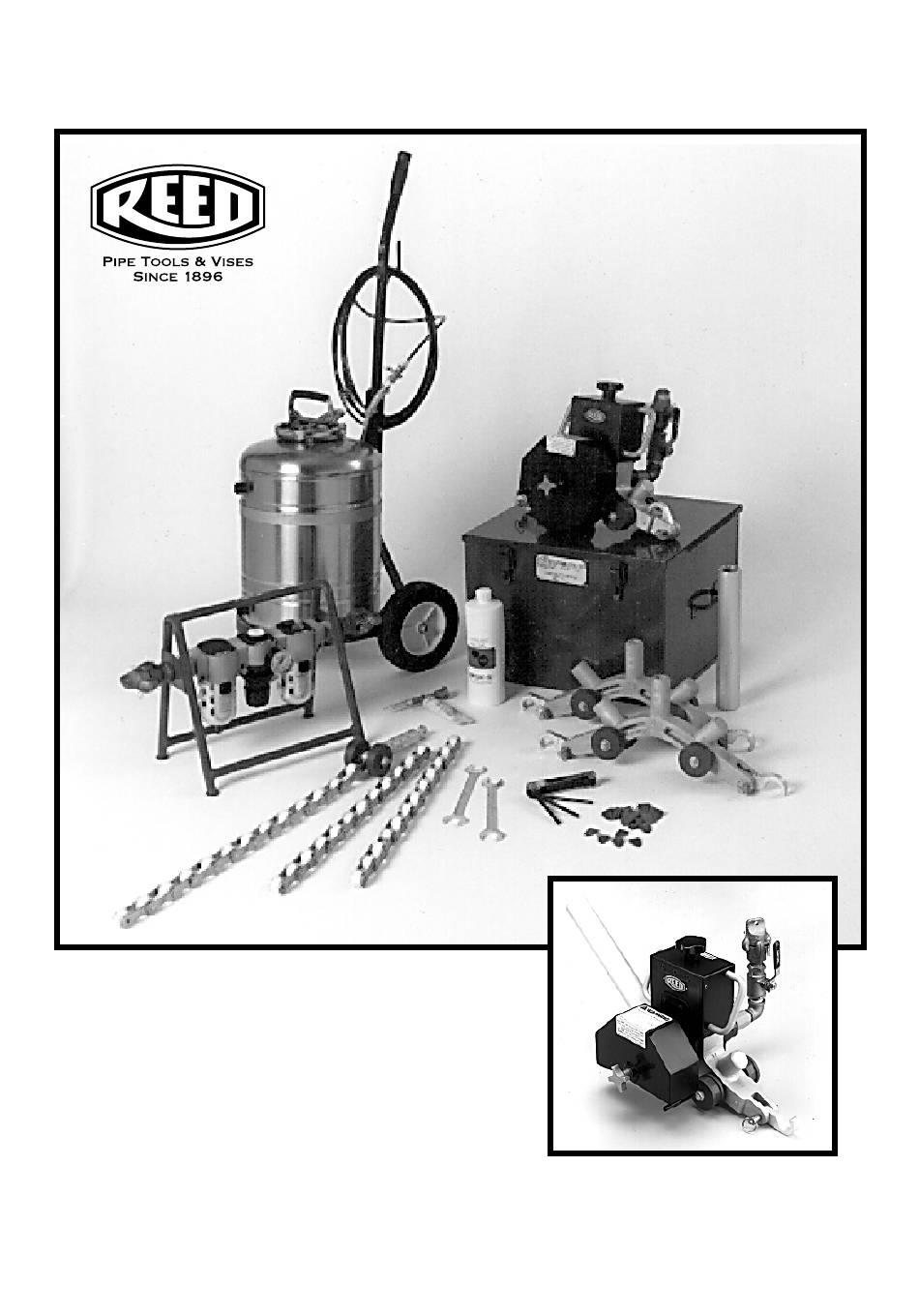

  • Page 1 PNEUMATIC / PNEUMATIQUE U.S. Patent No. 4,682,919 Brevet américain N°4,682,919 OPERATOR’S MANUAL GUIDE DE L’UTILISATEUR UPC 616A UPC 636A UPC 648A REED MANUFACTURING COMPANY 1425 West Eighth St. Erie, PA 16502 USA Phone: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697 www.reedmfgco.com...
  • Page 2 8. Check Speed Rating Of Blade I I . DESCRIPTION Must equal or exceed speed rating of air motor. A . Pipe Cutter Model: UPC 616A, 636A and 648A 9. Mount Blade According To Regulations B . Motor Specifications: Refer to manufacturer’s instructions regarding spindles, lock nuts, spacers, keys, flanges, etc.
  • Page 3 Cast Iron, Pit Cast, UPDIA4C 97528 UPDIA6C 97524 Motor Clamp Screws Ductile Iron, Clay, ® Concrete 9/16" UPCARB4 97510 UPCARB6 97514 FIG.1 Call Reed for blade recommendation. *For better performance, Reed recommends 6" blade for pipe diameter 8" and over.
  • Page 4 Rotate exhaust collar until ports are in downward C . Select Chain and Connecting Frames to match position. Position rear set screws (2) to lightly touch the outside Diameter of Pipe. exhaust collar. Tightening the rear set screws will damage the motor and warp the motor bracket. Remove blade guard, by loosening 2 screws at top of guard (Fig.1) NOMINAL...
  • Page 5 IV. OPERATION Motor Unit Release Pin A . Position the Cutting Blade Loosen blade guard locking knob until swing guard 11 Link 13 Link Chain rests on pipe. Chain Turn cutter feed knob clockwise. (Fig.2) Lower motor Chain Hook (Up) and cutter close to, but not touching the pipe.
  • Page 6 Note: In the event of experiencing motor problems (i.e. - leakage, loss of power, etc.) Do not disassemble the motor. This will void the motor warranty. Send motor back to Reed Manufacturing for service. B . Cover Air Port with Cover Coupling When Unit is not in Use C.
  • Page 7 U P C 6 1 6 A U P C 6 3 6 A U P C 6 4 8 A DESCRIPTION CAT NO Q T Y CAT NO Q T Y CAT NO MOTOR FRAME ASSEMBLY* 97067 97067 97067 ROLLERS, MOTOR FRAME, SET 97541 97541...
  • Page 8 Reed factory. All warranty claims are limited to repair or replacement, at the option of the company, at no charge to the customer. REED IS NOT LIABLE FOR ANY DAMAGE OF ANY SORT, INCLUDING INCIDENTAL AND CON- SEQUENTIAL DAMAGES.
