REED H2 1/2S Operating Instructions Manual

Hinged cutter for cutting steel, ductile iron and cast iron pipe
Hide thumbs Also See for H2 1/2S:
1
2
3
4
5
6

Advertisement

Available languages

Available languages

Table of Contents

Pipe Tools & Vises
Since 1896
Herramientas Para Tubos y Prensas
Desde 1896
Rohrwerkzeuge & SchraubstÖcke
Seit 1896
Outillage Pour Tubes Et Étaux
Depuis 1896
Operating
Instructions
Hinged Cutter
For cutting steel, ductile iron and cast iron pipe
Cortatubo Abisagrado
Para cortar tubos de acero, hierro dúctil y hierro fundido
Bedienungsanleitung Gelenkschneider
Zum Schneiden von Stahl, Sphäroguss und Gusseisenrohre
Lame à charnières
Pour découper l'acier et les tuyaux en fonte et fonte ductile
Reed Manufacturing Company
1425 West 8th St. Erie, PA 16502 usa
Phone: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697
www.reedmfgco.com
1
1002 - #50071

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H2 1/2S and is the answer not in the manual?

Questions and answers

Игорь
June 24, 2025

область применения

0

Related Manuals for REED H2 1/2S

Summary of Contents for REED H2 1/2S

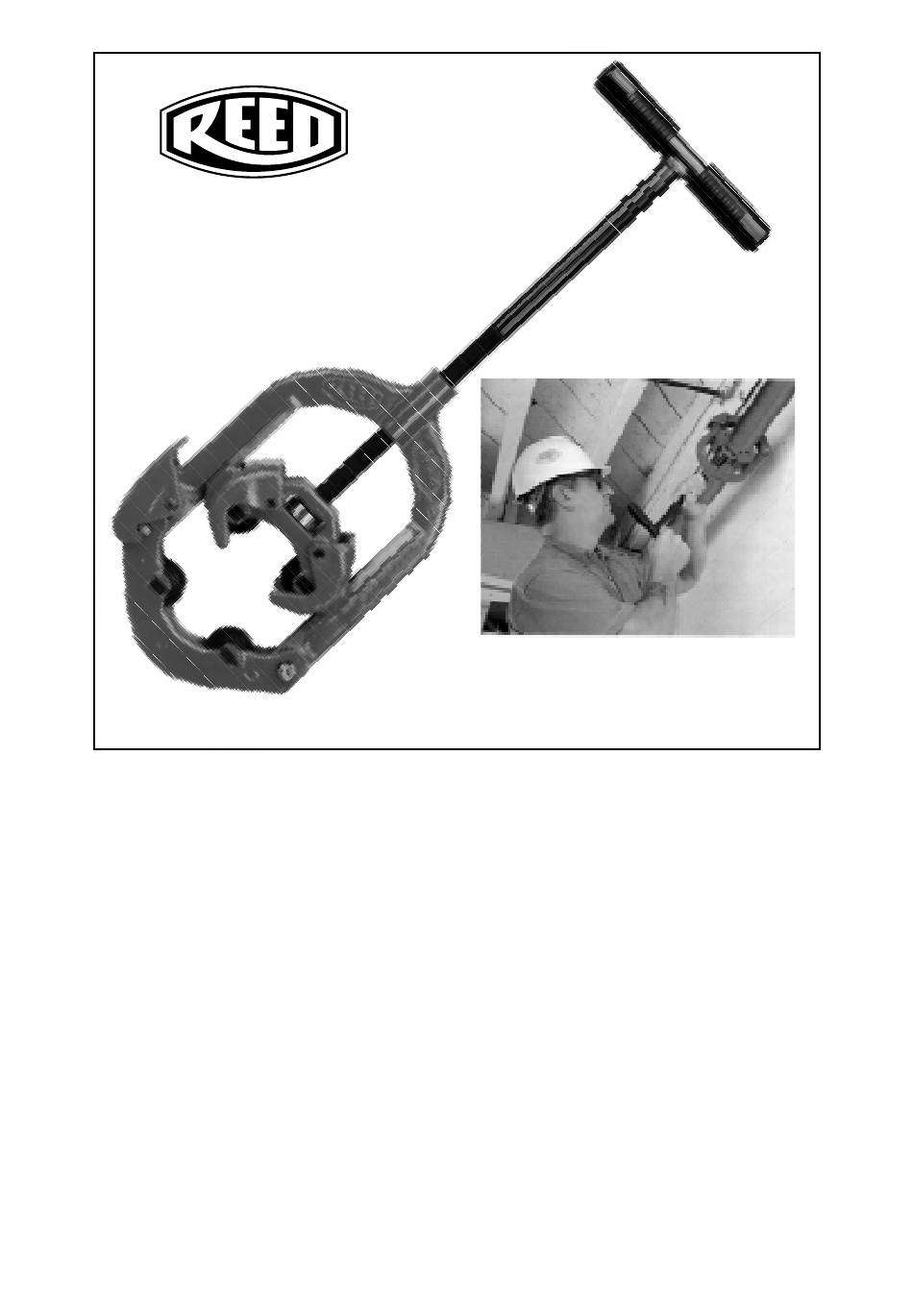

  • Page 1 Zum Schneiden von Stahl, Sphäroguss und Gusseisenrohre Lame à charnières Pour découper l’acier et les tuyaux en fonte et fonte ductile Reed Manufacturing Company 1425 West 8th St. Erie, PA 16502 usa Phone: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697 www.reedmfgco.com...
  • Page 2 HINGED CUTTER CHART Catalog Item Pipe Capacity Length Weight Actual Inches Code Nom. Ø mm H2 1/2S* 03110 1 - 2 1/2 32 - 76 H2 1/2I* 03112 1 - 2 1/2 32 - 76 H2 1/2X* 03114 1 - 2 1/2...

  • Page 3: Operating Instructions

    USE LUBRICATING OIL: It will take less effort and prolong the life of the cutter wheels and pins. DO NOT use cutting oil. BADLY CRUSTED AND RUST SCALED PIPE: Use a Reed Descaler (Table 3) to remove the rust and scale from the area to be cut. A hammer and chisel or coarse file may also be used.
  • Page 4 No de Código Capacidad Largo Peso Pulg. Catálogo del Art. Pulg. Ø mm Nom. H2 1/2S* 03110 1 - 2 1/2 32 - 76 H2 1/2I* 03112 1 - 2 1/2 32 - 76 H2 1/2X* 03114 1 - 2 1/2...
  • Page 5 Hinged Cutters Replacement Parts Crosshead Assembly...

  • Page 6: Parts List

    Parts List Ref. H2-1/2 Description Item Code Item Code Item Code Item Code Item Code Qty Upper Yoke 93150 93151 93152 93153 93154 Lower Yoke 93120 93121 93122 93123 93124 Crosshead 93135 93136 93137 93138 93139 Handle & Screw 93125 93126 93127 93128...
