Air King RANGE HOODS PROFESSIONAL Specifications

Professional Series 10" Height
• Hood Dimensions
Overall bottom projection - 24"
Available height
(less Soffit)
Available widths: 30" and 36"
• Hood
Stainless steel. Wall mounted. Install at least 24" above the
cooking surface.
• Lighting
2 - PAR16 Medium screw base, 45 watt maximum
Halogen lamps
(not included)
• Heat Lamps
(model P1036W)
2 - 175 watt maximum Type PAR38 heat lamps

• Ducting Options

Vertical or Horizontal ducting through ducting transition
specified for size of motor.
• Filters
Grease Baffles: Dishwasher safe, Stainless Steel baffles
Model Description
P1030 Range Hood
P1036 Range Hood
P1036W Range Hood w/Heat Lamps
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
CFM
NUMBER NUMBER
C US
Specifications subject to change without notice.

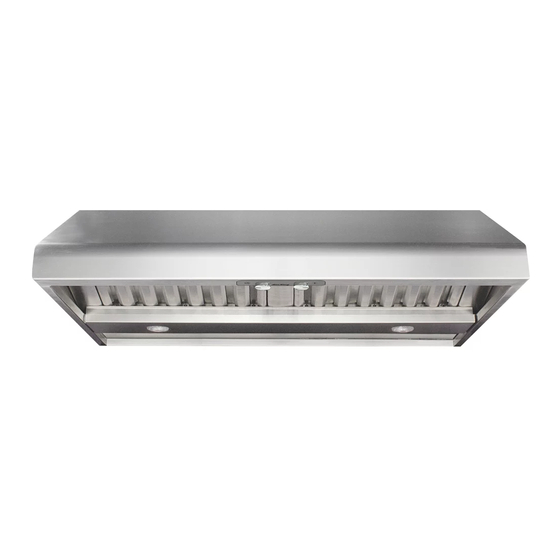

Wall Mounted Range Hood
-10"
.
(not included)
Width Height
30" 10"
36" 10"
36" 10"
IN
RPM WATTS AMPS
W.C.
PROFESSIONAL
P10 SERIES
.
(not included)
.
(included)
30"
Full Load Breaker Full Load
Motor Size Amps Size
300 CFM 1.7 amps 15 amp
500 CFM 1.9 amps 15 amp
600 CFM 2.1 amps 15 amp
900 CFM 6.5 amps 15 amp
1200 CFM 8.0 amps 15 amp
Breaker Size is listed at the recommended minimum size. Installation must be in accordance with all applicable
codes and standards.
ARCHITECT
ENGINEER
SUBMITTED BY
SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
RANGE HOODS
10 "
24 "
30 ", 36"
POWER USAGE
36" 36" w/Heat Lamps
Breaker Full Load
Amps Size Amps
1.7 amps 15 amp 5.9 amps
1.9 amps 15 amp 6.1 amps
2.1 amps 15 amp 6.3 amps
6.5 amps 15 amp 10.7 amps
8.0 amps 15 amp 12.2 amps
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
Breaker
Size
15 amp
15 amp
15 amp
15 amp
20 amp
New 3-08
