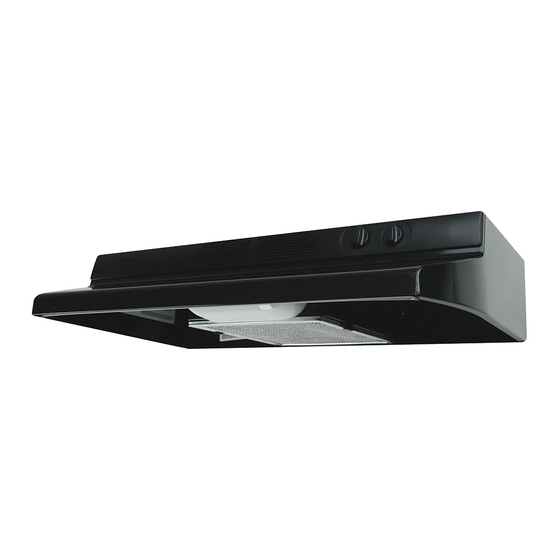

Air King Range Hood QZ Series Specifications

250 CFM/5.5 Sones @ 0.10" WG. Horizontal, 260 CFM/
6.0 Sones @ 0.10" WG. Vertical, 120 Volts, 2.0 amps, 60hz
• Dimensions
Overall bottom projection - 18
Overall top projection -12"
Height - 6". Available widths: 30" & 36"
• Hood Body
23 gauge cold rolled steel, auto welded, coated with a baked
enamel finish.
• Motor
Fully enclosed PSC 4 pole motor. Variable speed, thermally
protected, permanently lubricated. Rated 115/120 Volts, 60 hz,
2.0 amps.
• Lighting
Enclosed in a polycarbonate lens, 60 watt max. type A15
Appliance lamp
(bulb not included)

• Ducting Options

Horizontal ducting: 3 1 / 4
Vertical ducting: 3 1 / 4 "x10"
Vertical ducting: 7" round
Ductless: removable front vent
• Blade
Polymeric axial fan blade 9
Air Flow - CFM
Vert Ducting High 294
Horz Ducting High
292
Vert Ducting Min 206
Horz Ducting Min
209
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
CFM
NUMBER NUMBER
C US
Specifications subject to change without notice.
3 / 8 "
, complete with night light setting.
"x10"
(duct adapter and damper included).
(duct adapter and damper included).
(duct adapter and damper not included).
(charcoal filter not included)
1 / 8 " diameter with 7 paddles.
Static Pressure (inches of w.g.)
0 0.05 0.1 0.15
279 260 250
274 250 238
184 149 127
179 138 115
IN
RPM WATTS
W.G.
QZ SERIES
7 / 8 "
6"
5 11 / 16 "
7 / 8
29

• Electrical connection

Hood top - 7 / 8
Hood back -
• Filters
UL rated, class 2 filter.
Grease Filter: GF-06, dishwasher safe
. Charcoal Filter: CF-06
• Available Finishes
White, Biscuit, Almond, Black & Stainless Steel.
PERFORMANCE
0.2 0.25 0.3
238 213 184
225 195 165
103 48 -
92 47 -
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
RANGE HOODS
2 1 / 4 " x 10" knock-out for
1 / 4
3 " x 10" rectangular
duct connection
12"
7 / 8
", 35 "
" electrical knockout.
7 / 8 " electrical knockout.
(included)
.
(not included)
Sones Fan Speed
@ .1 SP RPM
0.35
151 6.0 2255
135 5.5 2141
- 1.5 1579
- 1.5 1499
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
7" round
knock-out
6 3 / 8 "
.
Power
Watts
94
93
32
32
Updated 3-08
