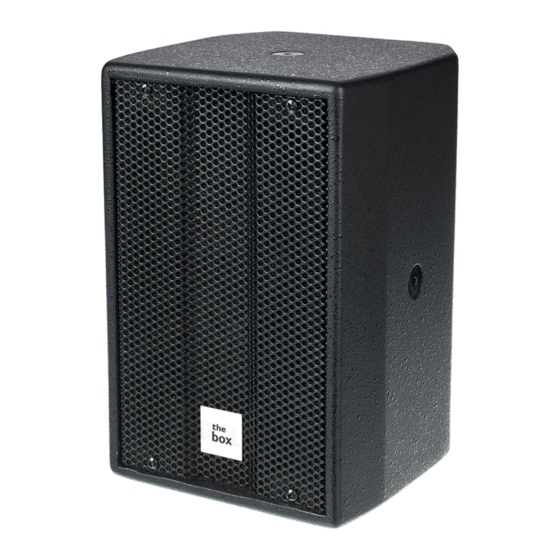

- Page 1 Achat 104 Passive Speaker...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 19.06.2023, ID: 247635 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 5 Safety instructions............................. 7 Features................................9 Installation..............................10 4.1 Tips on handling speakers......................12 4.2 Connections............................13 Technical specifications........................15 Protecting the environment......................17 Achat 104 Passive Speaker... - Page 4 Achat 104 Passive Speaker...
-
Page 5: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device, include the manual for the next owner. - Page 6 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 8 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Achat 104 Passive Speaker...
-
Page 9: Features
Features Features Connection options: 2 lockable NL2 jacks (1+/1–) and screw terminals Optional wall mount available Black textured paint Achat 104 Passive Speaker... -
Page 10: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Installation NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
-
Page 12: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 13: Connections
Installation 4.2 Connections ö 1 FULL RANGE INPUT | Input, designed as a lockable NL2 connection (1+/1–). 2 FULL RANGE THRU | Output for an additional speaker, designed as a lockable NL2 connection (1+/1–). FULL RANGE FULL RANGE INPUT THRU 3 Screw terminal input –... - Page 14 Installation NL2 chassis connectors for The adjoining figure shows the pin assignment of the lockable NL2 chassis connectors. speaker connections Achat 104 Passive Speaker...
-
Page 15: Technical Specifications
Technical specifications Technical specifications Configuration 1 × 4" woofer, 1 × 1" textile dome tweeter Input connections Screw terminals Frequency range 100 Hz…20 kHz, –3 dB 90 Hz…20 kHz, –10 dB Load capacity 40 W (RMS), 160 W (peak) Sensitivity (1 W/1 m) 87 dB Rated impedance 8 Ω... - Page 16 Technical specifications Frequency response Achat 104 Passive Speaker...
-
Page 17: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 18 Notes Achat 104 Passive Speaker...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
