Summary of Contents for thomann the box PA302 A
- Page 1 PA302 A active 2-way- full-range-speaker user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 14.11.2016, ID: 160813 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 14 Installation..............................15 4.1 Tips on handling speakers......................17 Connections and operating elements................... 18 Technical specifications........................ -
Page 4: General Information
General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 8 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. active 2-way-full-range-speaker...
-
Page 9: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. This device is designed for professional and not household use. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 10 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 11 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
- Page 12 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
- Page 13 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 14: Features

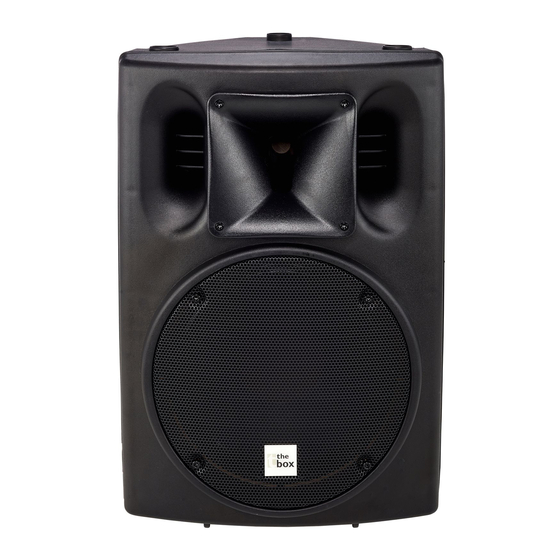

Features Features Special features of this active 2-way full-range speaker box: 1 × 12" woofer 1 × 44 mm titanium driver (50° … 100° × 55°) Output power 300 W (bass) + 100 W (tweeter) 2-band tone stack XLR in and output Switchable low cut @ 120 Hz Tripod mounting flange Monitor feet supplied for use as floor monitor... -
Page 15: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 16 Installation NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
-
Page 17: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 18: Connections And Operating Elements
Connections and operating elements Connections and operating elements active 2-way-full-range-speaker... - Page 19 Connections and operating elements 1 [VOLUME] Volume control. Turn the knob clockwise to increase the volume or counterclockwise to decrease the volume. 2 [BASS] Bass control. Turn the knob clockwise for a more bassy sound. Turn the knob counterclockwise to decrease the bass. 3 [TREBLE] Treble control.
- Page 20 Connections and operating elements 8 [115V/60Hz — 230V/50Hz] Selector switch for the power supply. Make sure that, before activating the device, the switch position is set to the local supply voltage. 9 [LINE/MIC] Button to select the input sensitivity of the speaker (line or microphone level). Push the push-button with a suitable sharp tool, e.g.
-
Page 21: Technical Specifications
Technical specifications Technical specifications System active 2 way-full-range-loudspeaker with built-in crossover Configuration 1 × 12" woofer Connections XLR input: XLR output: Power consumption 150 W Output power Bass: 300 W (RMS) Treble: 100 W (RMS) Frequency range 50 Hz … 18 kHz (–3 dB) 40 Hz …... - Page 22 Technical specifications Distortion Line: 0.02 % Microphone 0.04 % Load impedance Bass: 8, Ω Treble: 8, Ω Input impedance balanced: 20 kΩ unbalanced: 10 kΩ Operating supply voltage AC 115230 V 50/60 Hz Fuse 115 V 5 mm × 20 mm, 5 A, 250 V, slow blow 230 V 5 mm ×...
-
Page 23: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 24 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) XLR plug (unbalanced) Ground, shielding...
-
Page 25: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 26 Notes active 2-way-full-range-speaker...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
