Toshiba e-STUDIO2822AF Quick Manual

Troubleshooting Troubleshooting
Toner empty Toner empty
2
3
1 2
Paper misfeed Paper misfeed
MISFEED E130
OPEN SIDE COVER
Side cover Side cover
2
1
Behind transfer unit Behind transfer unit
5
6
RADF RADF
3 2
1
8
7
Basic Operations
User's Guide: Chapter 7
4
5
User's Guide: Chapter 7
Bypass tray Bypass tray
1
2
4
3
7
4 5
6
9
10
Printed in China 6LL24646000
R180420U7301-TTEC OME180009A0 DP-2822AF Ver01 F Issued in Jan. 2023
© 2019, 2023 Toshiba Tec Corporation All rights reserved
Quick Guide
6
This manual describes the components, preparations, basic operations, and troubleshooting for the equipment. Before
using the equipment, read the Safety Information (Printouts). The DVD bundled with the equipment contains the
manuals (PDF file).
Trademarks
Company names and product names in this manual are the trademarks of their respective companies.

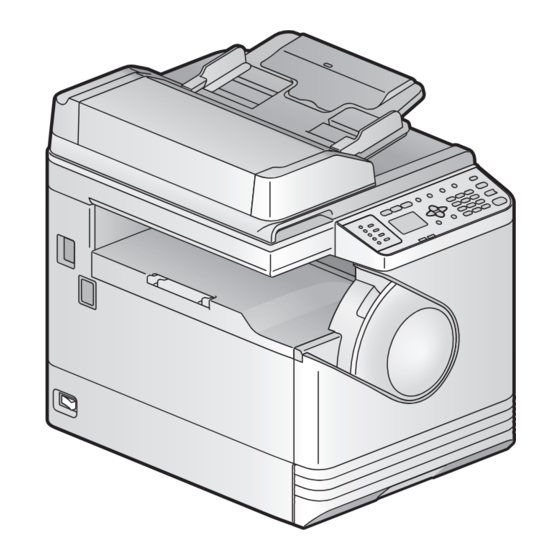

Component Description Component Description
Equipment Equipment
Reversing Automatic Document Feeder (RADF)
Platen sheet
Original scale
Scanning area
Receiving tray
USB terminal
(4-pin)
LAN Port
LINE
TEL
AC-IN terminal
(rear)
Paper exit stopper
Power switch Power switch
Turning on Turning on
Press the power switch to " " (on).
Turning off
Press the power
switch to "
MULTIFUNCTIONAL DIGITAL SYSTEMS
Toner cartridge
Front cover
Original glass
Control panel Control panel
[ADDRESS BOOK] [SCAN]
[RESOLUTION] [USER FUNCTIONS]
[COPY] [FAX]
Drawer
[One Touch]
[PAUSE] [CANCEL]
[MONITOR] Alert lamp
DATA
LCD screen (Copy)
Message
READY
Reproduction ratio 100%
" (off ).
Exposure AUTO EXPOSURE
TEXT/PHOTO
Original mode
User's Guide: Chapter 1
Side cover
USB port
Bypass tray
[JOB STATUS] [FUNCTION CLEAR]
[TEMPLATE]
[SETTINGS] [ENERGY SAVER]
[START]
[OK] Digital keys
[CLEAR/STOP]
Paper size
Copy quantity
1 A4
Scroll icon
Before Use
