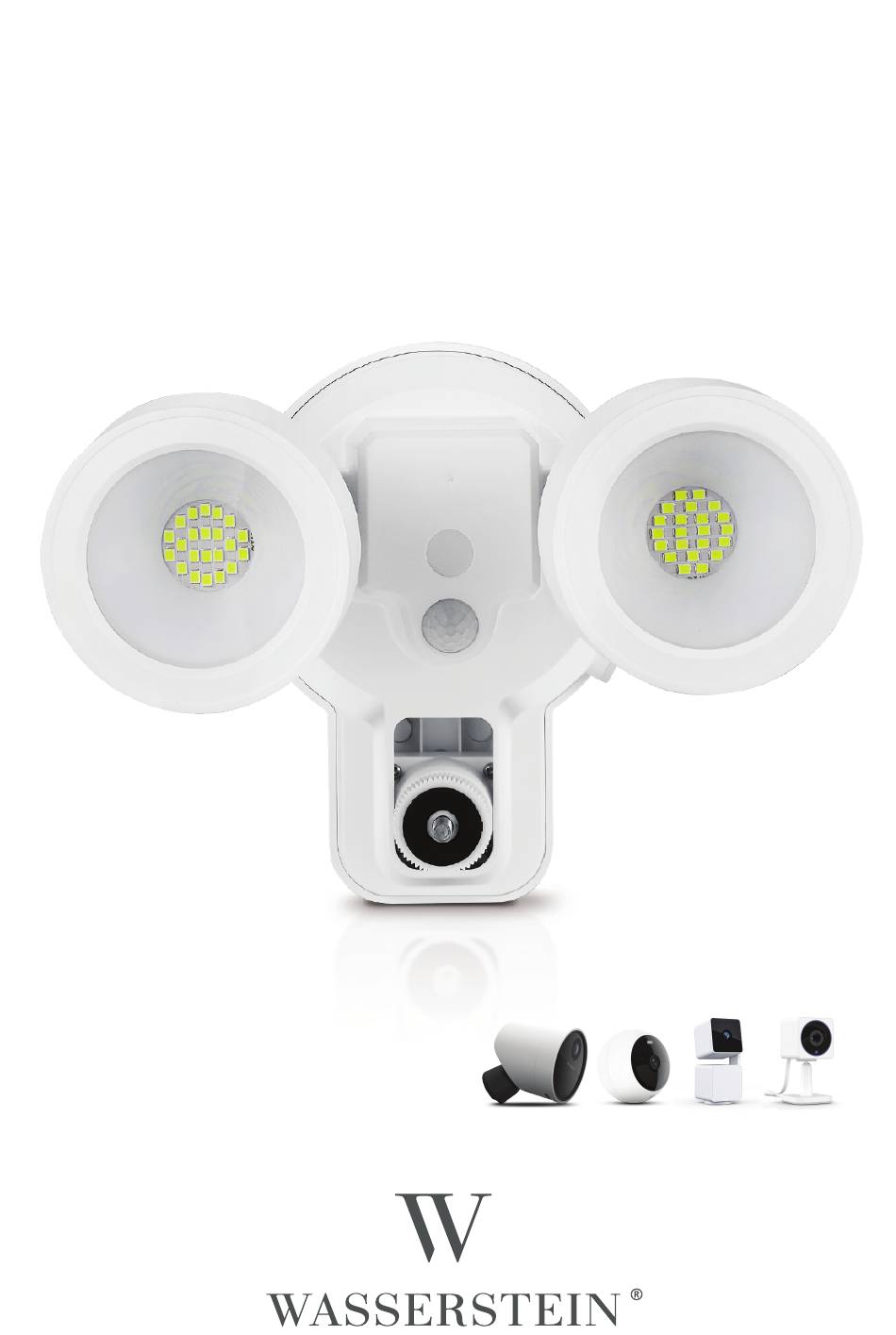

- Page 1 3-in-1 Floodlight, charger and mount USER MANUAL Compatible with SimpliSafe Outdoor Security Camera, Noorio Spotlight Cam B210, Wyze Cam Pan V3, and OG...
- Page 2 In the Box 1 x USB C or Micro USB cable 1 x floodlight 1 x crossbar 1 x plastic screw insert 1 x screw cap 2 x screws 3 x big head small screws and 1 x EVA gasket 1x metal plate 1 x small head small screw 3 x wire nuts...
-
Page 3: Safety Information
Safety Information • Do not disassemble the light head. • Turn off the main circuit before installation. • Do not remove the protective LED lens. • Avoid direct eye contact with the powered-on LED. • Do not leave exposed wires outside the enclosure. •... - Page 4 For existing floodlight 1. Disconnect and remove the old floodlight from the junction box, including wires. 2. If there is a crossbar attached to the junction box, please remove. Floodlight installation to junction box 1. Attach the provided crossbar to the junction box using two screws.
- Page 5 2a. Remove the protective tape from the EVA gasket and firmly attach it to the rear of the floodlight. 2b. Ensure the center screw hole and wire slot on the foam gasket are aligned with the corresponding holes on the floodlight. Wiring the floodlight to the Junction box through the EVA gasket 1.
- Page 6 5a. Ensure secure wire connections and carefully place the wires into the junction box. 5b. Mount the floodlight onto the crossbar and secure it using the provided screw cap. Important: Before mounting the floodlight, apply the EVA gasket along the cover plate's perimeter where it meets the mounting surface to prevent water from entering the junction box.
- Page 7 Mounting Your Wyze Cam OG 1. Attach the metal plate to the floodlight using the plastic screw insert for the floodlight mounting screw. 2. Secure the camera to the metal plate by placing a silicone ring at the bottom end and using the small head metal screw. 3.
- Page 8 4. Connect the other end of the micro-USB cable to the camera's micro-USB port. 5. Adjust the camera to your preferred viewing angle.
- Page 9 Mounting Your Wyze Cam Pan V3 1. Attach the metal plate to the floodlight using the plastic screw insert for the floodlight mounting screw. 2. Connect the L-shaped micro-USB cable to the camera's micro-USB port. Wyze Cam Pan 3. Secure the camera to the metal plate by placing a silicone ring at the top end and using the large head metal screw.
- Page 10 4. Open the floodlight's USB port cap, firmly connect the cable. 5. Adjust the camera to your preferred viewing angle. 6. In the Wyze App, navigate to "Settings" > "Advanced Settings", and enable "Rotate Image 180°" to ensure correct image orientation.
- Page 11 Mounting Your Simplisafe Wireless Outdoor Security Camera 1. Attach the metal plate to the floodlight using the plastic screw insert for the floodlight mounting screw. 2. Secure the camera to the metal plate by placing a silicone ring at the plate's top end and using the large head metal screw.
- Page 12 4. Connect the other end of the micro-USB cable to the camera's micro-USB port. 5. Adjust the camera to your preferred viewing angle. In the Simplisafe App, access "Camera Settings" and enable "Rotate Image 180°" for proper image viewing.
- Page 13 Mounting Your Noorio Spotlight Cam B210 1. Securely attach the camera to the floodlight mounting screw. 2. Open the floodlight's USB port cap, firmly connect the cable. Noorio Spotlight Cam B210...
- Page 14 3. Open the camera rubber cap, connect the opposite USB-C end to the camera USB-C port. 4. Adjust the camera to your preferred viewing angle.
-
Page 15: Specifications
1. Why is one or more floodlight(s) flashing on and off? • Check your connection to the house power source. • Inspect the area around the floodlight for possible triggers, such as small animals. 2. Why does one or more floodlight(s) not turn on? •... - Page 16 Get More Support Scan the QR code below or email us at contact@wasserstein-home.com. Cameras not included. Wyze Cam OG & Cam Pan V3 are a trademark of Wyze Labs, Inc. Simplisafe Outdoor Camera is a trademark of Simplisafe, Inc. Noorio Camera is a trademark of Noorio Innovations Limited Wasserstein is not affiliated with Wyze Labs, Inc.
