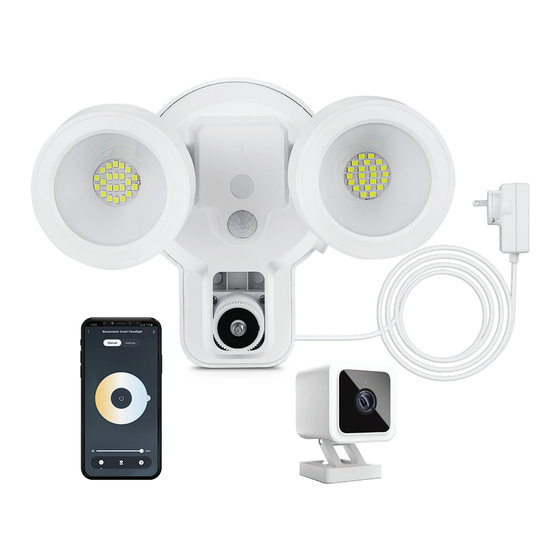

Wasserstein 3-in-1 Smart Plug-in Floodlight for Wyze Cam V3 User Manual

Hide thumbs Also See for 3-in-1 Smart Plug-in Floodlight for Wyze Cam V3:
Table of Contents

Advertisement

Quick Links

Download this manual
3-in-1 Smart Plug-in Floodlight
for Wyze Cam V3
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Wasserstein 3-in-1 Smart Plug-in Floodlight for Wyze Cam V3

Summary of Contents for Wasserstein 3-in-1 Smart Plug-in Floodlight for Wyze Cam V3

  • Page 1 3-in-1 Smart Plug-in Floodlight for Wyze Cam V3 USER MANUAL...

  • Page 2: Safety Information

    In the Box wall plate long screw power adapter floodlight 4 x wall anchors USB cable EVA gasket 8 x cable clips 4 x screws US, UK, EU plugs base attachment Safety Information • DO NOT disassemble the floodlight. It may damage the internal components and not work properly.
  • Page 3 2. Remove the protective tape from the EVA gasket and press the adhesive side firmly against the rear of the floodlight. 3. Mount the floodlight onto the wall plate and secure it with the long screw provided. 4a. Insert the appropriate plug into the power adapter. Turn clockwise until it clicks.
  • Page 4 4b. Connect the floodlight cable to the adapter cable, then screw on the plastic cover. 4c. Plug the power adapter into the wall socket. 5. Peel off the covers from the back of the cable clips and stick them onto the wall.

  • Page 5: Mounting Your Camera

    Mounting Your Camera 1. Connect the base attachment provided to the base of your Wyze Cam V3. 2. Slightly rotate your camera. Note: To mount the camera facing downwards, turn the camera upside down after connecting it to the attachment. Page 4...
  • Page 6 3. Attach the camera to the floodlight by screwing the attachment into the screw hole at the base of the floodlight. 4. Connect the micro USB cable to both the camera and the floodlight. Press both ends in firmly. 5. Adjust the camera to your preferred viewing angle. Note: If you mount the camera upside down, remember to rotate the image 180°...

  • Page 7: App Setup

    • Upload speed of at least 2 Mbps. 1. Download the App by scanning the QR code or by searching "Wasserstein App" in Google Play Store or the App Store. 2. Sign up for a new account or log in to an existing account.

  • Page 8: Add Manually

    Add Manually 1. Select "Lighting" - "PIR Light （BLE+Wi-Fi)". 2. Reset the floodlight by turning it on and off in the following sequence: on-off-on-off-on (steps also displayed in your App). Then, your floodlight will flash in intervals (Figure 1). Flash Flash Figure 1 If the light is flashing already,...
  • Page 9 3. Enter your Wi-Fi details, and click "Confirm". 4. Wait until your device has been added successfully. WiFi Login WiFi Password Wasserstein Smart Floodlight Page 8...
  • Page 10 Auto Scan 1. Reset the floodlight to enable pairing mode. Turn on and off in the following sequence: on-off-on-off-on. Your floodlight will then flash in intervals. 2. Wait until your floodlight has been automatically detected. Page 9...

  • Page 11: App Functions

    App Functions 1. Settings Sensor Note: Display and interface are subject to change. Manual Sensor On/off On/Off Light intensity Motion detection range Floodlight color Floodlight light sensitivity Turn on/off timer Duration of light flash Schedule Event records Page 10...
  • Page 12 2. How to Use Linked Devices On the ‘Sensor’ page click "Linked Devices"， then click "+" on the lower right corner to enter the ‘Create New Smart’ page. Here, you can add multiple trigger conditions and tasks for your floodlight to perform. Page 11...
  • Page 13 3. Third-Party Control (Google Assistant & Amazon Alexa) Follow the instructions in the App to link to your Google Assistant, or Amazon Alexa. Examples of voice commands are also available in the App. Page 12...
  • Page 14 1. The smart floodlight will not turn on. What's going on? • Check the connection to your home power source. • Set the floodlight to "Manual" mode and try turning it on manually. • Set the light sensitivity to "Day" and see if you can trigger it by moving.

  • Page 15: Specifications

    100 - 240 AC 50/60 Hz Frequency: 2.4 GHz Get More Support Scan the QR code below or email us at contact@wasserstein-home.com. Wyze Cam V3 not included. www.wasserstein-home.com Wyze Cam V3 is a trademark of Wyze Labs, Inc. Wasserstein is not affiliated with Wyze Labs, Inc.
