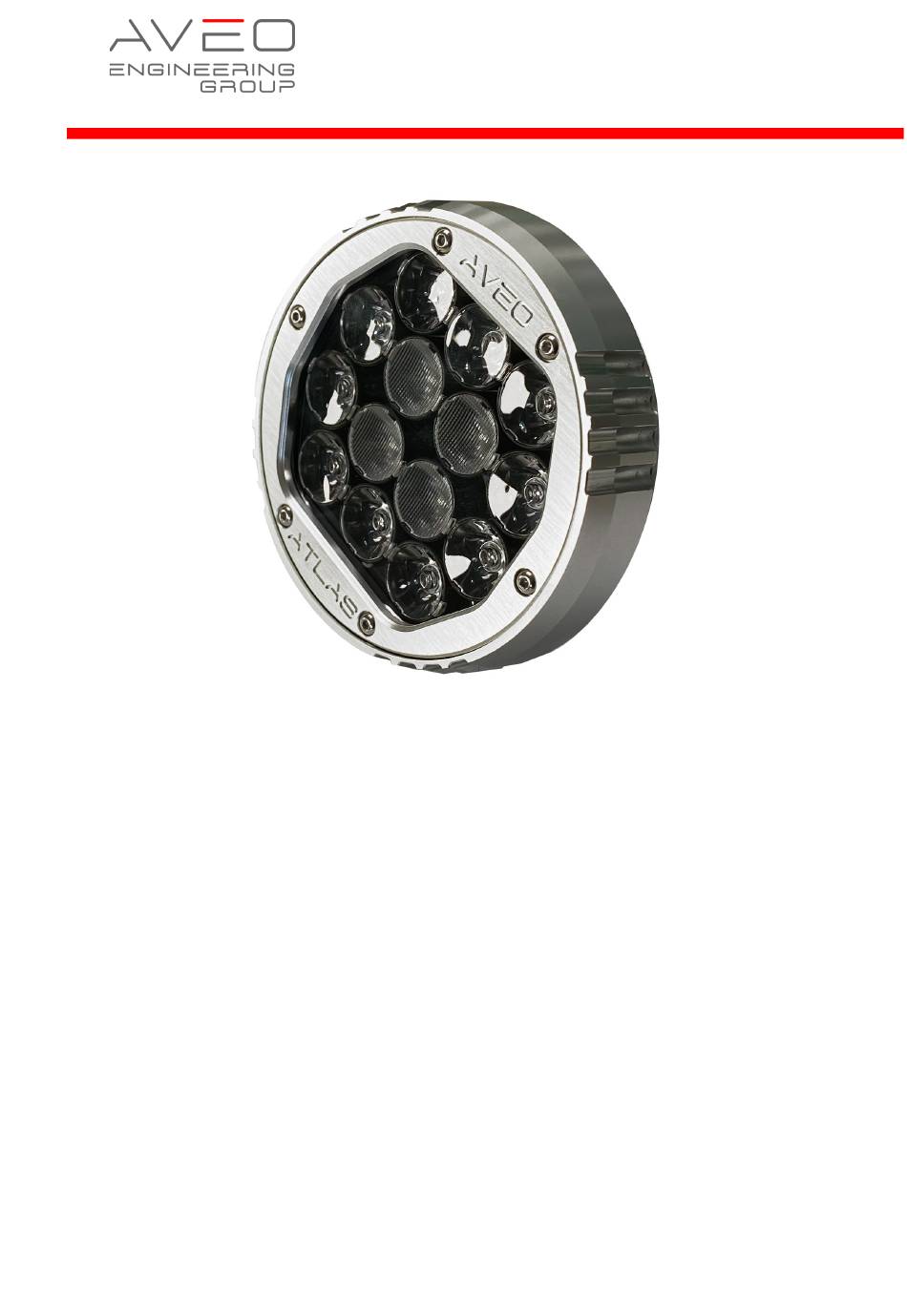

- Page 1 INSTALLATION MANUAL Atlas NXT AVE- AXT-IM Aveo Engineering Group, s.r.o. © All rights reserved. The information contained within this document must not be disclosed, copied or reproduced in whole or in part without prior written permission from Aveo Engineering Group, s.r.o...
-
Page 2: Table Of Contents
Installation Manual AVE-AXT-IM Issue 01 TABLE OF CONTENTS PART 0 DOCUMENT ADMINISTRATION ..........3 ................3 OCUMENT PPROVAL .............. 4 MENDMENT ECORD ROCEDURE ..............4 FFECTED AGES ROCEDURE PART 1 INSTALLATION DATA ..............5 ..................5 RODUCT ..............5 PERATING NSTRUCTIONS .......... -
Page 3: Part 0 Document Administration
This document has been established in accordance with an alternative procedure to DOA approved under EASA AP429. This installation manual is applicable for following part numbers: • Atlas NXT - AVE-AXTTLFW-D01 • Atlas NXT – O holder - AVE-AXTTLFW-D02 • Atlas NXT – Q holder - AVE-AXTTLFW-D03 Compiled by: 02 Nov 2023 Petr Jaroš... -
Page 4: Amendment Record Procedure
Amendment Record Procedure The master copy of this document shall be kept electronically as a read only document under the control of Aveo Engineering Group, s.r.o. as Master Copy. ALL amendments to this manual will initiate a raise of issue. -
Page 5: Part 1 Installation Data
Installation data Product Info Atlas NXT™ is a high powered Landing and Taxi LED light used in GA and transport category aircraft. It has been designed to be lightweight and with a low power draw to meet the highest requirements of all certified aircraft. -
Page 6: Installation Schematic / Wiring Diagram
Installation Manual AVE-AXT-IM Issue 01 Installation Schematic / Wiring Diagram Page 6 of 17... -
Page 7: Control & Power Inputs
Installation Manual AVE-AXT-IM Issue 01 Control & Power Inputs Landing (AWG20) YELLOW Taxi (AWG20) BLACK GND (AWG20) GREEN/YELLOW Chassis (AWG20) WHITE Master/Slave (AWG24) BLUE Synchro (AWG24) VIOLET Hi/Lo (AWG24) GREEN WigWag (AWG24) Length: 300 mm / 11.8” Technical Specification Light characteristics: Multimode Light (Landing, Taxi, WigWag, Hi/Lo) Voltage range: 9-36VDC... - Page 8 Installation Manual AVE-AXT-IM Issue 01 Viewing Angle: Landing Lens: 9° Taxi Lens: 12° x 30° Environment Section Category Temperature / Altitude Temperature Variation Humidity Operational Shock and Crash Safety Vibration U, curves G Explosive Atmosphere Waterproofness Fluids Susceptibility Sand and dust Fungus Salt Spray Magnetics Effects...
-
Page 9: Technical Drawing
Installation Manual AVE-AXT-IM Issue 01 Technical Drawing AVE-AXTTLFW-D01 AVE-AXTTLFW-D02 Page 9 of 17... - Page 10 Installation Manual AVE-AXT-IM Issue 01 AVE-AXTTLFW-D03 *dimensions in [inches] / mm Page 10 of 17...
-
Page 11: Wiring Chart
Installation Manual AVE-AXT-IM Issue 01 Wiring Chart Use diagram below defining the wiring size depending on the current and the wire length. Make sure you add up the current for all connected lights. If current is not given, then divide the power by the voltage. Page 11 of 17... -
Page 12: Optic Simulation
Installation Manual AVE-AXT-IM Issue 01 Optic Simulation Landing Hi 123 000 cd 8.3° (at 50% of max light intensity) 18° (at 10% of max light intensity) Landing Lo 60 800 cd 8.6° (at 50% of max light intensity) 18° (at 10% of max light intensity) Page 12 of 17... - Page 13 Installation Manual AVE-AXT-IM Issue 01 Taxi Hi 10 700 cd 12° x 30° (at 50% of max light intensity) 26° x 52° (at 10% of max light intensity) Taxi Lo 5 390 cd 12° x 30° (at 50% of max light intensity) 26°...
- Page 14 Installation Manual AVE-AXT-IM Issue 01 Both sections Hi 134 000 cd 8.5° x 9.2° (at 50% of max light intensity) 19° x 22° (at 10% of max light intensity) Both sections Lo 64 900 cd 8.7° x 9.7° (at 50% of max light intensity) 20°...
-
Page 15: Equipment Limitation
No light is released for sale without undergoing this extensive operational testing. When you receive the Atlas NXT light, and wish to test the function of the light prior to installation on your aircraft, please note the following: 1. -
Page 16: Continued Airworthiness Information
Periodic Inspection Procedure for Atlas NXT The Atlas NXT light should always be checked for proper operation during preflight. This procedural information is already provided in all general aviation aircraft flight manuals. -
Page 17: Eu Reach Regulation (Ec) No. 1907/2006
1.14 EU REACH Regulation (EC) No. 1907/2006 Aveo Engineering declares that no chemicals are produced and that none of the chemicals used during the production process or needed for the product maintenance or service, is listed on the current European Chemicals Agency’s Candidate list of Substances of Very High Concern for Authorization.
