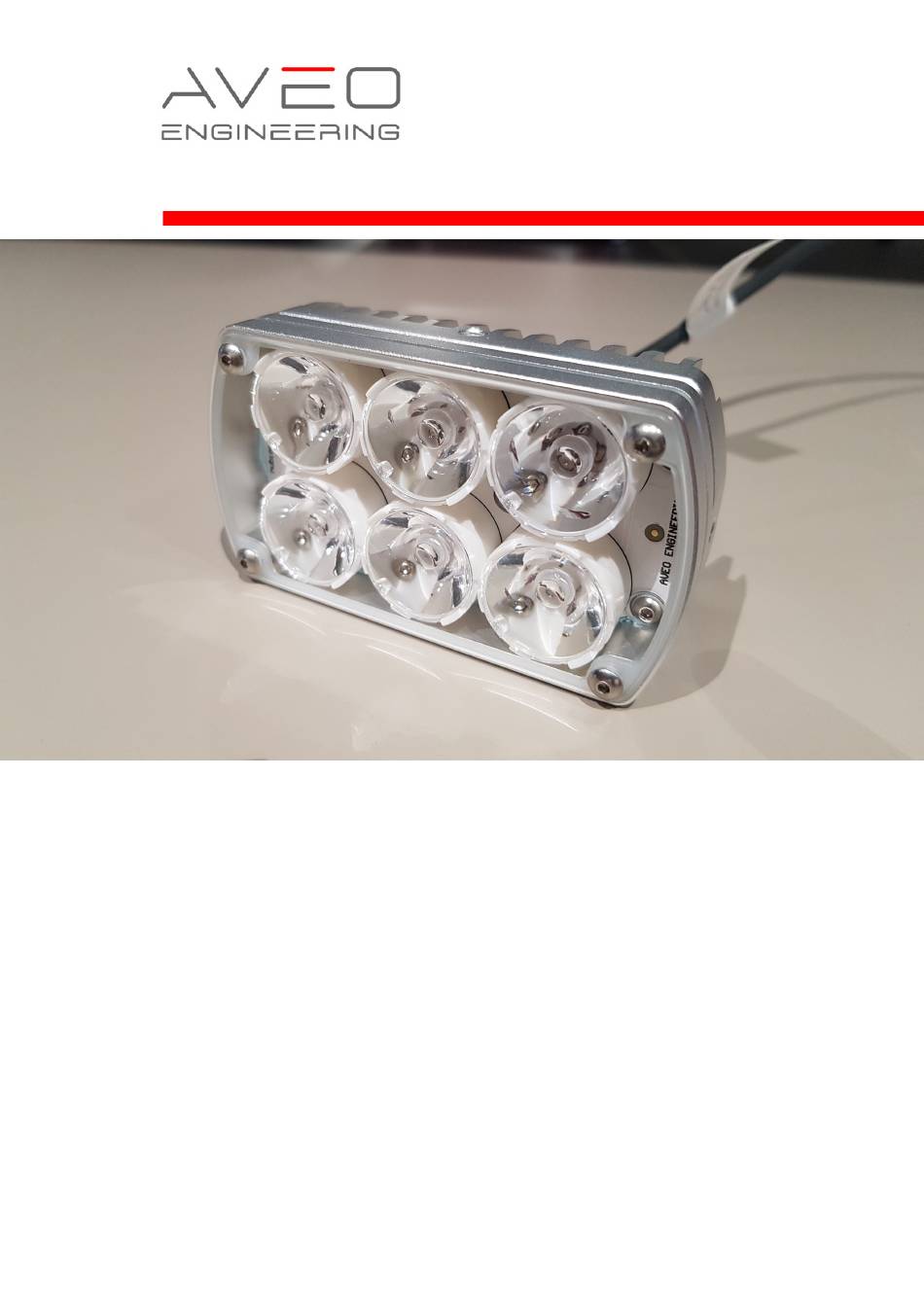

- Page 1 INSTALLATION MANUAL Nubion DOC.NO:AVE-N09PANSN-IM © Aveo Engineering Group, s.r.o. All rights reserved. The information contained within this document must not be disclosed, copied or reproduced in whole or in part without prior written permission from Aveo Engineering Group, s.r.o.
-
Page 2: Table Of Contents
Nubion INSTALLATION MANUAL AVE-N09PANSN-IM Issue 03 Table of Contents PART 0 MANUAL ADMINISTRATION ............3 0.1. D ................3 OCUMENT APPROVAL 0.2. A .............. 4 MENDMENT ECORD ROCEDURE 0.3. A ..............4 FFECTED AGES ROCEDURE PART 1 INSTALLATION DATA................ 5 1.1. -
Page 3: Part 0 Manual Administration
Nubion Taxi (15° x 47°) AVE-N09PANSNT-EWA Mod(2) Compiled by: 09. – Sep. - 2022 Petr Jaroš Engineer, Aveo Engineering Group, s.r.o. Approved by: 09. – Sep. - 2022 Georg Hartl Head of DO, Aveo Engineering Group, s.r.o. Page 3 of 12... -
Page 4: Amendment Record Procedure
0.2. Amendment Record Procedure The master copy of this document shall be kept electronically as a read only document under the control of Aveo Engineering Group, s.r.o. as Master Copy. ALL amendments to this manual will initiate a raise of issue. -
Page 5: Part 1 Installation Data
Nubion INSTALLATION MANUAL AVE-N09PANSN-IM Issue 03 Part 1 Installation data 1.1. Product Description The Nubion™ landing or taxi light is a high powered LED light use in GA and transport category aircraft. It has been designed to be lightweight and with a low power draw to meet the highest requirements of all certified aircraft. -
Page 6: Technical Specification
Nubion INSTALLATION MANUAL AVE-N09PANSN-IM Issue 03 1.5. Technical Specification Electronic specification - Ambient temperature (25°C): Operating voltage: 18-36V DC Primary input voltage: 28V DC Voltage protection: a. Over-voltage protection: 80V (1s) b. Over-voltage lockout: 38.5V DC c. Under-Voltage protection Reverse polarity protection: LED quantity: 6 pcs Performance:... -
Page 7: Wiring Chart
Nubion INSTALLATION MANUAL AVE-N09PANSN-IM Issue 03 1.7. Wiring Chart Use diagram below defining the wiring size depending on the current and the wire length. Make sure you add up the current for all connected lights. If current is not given, then divide the power by the voltage. Page 7 of 12... -
Page 8: Optic Simulation
Nubion INSTALLATION MANUAL AVE-N09PANSN-IM Issue 03 1.8. Optic Simulation Nubion LANDING (12°) PN: AVE-N09PANSNL-1WA Mod(2) 37431 Cd Nubion LANDING (24°) PN: AVE-N09PANSNL-2WA Mod(2) 12081 Cd Page 8 of 12... - Page 9 Nubion INSTALLATION MANUAL AVE-N09PANSN-IM Issue 03 Nubion TAXI (38°) PN: AVE-N09PANSNT-3WA Mod(2) 5977 Cd Nubion TAXI (55°) PN: AVE-N09PANSNT-5WA Mod(2) 3132 Cd Page 9 of 12...
-
Page 10: Equipment Limitation
18-36VDC. 1.10. Care and Cleaning of Lights When you receive your Aveo Engineering Aviation Lights, they will have been factory polished and ready to install on the aircraft. If the lights require a deeper cleaning, they should be polished with a quality lamb’s wool sheet and can also be used for deeper polishing. -
Page 11: Notes On Installation
Nubion INSTALLATION MANUAL AVE-N09PANSN-IM Issue 03 Warranty information as well as a cautionary note about power supply removal is enclosed with each package. 2. Remove the light from the package. Note that there are three (3) wires: Black – Negative lead Red –... -
Page 12: Rohs Compliance Statement
1.15. EU REACH Regulation (EC) No. 1907/2006 Aveo Engineering declares that no chemicals are produced and that none of the chemicals used during the production process or needed for the product maintenance or service, is listed on the current European Chemicals Agency’s Candidate list of Substances of Very High Concern for Authorization.
