INSTALLATION MANUAL

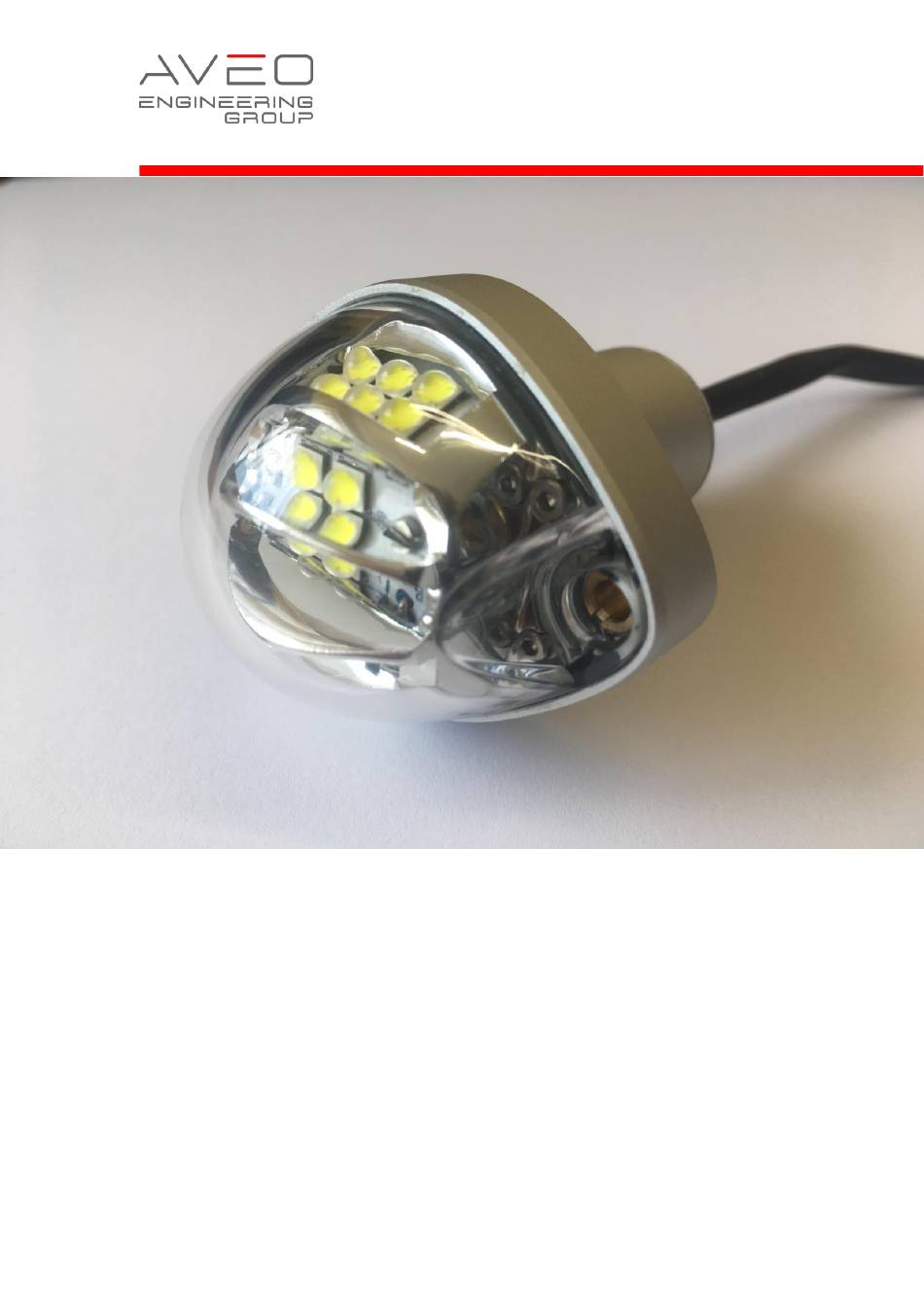

PosiStrobe Titania
© 2018
Aveo Engineering Group, s.r.o.
document must not be disclosed, copied or reproduced in whole or in part without prior written
Aveo Engineering Group, s.r.o.
permission from
in Table 02 unless otherwise agreed by
DOC.NO:AVE-PSPSYW-IM
All rights reserved. The information contained within this
Distribution of this document shall only be as stated
Aveo Engineering Group, s.r.o.
Advertisement
Table of Contents
Related Manuals for Aveo Engineering PosiStrobe Titania
Summary of Contents for Aveo Engineering PosiStrobe Titania
- Page 1 INSTALLATION MANUAL PosiStrobe Titania DOC.NO:AVE-PSPSYW-IM © 2018 Aveo Engineering Group, s.r.o. All rights reserved. The information contained within this document must not be disclosed, copied or reproduced in whole or in part without prior written Aveo Engineering Group, s.r.o. permission from Distribution of this document shall only be as stated Aveo Engineering Group, s.r.o.
-
Page 2: Table Of Contents
TECHNICAL DRAWING ................... 7 WIRING CHART ......................8 OPTICAL PERFORMANCE ..................9 EQUIPMENT LIMITATION ................... 10 CARE AND CLEANING OF YOUR AVEO ENGINEERING AVIATION LIGHTS .......................... 10 TESTING OF THE LIGHT BEFORE INSTALLATION ......... 10 NOTES ON INSTALLATION ................. 11... -
Page 3: Part 0 Manual Administration
This installation manual is applicable for part numbers: • PosiStrobe Titania AVE-PSPSYW-T01 Compiled by: 28. – Aug. - 2018 Petr Jaroš Engineer, Aveo Engineering Group, s.r.o. Approved by: 28. – Aug. - 2018 Georg Hartl Head of DO, Aveo Engineering Group, s.r.o. Page 3 of 11... -
Page 4: Amendment Record Procedure
0.2 Amendment Record procedure The master copy of this document shall be kept electronically as a read only document under the control of Aveo Engineering Group, s.r.o. as Master Copy. ALL amendments to this manual will initiate a raise of issue. -
Page 5: Posistrobe Titania
PosiStrobe Titania INSTALLATION MANUAL AVE-PSPSYW-IM 1. PosiStrobe Titania PosiStrobe Titania™ is the minimum EMI signature tail position and strobe light for the aviation industry. This light provides performance much above the required position and strobe per TSO standards. 2. OPERATING INSTRUCTIONS When installed on the aircraft, using the aircraft’s power (14 or 28 volts), the... -
Page 6: Control & Power Inputs
PosiStrobe Titania INSTALLATION MANUAL AVE-PSPSYW-IM 4. CONTROL & POWER INPUTS P/N: AVE-PSPSYW-T01 Pos/Strobe: +14V / +28V, Nav/Pos Yellow +14V / +28V, Anti-colision Black Common 28 return VRTN Blue Synchronization 5. TECHNICAL SPECIFICATION Dimensions: 56 mm x 45 mm 2.19” x 1.77”... -
Page 7: Technical Drawing
PosiStrobe Titania INSTALLATION MANUAL AVE-PSPSYW-IM 6. TECHNICAL DRAWING *dimensions in mm [inches] Page 7 of 11... -
Page 8: Wiring Chart
PosiStrobe Titania INSTALLATION MANUAL AVE-PSPSYW-IM 7. WIRING CHART Page 8 of 11... -
Page 9: Optical Performance
PosiStrobe Titania INSTALLATION MANUAL AVE-PSPSYW-IM 8. OPTICAL PERFORMANCE POSITION LIGHT Test performed at 28V. Polar coordinates, 0° is forward direction. Position H/V0. Full range 0-250cd STROBE LIGHT Test performed at 28V. Vertical plane at 180° horizontal point (rear). Effective candelas. -
Page 10: Equipment Limitation
CARE AND CLEANING OF YOUR AVEO ENGINEERING AVIATION LIGHTS When you receive your Aveo Engineering Aviation Lights, they will have been factory polished and ready to install on the aircraft. If the lights require a deeper cleaning, they should be polished with a quality lamb’s wool sheet and can also be used for deeper polishing. -
Page 11: Notes On Installation
PosiStrobe Titania INSTALLATION MANUAL AVE-PSPSYW-IM IMPORTANT NOTES: 1. Under no circumstances should any power supply other than a 9-36 VDC, or a 28 volt battery be used to test the light. Do not use: Battery chargers, battery back-up power devices, or other bench...
