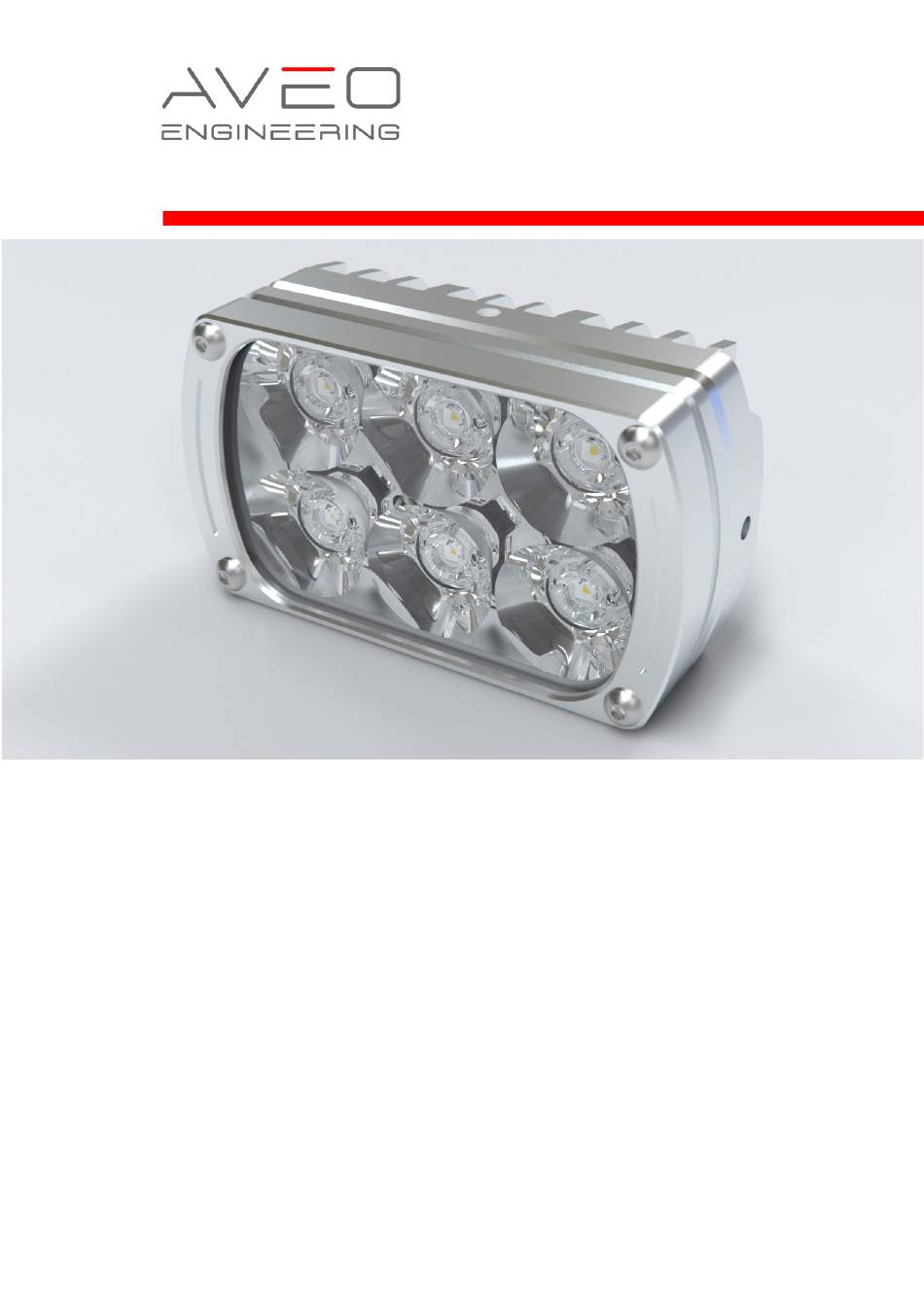

- Page 1 INSTALLATION MANUAL Nubion Plus DOC.NO:AVE-N09-IM © Aveo Engineering Group, s.r.o. All rights reserved. The information contained within this document must not be disclosed, copied or reproduced in whole or in part without prior written permission from Aveo Engineering Group, s.r.o.
-
Page 2: Table Of Contents
Nubion Plus INSTALLATION MANUAL AVE-N09-IM Issue 01 Table of Contents PART 0 MANUAL ADMINISTRATION ............3 ................3 OCUMENT APPROVAL .............. 4 MENDMENT ECORD PROCEDURE ..............4 FFECTED AGES ROCEDURE PART 1 INSTALLATION DATA ..............5 ..................5 RODUCT ..............5... -
Page 3: Part 0 Manual Administration
• Nubion Plus Taxi (25°) AVE-N09PANSNT-3WP • Nubion Plus Taxi (45°) AVE-N09PANSNT-5WP • Nubion Plus Taxi (35° x 55°) AVE-N09PANSNT-EWP Compiled by: 03. – Sep - 2021 Petr Jaroš Engineer, Aveo Engineering Group, s.r.o. Approved by: 03. – Sep - 2021 Georg Hartl Head of DO, Aveo Engineering Group, s.r.o. -
Page 4: Amendment Record Procedure
Amendment Record procedure The master copy of this document shall be kept electronically as a read only document under the control of Aveo Engineering Group, s.r.o. as Master Copy. ALL amendments to this manual will initiate a raise of issue. -
Page 5: Part 1 Installation Data

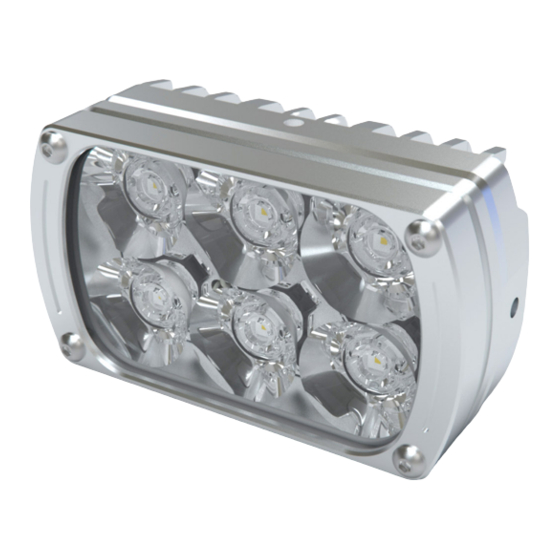

Installation data Product Info The Nubion Plus™ landing or taxi light is a high powered LED light use in GA and transport category aircraft. It has been designed to be lightweight and with a low power draw to meet the highest requirements of all certified aircraft. -
Page 6: Installation Schematic / Wiring Diagram
Nubion Plus INSTALLATION MANUAL AVE-N09-IM Issue 01 Installation Schematic / Wiring Diagram Page 6 of 16... -
Page 7: Control & Power Inputs
Nubion Plus INSTALLATION MANUAL AVE-N09-IM Issue 01 Control & Power Inputs Input Power, AWG 22 BLACK Power Return, AWG 22 GREEN/YELLOW Chassis, AWG 22 WHITE Master/Slave, AWG 24 BLUE Synchro, AWG 24 GREEN WigWag, AWG 24 Technical Specification Electronic specification - Ambient temperature (25°C):... - Page 8 Nubion Plus INSTALLATION MANUAL AVE-N09-IM Issue 01 Device RTCA/DO160 qualified: Environment Section Category Temperature / Altitude Temperature / Altitude Temperature Variation Humidity Operational Shock and Crash Safety Crash Safety Vibration U curve G H, curve P Vibration R curve E & E1 9.6.1...
-
Page 9: Technical Drawing
Nubion Plus INSTALLATION MANUAL AVE-N09-IM Issue 01 Technical Drawing *dimensions in mm [inches] Page 9 of 16... -
Page 10: Wiring Chart
Nubion Plus INSTALLATION MANUAL AVE-N09-IM Issue 01 Wiring Chart Use diagram below defining the wiring size depending on the current and the wire length. Make sure you add up the current for all connected lights. If current is not given, then divide the power by the voltage. -
Page 11: Optic Simulation
Nubion Plus INSTALLATION MANUAL AVE-N09-IM Issue 01 Optic Simulation Nubion Plus LANDING (8°) PN: AVE-N09PANSNL-1WP 150,000 cd Nubion Plus LANDING (15°) PN: AVE-N09PANSNL-2WP 60,000 cd Page 11 of 16... - Page 12 Nubion Plus INSTALLATION MANUAL AVE-N09-IM Issue 01 Nubion Plus TAXI (25°) PN: AVE-N09PANSNT-3WP 15,000 cd Nubion Plus TAXI (45°) PN: AVE-N09PANSNT-5WP 6,500 cd Page 12 of 16...
-
Page 13: Equipment Limitation
No light is released for sale without undergoing this extensive operational testing. When you receive the Nubion Plus light, and wish to test the function of the light prior to installation on your aircraft, please observe the following procedure: 1. -
Page 14: Notes On Installation
Nubion Plus INSTALLATION MANUAL AVE-N09-IM Issue 01 2. Remove the light from the package. Note that there are six (6) wires: Input Power BLACK Power Return GREEN/YELLOW Chassis WHITE Master/Slave BLUE Synchro GREEN WigWag 3. Testing the function of the light can be accomplished using a regular 14V/10A DC or 28V/5A DC power supply (not a battery charger). -
Page 15: Continued Airworthiness Information
1.13 Continued Airworthiness Information Periodic Inspection Procedure for Nubion Plus. The Nubion Plus light should always be checked for proper operation during preflight. This procedural information is already provided in all general aviation aircraft flight manuals. The lights should be visually inspected for general condition, proper operation, and correct installation at each annual and/or 100 hours inspection. - Page 16 Nubion Plus INSTALLATION MANUAL AVE-N09-IM Issue 01 maintenance or service, is listed on the current European Chemicals Agency’s Candidate list of Substances of Very High Concern for Authorization. Page 16 of 16...
