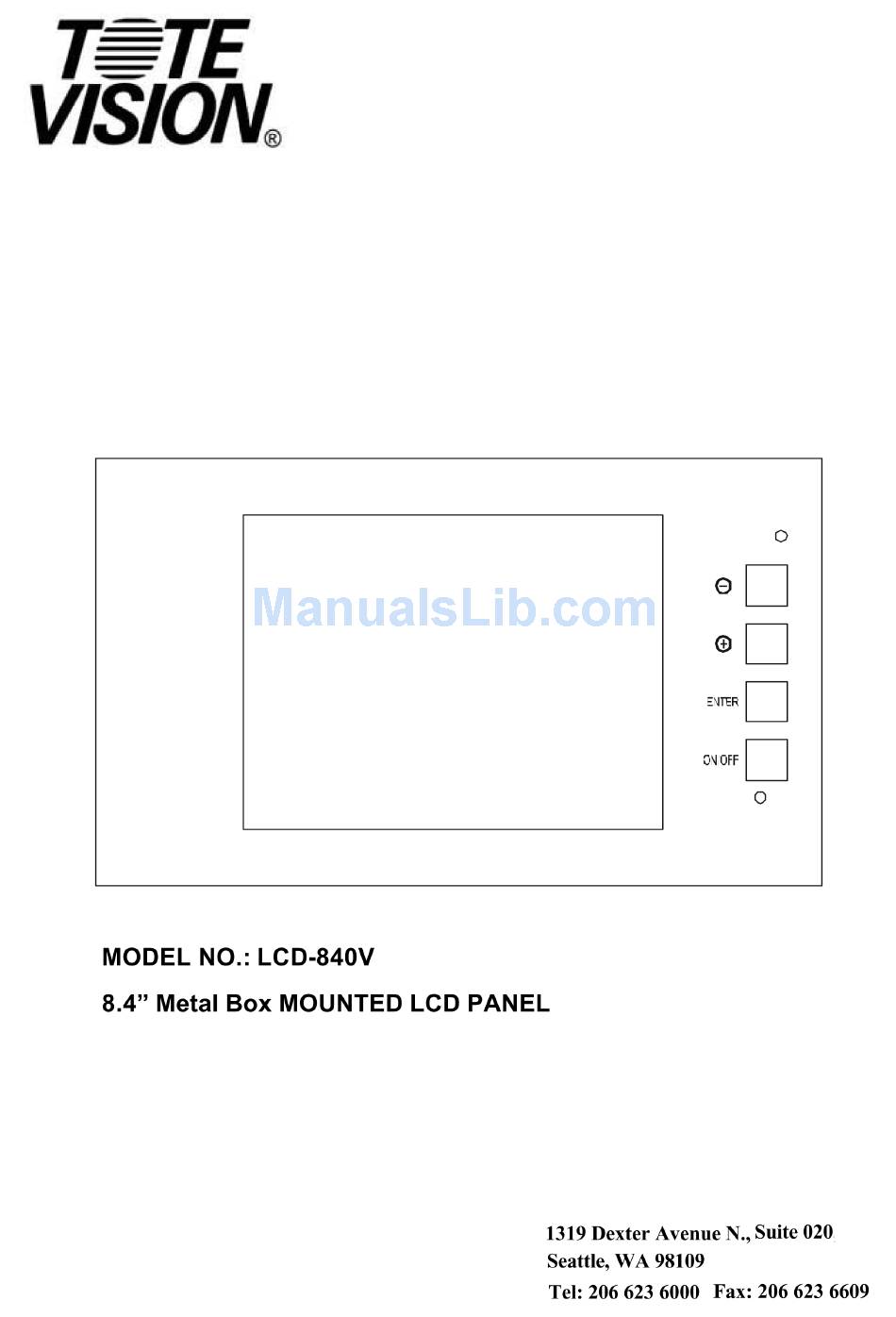

Tote Vision LCD-840V User Manual

8.4" metal box mounted lcd panle
Hide thumbs Also See for LCD-840V:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD-840V and is the answer not in the manual?

Questions and answers

Related Manuals for Tote Vision LCD-840V

Summary of Contents for Tote Vision LCD-840V

  • Page 2 KEY DEFINE: Œ UP: PRESS THIS BUTTON TO INCREASE OR DECREASE THE VALUE OF THE ADJUSTMENT FUNCTIONS. • DOWN: PRESS THIS BUTTON TO INCREASE OR DECREASE THE VALUE OF THE ADJUSTMENT FUNCTIONS. Ž ENTER: PRESS THIS BUTTON FOR MENU ADJUSTING, SELECTING THE MENU YOU WANT WITH “UP”...
  • Page 3 * CONTRAST: TO ADJUST THE WHITE COLOR LEVEL OF THE IMAGE. * BACK LIGHT: TO ADJUST THE BACK LEVEL OF THE PANEL * RECALL: WHEN YOU RUN THE FUNCTION, THE MONITOR WILL BE SETTING TO LAST STATUS OF THE SAVING VALUE * EXIT: RETURN TO LAST MENU 2.

  • Page 4: Exit Menu

    ---PRESS “ENTER” BUTTON TO ENTER THIS MODE ---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED ADJUSTMENT ITEM * RECALL ALL: WHEN YOU RUN THE FUNCTION, THE MONITOR WILL BE SETTING TO LAST * EXIT: RETURN TO LAST MENU 6. EXIT MENU...
  • Page 5 1. AUTO CONFIG ---PRESS “ENTER” BUTTON TO ENTER THIS MODE ---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED ADJUSTMENT ITEM * AUTO CONFIG: SELECT “YES” TO MAKE THE MONITOR HAVE THE BEST EFFICIENCY * EXIT: RETURN TO LAST MENU 2. POSITION ---PRESS “ENTER”...
  • Page 6 * CLOCK: TO ADJUST VIDEO SAMPLING CLOCK * PHASE: TO ADJUST THE NOISE OF THE IMAGE * RECALL: WHEN YOU RUN THE FUNCTION, THE MONITOR WILL BE SETTING TO LAST STATUS OF THE SAVING VALUE * EXIT: RETURN TO LAST MENU 5.
  • Page 7 Image Mode Select Dithering Select Input Exit Information Recall Recall All Exit Exit Menu * EXIT: RETURN TO LAST MENU 7. IMAGE ---PRESS “ENTER” BUTTON TO ENTER THIS MODE ---PRESS “UP” OR “DOWN” BUTTON TO SELECT THE DESIRED ADJUSTMENT ITEM * MODE SELECT: CHANGE DOS MODE RESOLUTION 640 x 400 OR 720 x 350 OR 720 x 400 * DITHERING: N/A...

  • Page 8: Specifications

    OPERATING TEMPERATURE: STORAGE TEMPEATURE: DC POWER SUPPLY: POWER CONSUMPTION: CONNECTORS: RESPONSE: DIMENTIONS: LCD-840V 8.4” (DIAGONAL) 800 (H) x 600 (V) 0.213 (H) x 0.213 (V) 170.4 (H) x 127.8 (V) R.G. B.VERTICAL STRIPE 250 NIT TYP NTSC / PAL (DUAL.CAPABLITY) / SECAM / NTSC4.43...
