M2-W6010-48GT4X Switch
Hardware Installation and Reference Guide
Version V1.0
copyright © 2023 Micas

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2-W6010-48GT4X and is the answer not in the manual?

Questions and answers

Related Manuals for Micas M2-W6010-48GT4X

Summary of Contents for Micas M2-W6010-48GT4X

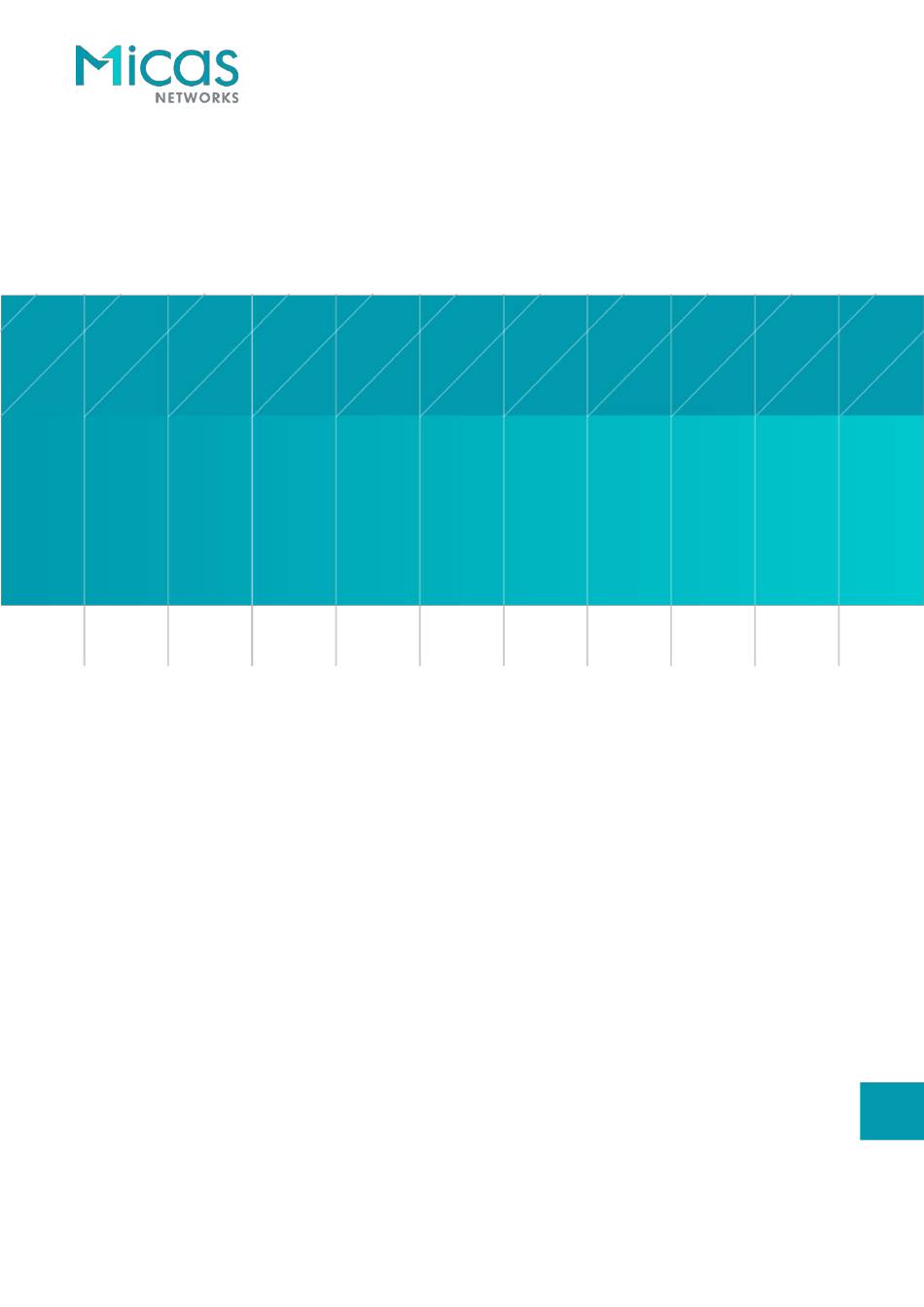

  • Page 1 M2-W6010-48GT4X Switch Hardware Installation and Reference Guide Version V1.0 copyright © 2023 Micas...
  • Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Micas Networks website. Micas Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
  • Page 3 Appendix A "Connector and Connection Media"  Appendix B “Lightening Protection”  Appendix C “Cabling Recommendations”  Appendix D “Site Selection”  Obtaining Technical Assistance  Micas Networks Website: https://www.micasnetworks.com/  Technical Support Website: http://www.micasnetworks.com/support  Case Portal: http://www.micasnetworks.com/case  Community: http://www.micasnetworks.com/company/contact...
  • Page 4 Related Documents Documents Description Describes network protocols and related mechanisms that supported by the Configuration Guide product, with configuration examples. Describes the related configuration commands, including command modes, Command Reference parameter descriptions, usage guides, and related examples. Symbol Conventions Means reader take note. Notes contain helpful suggestions or references. Means reader be careful.

  • Page 5: Product Overview

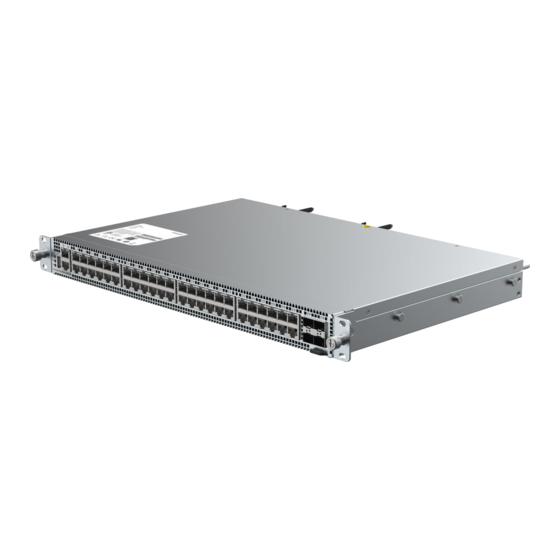

    M2-W6010-48GT4X switch is new generation of high-density management network switches independently developed by Micas Networks M2-W6010-48GT4X supports 48 x 1000M copper ports and 4 x 10G SFP ports. The table below lists the current configuration of the M2-W6010-48GT4X switch whitebox switches.
  • Page 6 43.1 mm x 300 mm x 440 mm, 1 RU x D) The M2-W6010-48GT4X switch are class A products, which may cause radio interference in the living environment. Users are required to take proper anti-interference measures. Les commutateurs de la série M2-W6010-48GT4X sont des produits de classe A pouvant provoquer des interférences radio dans les alentours.
  • Page 7 Hardware Installation and Reference Guide Front Panel Figure 1- 2 Front Panel of the M2-W6010-48GT4X Switch Description: MGMT port link indicator 10G SFP port indicator ① ❶ MGMT port 10G SFP port ② ❷ MGMT port ACT indicator Asset label ③...
  • Page 8 Asset Management Label The asset management label is located in the lower right corner of the front panel of the M2-W6010-48GT4X switch . This label is removable and can be taken out of the device. Customers can attach information (such as the asset name, type, code, and registration date) to the label, to improve the speed and accuracy of asset management.
  • Page 9 Ethernet port of a PC.  M2-W6010-48GT4X supports 48 x 1000M network ports, and 4 x 10G SFP ports. The 1000M network ports support 100 m network cables, and the four 10G SFP ports support optical modules and DAC cables.
  • Page 10 Heat Dissipation Solution The M2-W6010-48GT4X switch work at an ambient temperature of 0°C to 45°C. The heat design needs to ensure the reliability, safety and maintainability of the devices under this environment. The M2-W6010-48GT4X switch use fans for forced convection so that the devices can work properly under specified environment.
  • Page 11 Hardware Installation and Reference Guide Product Overview Figure 1- 6 Air Flow Ventilation and Convection of Fans in the M2-W6010-48GT4X-RA switch Rear-to-Front ventilation channel When placing the chassis, reserve sufficient space (more than 20 cm) in front of and at the back of the chassis to facilitate air ventilation.

  • Page 12: Preparation Before Installation

    2 Preparation before Installation 2.1 Safety Precautions To avoid body injury and equipment damage, please carefully read the safety precautions before you install the M2-W6010-48GT4X switch switch. The following safety precautions do not cover all possible dangers. 2.1.1 Installation Safety ...
  • Page 13 2.1.4 Electrostatic Discharge Damage Precautions The M2-W6010-48GT4X switch gives a great consideration to prevent electrostatic discharge damage and adopts multiple measures. But if the electrostatic exceeds certain limit, it can still cause great damages to the circuitry and the equipment.
  • Page 14 Install the M2-W6010-48GT4X switch indoor. To ensure normal operation and a prolonged service life of the equipment, the installation site must meet the following requirements. 2.2.1 Rack Mounting Requirements Make sure the cabinet complies with the following conditions if the M2-W6010-48GT4X switch is installed in the cabinet: - 10 -...
  • Page 15 2.2.2 Ventilation Requirements For the M2-W6010-48GT4X switch switch, leave sufficient space in the front and at the back of the chassis (at least 20cm) for ventilation. After various cables are connected, bundle the cables or place them in the cable management bracket to avoid blocking air inlets.
  • Page 16 2.2.5 System Grounding Requirements A good grounding system is the basis for the stable and reliable operation of the M2-W6010-48GT4X switch switch. It is the key to prevent lightning stroke and resist interference. Please carefully check the grounding conditions on the installation site according to the grounding requirements, and perform grounding properly as needed.
  • Page 17 Hardware Installation and Reference Guide Preparation before Installation 2.2.6 EMI Consideration Various interference sources, from either outside or inside the equipment or application system, affect the system in the conductive ways such as capacitive coupling, inductive coupling, and electromagnetic radiation. There are two types of electromagnetic interferences: radiated interference and conducted interference, depending on the type of the propagation path.
  • Page 18 Fiber optic cleaning Tools Air-laid paper, fiber end microscope Meter Multimeter, errormeter, optic-power meter M2-W6010-48GT4X switch is not shipped with a tool kit. You need to prepare a tool kit by yourself. 2.5 Unpacking and Checking Goods Checklist Chassis Carton...

  • Page 19: Product Installation

    Hardware Installation and Reference Guide Preparation before Installation 3 Product Installation M2-W6010-48GT4X switch must be used and fixed in the room. Make sure you have carefully read chapter 2, and be sure that the requirements set forth in chapter 2 have been met.
  • Page 20 Hardware Installation and Reference Guide Preparation before Installation  The qualified power supply and current required are available at the installation location.  The related network cables have already been deployed at the installation location. 3.3 Cabinet Installation Precautions When you install the cabinet, pay attention to the following requirements: ...
  • Page 21 Preparation before Installation Before mounting M2-W6010-48GT4X switch into the cabinet, first verify that the front and back brackets of the cabinet are at the right locations. If the bracket is too far forward, the front panel of the equipment may be too close to the front door, so that the front door cannot be closed when the equipment is connected with network cables and pigtail fibers.
  • Page 22 Hardware Installation and Reference Guide Preparation before Installation (1) Securing the Guide Rail to the Rear Post Position the guide rail at the desired level on the rear rack post and secure one end of the rail to the rear post using screws (see Figure 1).
  • Page 23 Hardware Installation and Reference Guide Product Installation Removing the Switch from a Four-Post Rack (1) Pulling out the Switch Remove the quick-release thumb screws and gently pull the switch out of the rack (see Figure 1). (2) Removing Three-Pin Flange from the Front Post Press the rail clip on the rack plug of the guide rail.
  • Page 24 Pour garantir la sécurité de la personne et de l'appareil, le commutateur Whitebox Switch de la série M2-W6010-48GT4X doit être correctement mis à la terre. La résistance de mise à la terre doit être inférieure à 1Ω. A service person should check whether or not the socket-outlet from which the equipment is to be powered provides a reliable connection to the building protective earth.
  • Page 25 Hardware Installation and Reference Guide Product Installation The cross-sectional area of protective earthing conductor should be at least 2.5 mm (12 AWG). La section du conducteur de protection doit être d au moins 2,5 mm (12 AWG). 3.6 Connecting the Cables of the Management Serial Ports Simple Connection Steps Connect the RJ45 connector to the Console interface of the management engine module with shipped console cable, and connect the DB9 connector to the NM or control terminal.
  • Page 26 Hardware Installation and Reference Guide Product Installation On the both sides of the chassis, fasten the fibers and twisted pairs to the cabinet cable management ring or cabling chute. For the power cables, you should bind them closely along the chassis downward in a straight line wherever possible.

  • Page 27: System Debugging

    Hardware Installation and Reference Guide Product Installation 4 System Debugging 4.1 Establishing the Configuration Environment Establishing the Configuration Environment Connect the PC to the console port of the switch through the console cable, as shown in Figure 4-1. Figure 4- 1 Schematic diagram of the configuration environment Connecting the Console Cable Connect one end of the DB-9 jack of the console cable to the serial port of the PC.
  • Page 28 Hardware Installation and Reference Guide Product Installation Enter the name of the new connection and click OK. A window appears as shown in Figure 4-3. In the column of Connect Using field, select the serial port you want to use. Figure 4- 3 After the serial port is selected, please click OK.
  • Page 29 Hardware Installation and Reference Guide Product Installation After the serial port parameters are set, click OK to enter hyper terminal window. 4.2 Power-on Startup Checking before Power-on  Check if the switch is fully grounded.  Check if the fan module and the power supply module are correctly installed. ...

  • Page 30: Monitoring And Maintenance

    5 Monitoring and Maintenance 5.1 Monitoring Indicator When the M2-W6010-48GT4X switch is running, users can monitor the status of host and each module by inspecting corresponding indicators.  When the SYS indicator is yellow, it means the system has a fault. It may affect the device performance, but the system can continue working.
  • Page 31 Hardware Installation and Reference Guide System Debugging The built-in lithium batteries can support the real time clock of the M2-W6010-48GT4X switch without external power supply. Please contact the technical support for replacing the lithium battery. Please make sure that the battery is in place with good contact to the pins and meet safety requirement.

  • Page 32: Troubleshooting

    Hardware Installation and Reference Guide System Debugging 6 Troubleshooting 6.1 General Installation Troubleshooting - 28 -...
  • Page 33 Check whether the configuration of the serial port on the hyper terminal is the same as that described in M2-W6010-48GT4X switch Software Configuration Guide. If not, modify the serial port configuration parameters. If there is still no serial port printed information, please contact Micas Customer Service Department for technical support.
  • Page 34 Check whether the module is inserted correctly. If the newly-inserted module still cannot be powered on even though the checking is ok, please contact Micas Customer Service Department for technical support. Fault 7: The link cannot be set up between fiber interfaces [Fault Description] The system runs normally.

  • Page 35: Appendix A Connectors And Connection Media

    Hardware Installation and Reference Guide Monitoring and Maintenance Appendix A Connectors and Connection Media 10GBASE-T/1000BASE-T/100BASE-TX Port 10GBASE-T/1000BASE-T/100BASE-TX is a port that supports self-adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. 10GBASE-T complies with IEEE 802.3an standard, and the supported cables and cabling distances are listed in the following table.
  • Page 36 Hardware Installation and Reference Guide Troubleshooting The 1000BASE-T complies with IEEE 802.3ab standard, and uses up to 100m of 100-ohm CAT5, CAT5E or twisted pairs with higher standard. The 1000BASE-T port uses four pairs of wires for transmission, all of which must be connected. Figure A-1 shows the connection of the twisted pairs used by the 1000BASE-T port: Figure A-1 Four twisted pairs of the 1000BASE-T In addition to the above cables, the 100BASE-TX can use up to 100m of 100-ohm CAT5.
  • Page 37 Hardware Installation and Reference Guide Troubleshooting For the fiber ports, select single-mode or multiple-mode fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure A-4: Figure A-4 Schematic Diagram for Fiber Connection...

  • Page 38: Appendix B Lightning Protection

    Hardware Installation and Reference Guide Troubleshooting Appendix B Lightning Protection Installing AC Power Arrester (lightning protection cable row) The external lightning protection cable row should be used on the AC power port to prevent the switch from being struck by lightning when the AC power cable is introduced from the outdoor and directly connected to the power port of the switch.
  • Page 39 Hardware Installation and Reference Guide Appendix A Connectors and Connection Media Installing the Ethernet Port Arrester During the switch usage, the Ethernet port arrester should be connected to the switch to prevent the switch damage by lightning before the outdoor network cable connects to the switch . Tools: Cross or straight screwdriver, Multimeter, Diagonal pliers Installation Steps: Tear one side of the protection paper for the double-sided adhesive tape and paste the tape to the framework of the...
  • Page 40 Hardware Installation and Reference Guide Appendix A Connectors and Connection Media You should pay attention to the following conditions during the actual installation to avoid influencing the performance of the Ethernet port arrester:  Reversed direction of the arrester installation. You shall connect the external network cable to the “IN” end and connect the switch Ethernet port to the “OUT”...

  • Page 41: Appendix C Cabling Recommendations

    Appendix C Cabling Recommendations When the M2-W6010-48GT4X switch is installed in standard 19-inch cabinets, the cables are tied in the binding rack on the cabinet by the cable management bracket, and top cabling or bottom cabling is adopted according to the actual situation in the equipment room.
  • Page 42 Hardware Installation and Reference Guide Appendix B Lightning Protection  Cables of different types (such as power cords, signal cables, and grounding cables) should be separated in cabling and bundling and no mixed bundling is allowed. When they are close, crossover cabling can be adopted. In the case of parallel cabling, maintain a minimum distance of 30mm between power cords and signal cables.
  • Page 43 Hardware Installation and Reference Guide Appendix B Lightning Protection  Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the cabinet or cabling slot. The proper position indicates a position that will not affect equipment running or cause equipment damage or cable damage during commissioning.
  • Page 44 Hardware Installation and Reference Guide Appendix B Lightning Protection Figure D-4 Cable fastening  The hard power cable should be fastened at the terminal connection area to prevent stress on terminal connection and cable.  Do not use self-tapping screws to fasten terminals. ...
  • Page 45 Hardware Installation and Reference Guide Appendix C Cabling Recommendations For wiring terminal blocks (such as air switches) of the cold pressing terminal type, the metal part of the cold pressing terminal should not be exposed outside the terminal block when assembled. - 41 -...

  • Page 46: Appendix D Site Selection

    Hardware Installation and Reference Guide Appendix C Cabling Recommendations Appendix D Site Selection  The machine room should be at least 5km away from the heavy pollution source such as the smelter, coal mine and thermal power plant, 3.7km away from the medium pollution source such as the chemical industry, rubber industry and electroplating industry, and 2km away from the light pollution source such as the food manufacturer and leather plant.
